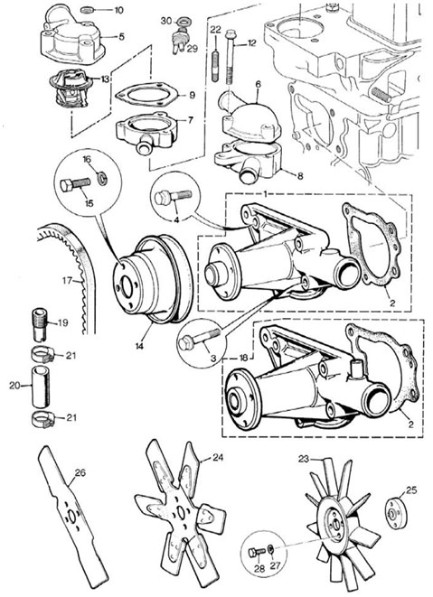

Classic Mini Cooper Water Pump & Thermostat - Pre 1996 Not MPI
Records - of
# |
Part No |
Qty |
Description |
|---|---|---|---|
| 1 | GWP187 | 1 | Water pump without by pass outlet Use GWP154 |
| 1 | GWP154MS | 1 | Water Pump No Bypass - Aftermarket |
| 2 | 88G215 | 1 | Gasket for water pump |
| 2 | GUG705555GM | 1 | Gasket for water pump Genuine |
| 3 | BH605141 | 2 | Bolt 5/16”UNF x 1 3/4” long Use HF0514 |
| 3 | DAM7758 | 2 | 5/16 UNF X 1.75" Bolt Alternative to HF0514 |
| 4 | SH605101 | 2 | Bolt 5/16”UNF x 1 1/4” long Shouldered bolt TAM1178 |
| 5 | PEQ10019 | 1 | Thermostat housing HIF44 Carb Cooper Large bore outlet |
| 6 | 12G103 | 1 | Thermostat housing 998cc and SPI |
| 6 | PEQ10010 | 1 | Thermostat housing 1275cc with HIF38 carb Has 10mm sensor hole |
| 7 | PEM10036 | 1 | Sandwich plate HIF44 Carb Cooper Drill and tap for appropriate sensor |
| 8 | PEG10002 | 1 | Sandwich plate, SPI and carb models Except HIF44 Cooper |
| 9 | GTG101 | 2 | Thermostat and Sandwich plate gasket |
| 9 | GUG705558GM | 2 | Thermostat and sandwich plate gasket Genuine |
| 10 | WL2051 | 3 | Plain washer 5/16” |
| 11 | NP1051 | 3 | Plain nut 5/16”unf |
| 12 | DAM7760 | 3 | Bolt, housings and plate to head CHS2524 alternative stud |
| 12 | C-STR284 | 1 | Bolt set, as above but in stainless steel Alternative |
| 13 | GTS102 | 1 | Thermostat 160 Degree |
| 13 | GTS104 | 1 | Thermostat 180 Degree |
| 13 | GTS106 | 1 | Thermostat 190 Degree |
| 14 | CAM6408 | 1 | Water pump pulley 4.75” diameter |
| 14 | CAM6239 | 1 | Water pump pulley 4.2” diameter Use CAM116 |
| 14 | CAM6408A | 1 | Oversize Water Pump Pulley, Aluminum 4.75" |
| 15 | GFK5179 | 4 | Setscrew 1/4”unf 3/4”long Was SH604041 |
| 16 | GHF331 | 4 | Spring washer 1/4” |
| 17 | 9.5X838 | 1 | Fanbelt cogged type 838mm (33") long |
| 17 | 9.5X825 | 1 | Fanbelt cogged type 825mm (32.5") long |
| 17 | 9.5X838 | 1 | Fanbelt cogged type 838mm (33") long |
| 17 | C-AEA539 | 1 | Competition short belt - Small Pulley With no charging system |
| 17 | GCB10725 | 1 | For use with large CAM6408 water pump pulley and NO charging system |
| 17 | GCB10863 | 1 | Classic Mini Competition Fanbelt When C-AEA535 & CAM6239 Fitted |
| 18 | GWP134-P | 1 | Various Water Pumps With and Without Bypasses |
| 19 | 12A2075 | 1 | By pass adaptor for cylinder head Only when GWP134 fitted |
| 20 | 12A1093MS | 1 | By pass fluted soft rubber easy fit hose kit Bends for fitment |
| 20 | GZA2083 | 1 | Fluted Silicone Bypass Hose Use GZA2083S |
| 20 | AEG484 | 1 | By pass solid rubber hose 1275cc |
| 20 | C-GZA2083 | 1 | By pass hose in long life blue silicon Cut as required for 998cc |
| 21 | 3H2963 | 2 | Bypass hose clamp Use CC6 |
| 22 | CHS2515 | 3 | Thermostat stud 5/16” UNF x 1 15/16” long |
| 23 | 12G1305 | 1 | Plastic fan blade narrow fins, use 12G2129 Use 12G2129 |
| 23 | 12G2129 | 1 | Plastic fan blade Genuine |
| 24 | 2A998 | 1 | Metal 6 blade fan for hot climates Better cooling |
| 25 | PGX10001 | 1 | Spacer to clear timing cover 11.6mm wide |
| 25 | 12A312 | A/R | Spacer to clear timing cover 4.1mm wide |
| 26 | 2A997 | 1 | Metal single fan blade use 2 for 4 blade fan |
| 27 | GHF331 | 4 | Spring Washer 1/4” |
| 28 | SH604091 | 4 | Bolt 1/4” unf 11/8” long for PGX10001 was CAM6239 No Longer Available |
| 28 | GFK5180 | 4 | Bolt 1/4” unf 1” long for 12A312 spacer Use HF0408 |
| 29 | MAQ10002 | 1 | Thermostatic vacuum switch (fits in thermostat housing) HIF38 Carb |
| 30 | MAW10001 | 1 | Washer for MAQ10002 |
