Classic Mini Cooper 998cc, 1981 on, ' A ' Plus Block

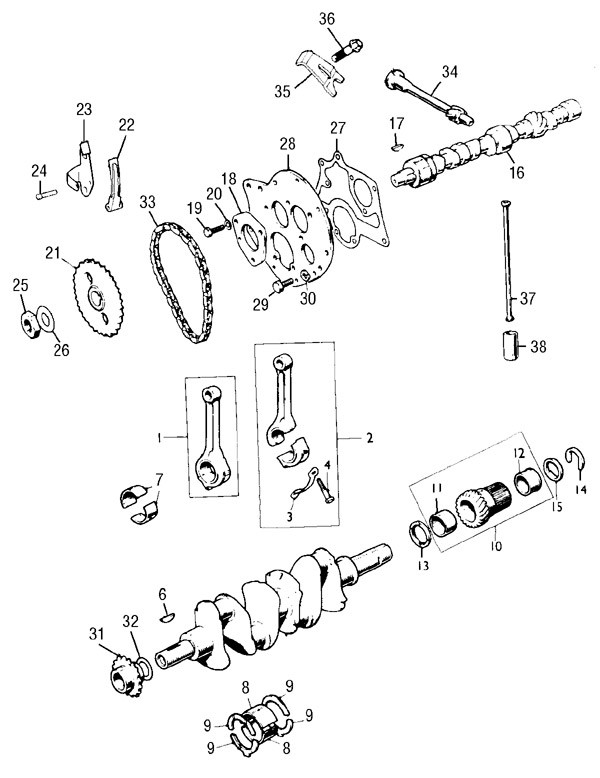

MINI Catalog Page 2-11
Records - of

#

Part No

Qty

Description

12A1997 2
Connecting rod number 2 and 4
1985 on, press fit gudgeon pin (piston has no circlips)
12G123 2
Connecting rod number 2 and 4
12G126 2
Connecting rod number 1 and 3
12A1999 2
Connecting rod number 1 and 3
2A660 4
Locktab, deleted when CAM6126 fitted
Deleted after 1981
CAM6126 1
ARP Rod Bolts
BEB-08 High-grade
BHM1436 1
Crankshaft, 8G2733 fitted until 1984
6K836 1
Crankshaft keyway
VP572 1
Con rod bearings
Also in +10/20/30/40 o/size
VP91885 1
Main bearing (center locating tang) 1985 on
Also in +10/20 oversize
VP733 1
Main bearing, locating lug on edge of both halves
Also in +10/20/30/40 o/size
VPW81 1
Thrust washer set
Also in 03/30 thou oversize
10  22A1493 1
Primary gear (24 teeth), old type
10  DAM8888 1
Primary gear (29 teeth), A plus
11  DAM8887 1
Front bush, was 22G401
12  22G109 1
Bush rear
13  22A321 1
Thrust washer 2.79-2.84mm (.110-112")
These shims are used to give correct end float of the primary gear which is 3-6 thou. Also check 22A319 & 88G459 for wear.
13  22A322 1
Thrust washer 2.84-2.89mm (.112-114")
13  22A323 1
Thrust washer 2.89-2.94mm (.114-116")
13  22A324 1
Thrust washer 2.94-2.99mm (.116-118")
13  22A450 1
Thrust washer 2.99-3.04mm (.118-120")
14  22A319 1
Thrust washer U clip
15  88G549 1
Backing ring
16  CAM6267 1
Camshaft, 99H/B83P/B85P/D83P/E22
LC engine
16  CAM4717 1
Camshaft, 99H/B81P/B82P/D80P/D81P/D82P/E20/E21
HC engine
17  WKN505 1
Camshaft key
18  AHU2379 1
Camshaft locating plate
19  GHF117 3
Locating plate bolt
20  GHF321 3
Locating bolt shakeproof washer
21  12G4337 1
Camshaft gear
22  12G2621 1
Tensioner pad
23  12G2628 1
Tensioner mounting plate
24  12G2629 1
Tensioner pin
25  6K629 1
Camshaft nut
26  2A759 1
Locktab
27  CAM4700 1
Front plate gasket
28  12G2626 1
Front plate
29  GHF120 5
Bolt for plate to block
30  GHF332 5
Lock washer
31  8G725 1
Crankshaft gear
32  6K628 1
Crank gear shim washer
33  3H2127 1
Timing chain
34  12G3560 1
Distributor drive spindle
35  613857A 1
Distributor retaining plate
36  CAM6105 1
Retainer screw
37  2A14 8
Push rod
38  2A13 8
Cam follower
38  AEG584 1
Cam follower with hole
High-grade
