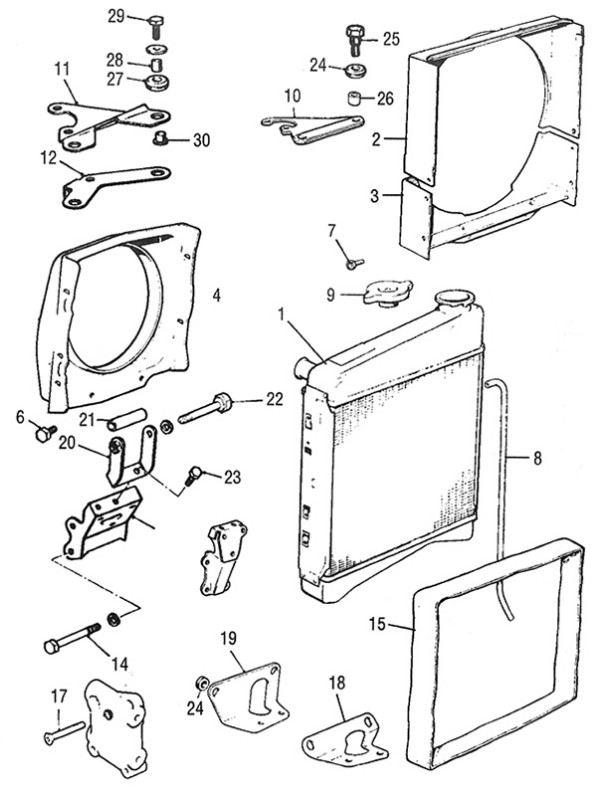

Classic Mini Cooper Radiator & Fittings
Records - of
# |
Part No |
Qty |
Description |
|---|---|---|---|
| 1 | ARC1106 | 1 | Radiator (2 rows of cores) Mini 850/1000 |
| 1 | ARP2000 | 1 | Radiator (3 rows of cores) Standard |
| 1 | C-ARA4444 | 1 | Radiator (4 rows of cores) for hot countries Better cooling |
| 1 | C-ARA4442 | 1 | Radiator (Special 2 row) for hot climates Best Cooling |
| 1 | C-ARA4443 | 1 | Radiator (Special 2 row) with thermostat switch recess in base 12A G03/4 May 1992 on |
| 1 | PCC10339B | 1 | Late radiator with thermostat switch recess in base T.B.I. |
| 1 | ERA1159 | 1 | Radiator (with take off for ERA1160 auxiliary radiator) ERA Turbo |
| 2 | ARA2768 | 1 | Top cowl, NLA |
| 3 | ARA2769 | 1 | Austin Mini Radiator Cowl Assembly Complete Up-to 1974 |
| 3 | ARA2770 | 1 | Classic Mini 2-Piece Radiator cowl assembly thru 1971, Cooper & S Cooper, Cooper ‘S’ only |
| 4 | ARP1068 | 1 | One piece cowling 1974-on Available used, U/ARP1068 |
| 6 | SH604031 | A/R | Radiator to cowl screws - also Front Wheel Cylinder Screw |
| 7 | ARA1117 | A/R | Original PK screw on early radiators, pre 1974 Not for ARP2000 |
| 8 | GRH1001M | 1 | Overflow pipe rubber 1 metre length only |
| 9 | GRC101 | 1 | Radiator cap 7lb pressure Long neck, standard |
| 9 | GRC102 | 1 | Radiator cap 7lb pressure Short neck |
| 9 | GRC105 | 1 | Radiator cap 10lb pressure Cooper |
| 9 | GRC110 | 1 | Radiator cap 15lb pressure All 1976 on |
| 9 | GRC111 | 1 | Radiator cap 13lb pressure All ‘S’ & Mini 1969-76 |
| 10 | 12A201 | 1 | Top radiator bracket, CWE 850cc/998cc to 1974 |
| 10 | 12G617 | 1 | Top radiator bracket 1275’s |
| 10 | 12G323 | 1 | Top radiator bracket 970/1070cc |
| 10 | 12G2453 | 1 | Top radiator bracket, uses 11G227 grommet 1275GT |
| 11 | CAM4619 | 1 | Top radiator bracket on one piece cowl 850/998cc, 1980 on |
| 11 | CAM4620 | 1 | Top radiator bracket on one piece cowl Clubman 998cc |
| 11 | CAM4621 | 1 | Top radiator bracket on one piece cowl, use 12G2453 1275GT |
| 11 | CAM4622 | 1 | Top radiator bracket on one piece cowl Mini 998/Sweden Canada |
| 12 | PCU10135 | 1 | Top radiator bracket, uses 11G227/CAM4414 New Coopers, 1300cc |
| 12 | ERA1186 | 1 | Top radiator bracket Turbo |
| 13 | 12A361 | 1 | Classic Austin Mini Bracket Transmission To Radiator (not numbered in diagram - located under part #20) |
| 14 | HBZ534 | 2 | Long bolt for 12A361 bracket to gearbox |
| 15 | 14A7286 | 1 | Radiator to body seal Up to 1972 |
| 16 | 12G1318 | 1 | Adaptor plate (not numbered in diagram - located to the right of part #17) |
| 17 | 12G1319 | 1 | Screw, for adaptor plate |
| 18 | 12A293 | 1 | Split cowl lower radiator bracket, when 12A361 fitted CWE, Coopers |
| 19 | 22A29 | 1 | Split cowl lower radiator bracket, when 22A30 fitted CWE, 850/998cc Mini |
| 19 | 12G2458 | 1 | Split cowl lower radiator bracket, when 22A30 fitted Clubman 998cc |
| 19 | 12G3641 | 1 | Split cowl lower radiator bracket, when 12A361 fitted Clubman 998/1275GT |
| 20 | 12A2153 | 1 | Single cowl lower radiator bracket, when 12A361 All 1974 on |
| 21 | ARP1073 | 1 | Spacer for 12A2153 bracket |
| 22 | 12G4270 | 1 | Bolt for cowl to bracket |
| 23 | SH605051 | 2 | Scew to bracket |
| 24 | 11G227 | 37656 | Upper and lower radiator grommet on 2 piece cowl Plus top 1990 on |
| 25 | 11G228 | 2 | Original shouldered bolt |
| 25 | GHF120 | 2 | Plain bolt to go with 12A1985 when required |
| 26 | 12A1985 | 2 | Sleeve only required with GHF120 to replace 11G228 |
| 27 | CAM4414 | 2 | Upper radiator bracket grommet with one piece cowl 1974 to 1990 |
| 28 | CAM4415 | 2 | Sleeve for CAM4415 grommet 1974 on |
| 29 | GHF117 | 1 | Bolt when using CAM4415 sleeve 1974 on |
| 30 | CAM4618 | 1 | Rubber locating bush 1974 to 1990 |
