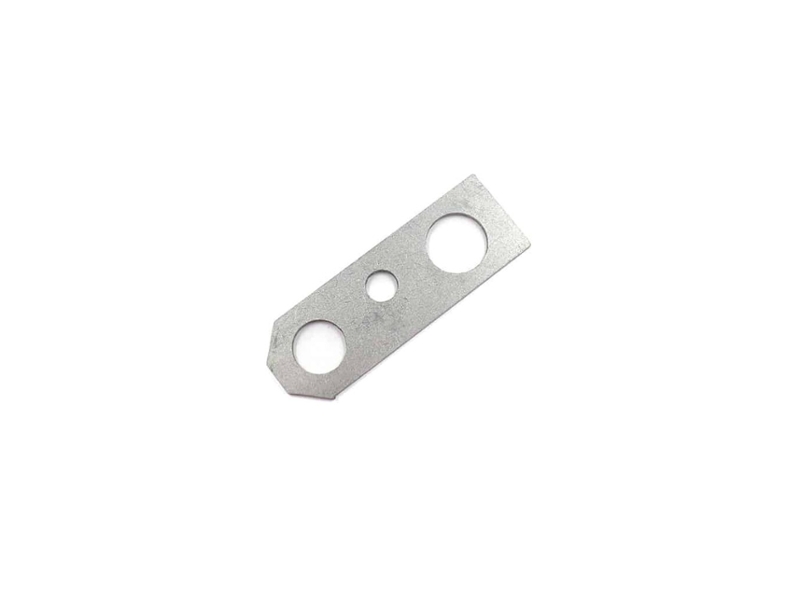

Classic Austin Mini Cylinder Head Rocker Shaft Pedestal Shim .090 Thick

Classic Austin Mini Cylinder Head Rocker Shaft Pedestal Shim .090 Thick

Classic Austin Mini Cylinder Head Rocker Shaft Pedestal Shim .090 Thick
Part No: C-2A516
This item is not available.
Fits the following:
Classic Mini
Sprite & MG Midget
Morris Minor
To maintain proper rocker assembly geometry it is imperative that the distance from the camshaft to the top surface of the cylinder head be kept as near as possible to original. You'll note that if the block or cylinder head have been surfaced the pushrods now effectively rise further even in the "down" position. This does not give you more lift, in fact in severe cases it will reduce lift, and in any case it will increase wear and noise. The easy and only solution to this dilemma is to raise the rocker assembly by shimming the rocker pedestals. These shims are .090" thick and can be stacked to the height necessary. Sold individually. Will fit all A series motors.
Loading...
Loading...
Loading...
Related Technical Articles:
Classic Mini Cooper rockers, push rods and more
Created: December 21, 2015
When you are trying to build a motor to get the ultimate of performance you often optimize the life expectancy of the entire assembly. One such area centers around the rocker assembly. In general the rockers are part of the process that translates the lobe of the rotating camshaft to the vertical deflection needed to open the valves on the cylinder head.
Spridget Performance Parts
Created: December 12, 2013
Spridget Performance Parts
