This is a classic hot street camshaft grind from Dema Elgin, ideal for the Autocrosses or occasion track days. Best performance is achieved with a uprated cylinder head but will work great on a stock cylinder head with 1.4" intake valves. Improved RPM midrange performance will be most notable. 284/284 DURATION 235/235 DURATION @ .50 CAM LIFT .290/.290 CAM IN/EX VALVE LIFT 1.25 ROCKERS 363/393 VALVE LIFT 1.50 ROCKERS 435/435 9.5:1 COMPRESSION REQUIRED

http://www.minimania.com/article/1773/Camshaft_Theory_by_Elgin

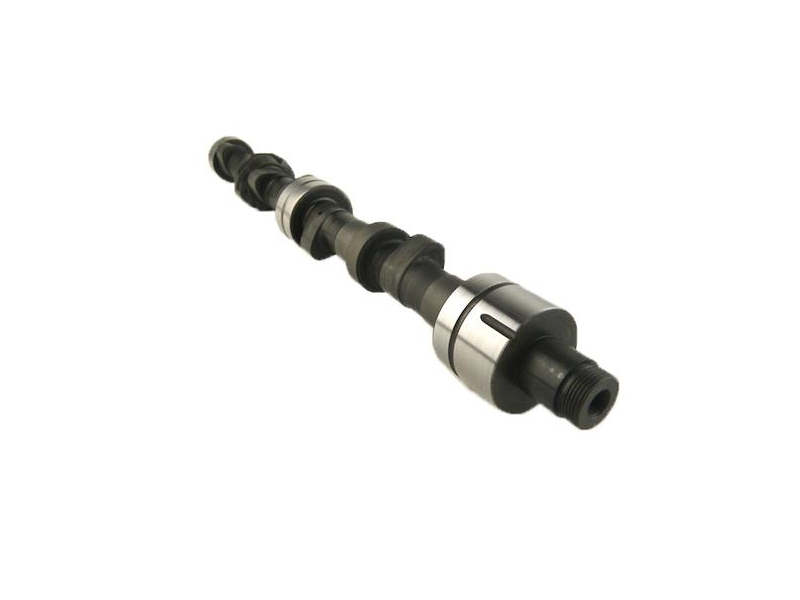

Elgin Autocross Camshaft - .284 Duration .290 Lift

Elgin Autocross Camshaft - .284 Duration .290 Lift

Elgin Autocross Camshaft - .284 Duration .290 Lift
Share your own image!

Elgin Autocross Camshaft - .284 Duration .290 Lift

Selected: Autocross cam .284 duration 290 lift
Part No: CAM7107
$310.98
Qty:
This Item has a $50.00 core charge.
Please Select a Car to Ensure Proper Fitment
Fits the following:
Classic Mini
Sprite & MG Midget
Morris Minor
PayPal Pay Later
Add to Wishlist
Add to Cart
Got a Question?
Select variations below for more info:
Autocross cam .284 duration 290 lift
$310.98
948 Full race
$599.95
310 duration 380 lift
$599.95
Slot Drive for supercharger or turbo
$416.95
Slot Drive 306 duration 342 lift
$695.98
Elgin full race cam for fully prepared 948cc. 13:1 compression required, dyno tune.
Elgin race cam, works best for 1275-1480cc engines.
This camshaft has been designed by Mini Mania for use in "A" series motors that have forced induction. These motors work best with a camshaft that is optiomized for the proper overlap and timing for a 'blower' induction system. 110 degree lobe centers.

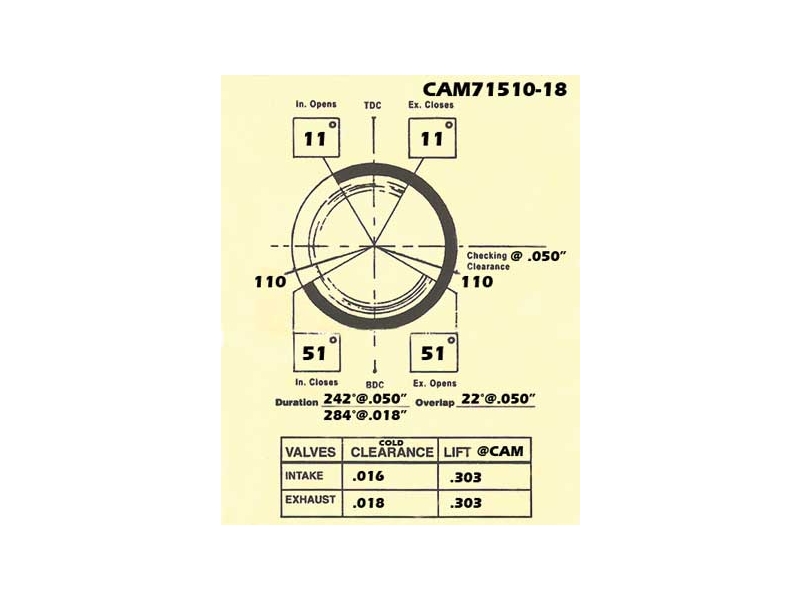

With a checking clearance of .050", the intake opens at 11 degrees BTDC and closes 51 degrees after BDC. The exhaust opens at 51 degrees before BDC and closes 11 degrees after TDC. Duration at .018 lift is 284 degrees.
Overlap is 22 degrees at .050". Duration is 242 degrees checked at .050" and/or 248 degrees at .018"

Dema Elgin earned his reputation for high performance design and manufacture of camshaft from extensive personal racing history. This full race 306 degree duration camshaft is one of his best developed cams for the Vintage Racer that is looking for the best. The power band for this can clearly depends on compression ratio and intake/exhaust systems but is designed to work best between 4000 and 7500 RPM. It should be used with at least 13:1 compression and dyno tuned to meet your expectations. The intake valves open at 49 degrees BTDC, closes at 91 degrees ABDC, the exhaust opens at 81 degrees ATDC and closes at 49 degrees ATDC. Lobe center on this cam occurs at 106 degrees. With stock ratio rockers the valve list is .427" while with 1.5 ratio the resulting lift is .513". These cams are ground on very special cores that have been cross drilled for improved oil flow and longer life of the cam and followers both!

This is a classic hot street camshaft grind from Dema Elgin, ideal for the Autocrosses or occasion track days. Best performance is achieved with a uprated cylinder head but will work great on a stock cylinder head with 1.4" intake valves. Improved RPM midrange performance will be most notable. 284/284 DURATION 235/235 DURATION @ .50 CAM LIFT .290/.290 CAM IN/EX VALVE LIFT 1.25 ROCKERS 363/393 VALVE LIFT 1.50 ROCKERS 435/435 9.5:1 COMPRESSION REQUIRED

//www.minimania.com/article/1773/Camshaft_Theory_by_Elgin
