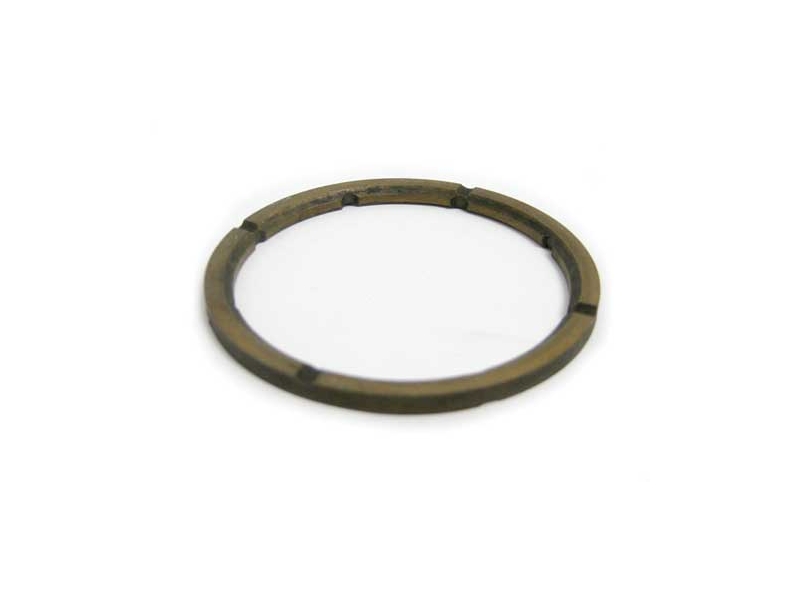

Classic Austin Mini Thrust Washer For The 1275 Primary Gear .112

Classic Austin Mini Thrust Washer For The 1275 Primary Gear .112

Classic Austin Mini Thrust Washer For The 1275 Primary Gear .112
Qty:
$69.95
Part No: DAM6490
Only 1 Left in Stock!
Internet Price $69.95
Alternate Products
Classic Austin Mini Thruast Washer For 1275 Primary Gear .122
$69.95 Classic Austin Mini Thruast Washer For 1275 Primary Gear .122
Primary gear thrust washers are made in varying sizes to take up the play. Standard gap size should be between 3-6 thou. See DAM6486, DAM6487, DAM6488, DAM6489 and DAM6492 for alternatives. This type is for the 1275cc crankshaft only which has a raised step for the primary gear to sit on. Race applications can be increased plus 3 thou. Thrust washer 0.112-114”(2.84-2.89mm). The measurement is taken as plus or minus one to the size hence the two thou tolerance on each part number.
