Mini factory replacement Relays for the fuse box in the engine compartment.  Sold each.

Fits the following models:

2007-2013 R56 MINI Cooper and Cooper S Hardtop
2008-2014 R55 MINI Cooper and Cooper S Clubman
2009-2015 R57 MINI Cooper and Cooper S Convertible
2012-2015 R58 MINI Cooper and Cooper S Coupe
2012-2015 R59 MINI Cooper and Cooper S Roadster
2011-2016 R60 MINI Cooper and Cooper S Countryman
2013-2016 R61 MINI Cooper and Cooper S Paceman

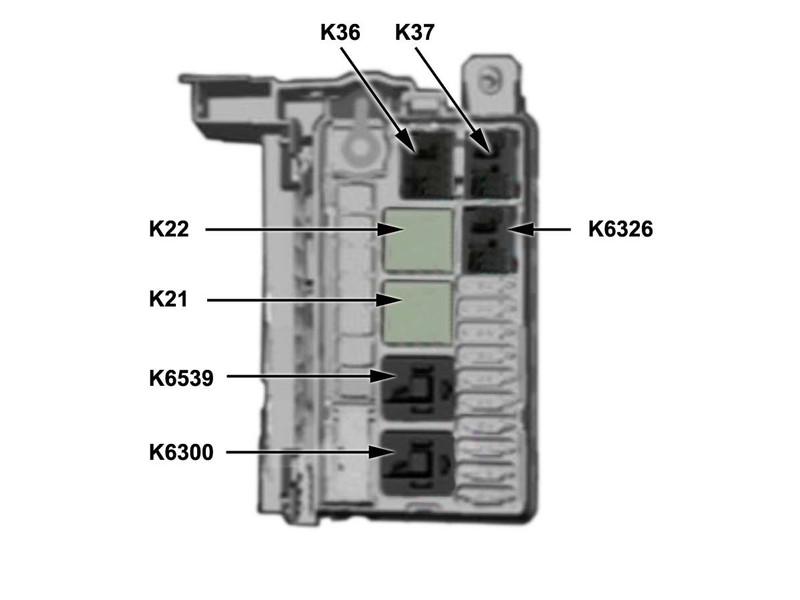

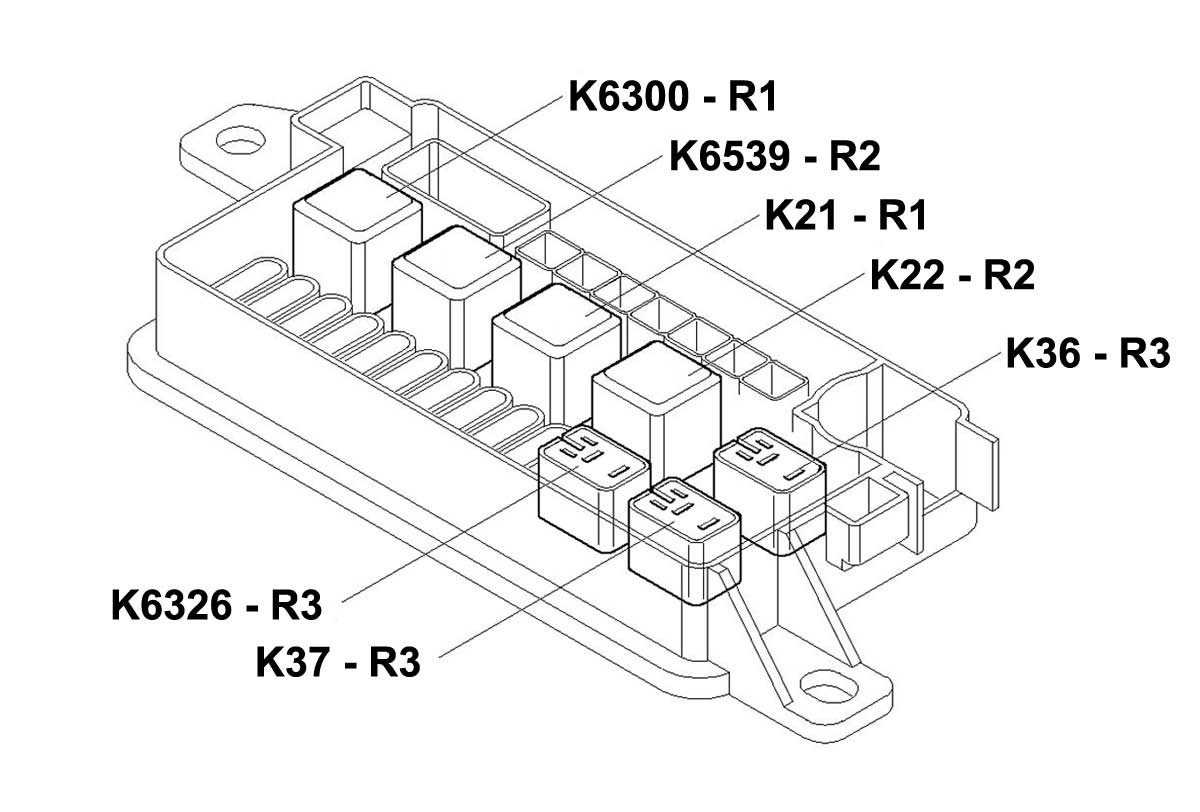

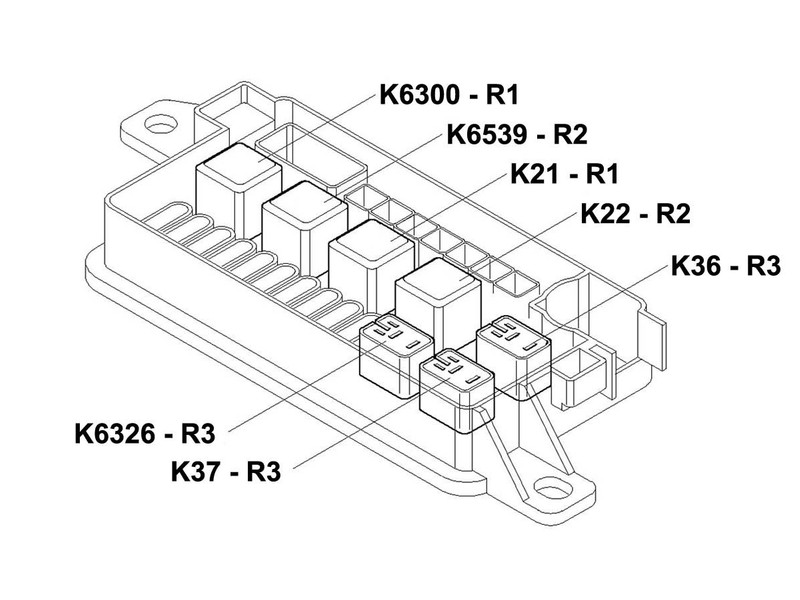

Relay Application Guide

Relay Position Relay Type Function Part Number
 K21  R1  Engine Cooling Fan relay 1  G2NME8610
 K22  R2  Engine Cooling Fan relay 2  G2NME8611
 K36  R3  Windshield Wiper relay 1  G2NME8612
 K37  R3  Windshield Wiper relay 2  G2NME8612
 K6300  R1  DME Main relay  G2NME8610
 K6326  R3  Power-saving relay Terminal 15  G2NME8612
 K6539  R2  Crankcase Breather Heating relay  G2NME8611



Mini Cooper Relay Oem Gen2 R55-r61

Mini Cooper Relay Oem Gen2 R55-r61

Mini Cooper Relay Oem Gen2 R55-r61

Mini Cooper Relay Oem Gen2 R55-r61

Mini Cooper Relay Oem Gen2 R55-r61

Mini Cooper Relay Oem Gen2 R55-r61

Mini Cooper Relay Oem Gen2 R55-r61
Select a Item below for more information:

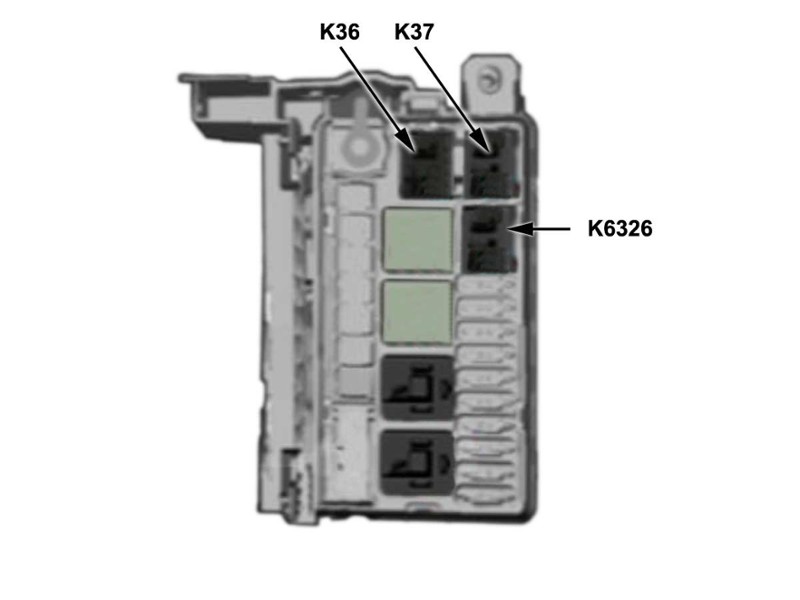

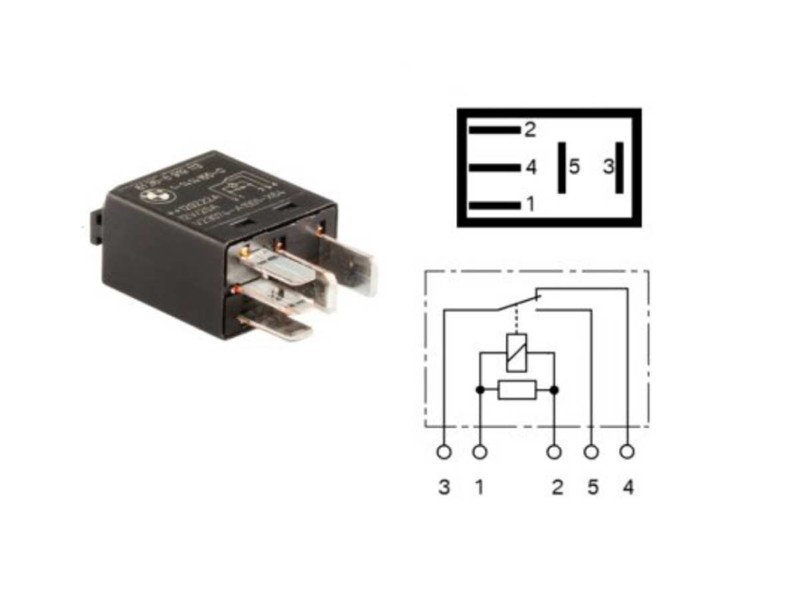

Mini factory replacement Relay R3 for the fuse box in the engine compartment.  Sold each.

This relay is used in the following locations:

  • Position K36 - Windshield Wiper Relay 1
  • Position K37 - Windshield Wiper Relay 2
  • Position K6326 - Relief Terminal 15

Fits the following models:

2007-2013 R56 MINI Cooper and Cooper S Hardtop
2008-2014 R55 MINI Cooper and Cooper S Clubman
2009-2015 R57 MINI Cooper and Cooper S Convertible
2012-2015 R58 MINI Cooper and Cooper S Coupe
2012-2015 R59 MINI Cooper and Cooper S Roadster
2011-2016 R60 MINI Cooper and Cooper S Countryman
2013-2016 R61 MINI Cooper and Cooper S Paceman

Relay Application Guide

Relay Position Relay Type Function Part Number
 K21  R1  Engine Cooling Fan relay 1  G2NME8610
 K22  R2  Engine Cooling Fan relay 2  G2NME8611
 K36  R3  Windshield Wiper relay 1  G2NME8612
 K37  R3  Windshield Wiper relay 2  G2NME8612
 K6300  R1  DME Main relay  G2NME8610
 K6326  R3  Power-saving relay Terminal 15  G2NME8612
 K6539  R2  Crankcase Breather Heating relay  G2NME8611

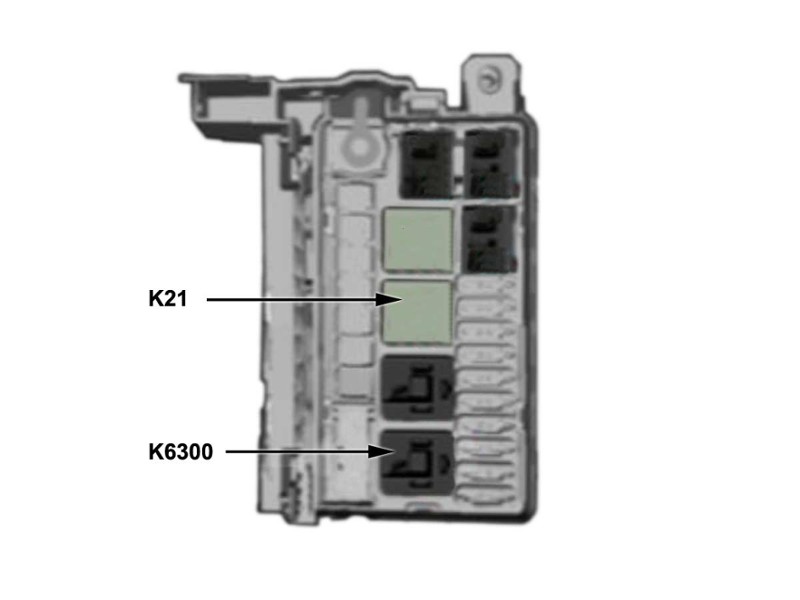

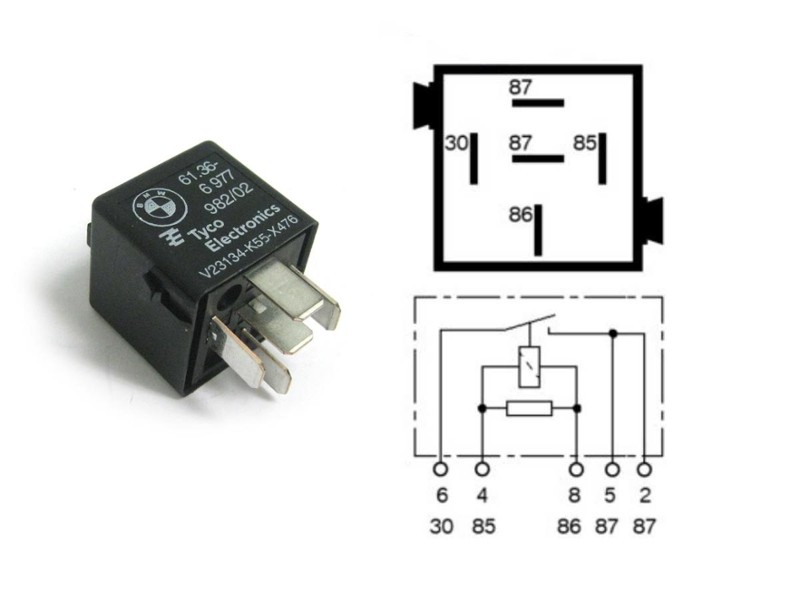

Mini factory replacement Relay R1 for the fuse box in the engine compartment.  Sold each.

This relay is used in the following locations:

  • Position K6300 - DME Main Relay
  • Position K21 - Engine Cooling Fan Relay 1

Fits the following models:

2007-2013 R56 MINI Cooper and Cooper S Hardtop
2008-2014 R55 MINI Cooper and Cooper S Clubman
2009-2015 R57 MINI Cooper and Cooper S Convertible
2012-2015 R58 MINI Cooper and Cooper S Coupe
2012-2015 R59 MINI Cooper and Cooper S Roadster
2011-2016 R60 MINI Cooper and Cooper S Countryman
2013-2016 R61 MINI Cooper and Cooper S Paceman

Relay Application Guide

Relay Position Relay Type Function Part Number
 K21  R1  Engine Cooling Fan relay 1  G2NME8610
 K22  R2  Engine Cooling Fan relay 2  G2NME8611
 K36  R3  Windshield Wiper relay 1  G2NME8612
 K37  R3  Windshield Wiper relay 2  G2NME8612
 K6300  R1  DME Main relay  G2NME8610
 K6326  R3  Power-saving relay Terminal 15  G2NME8612
 K6539  R2  Crankcase Breather Heating relay  G2NME8611

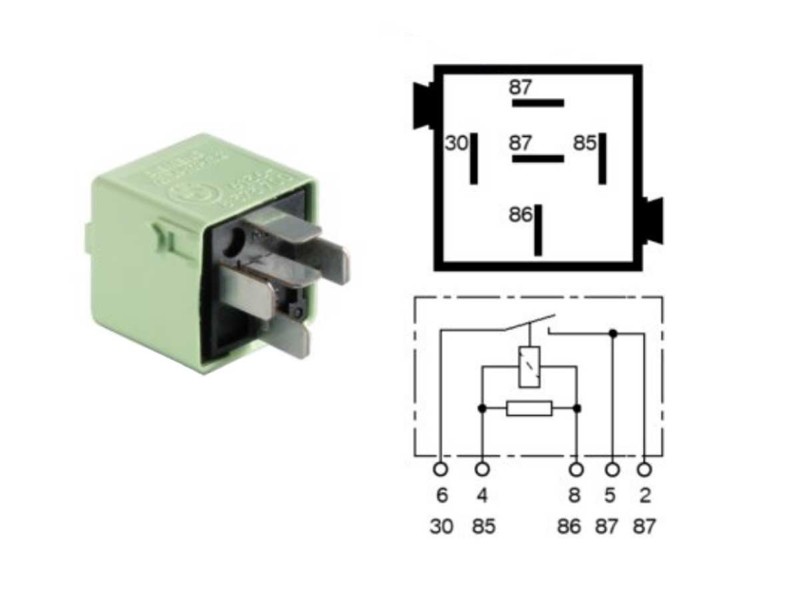

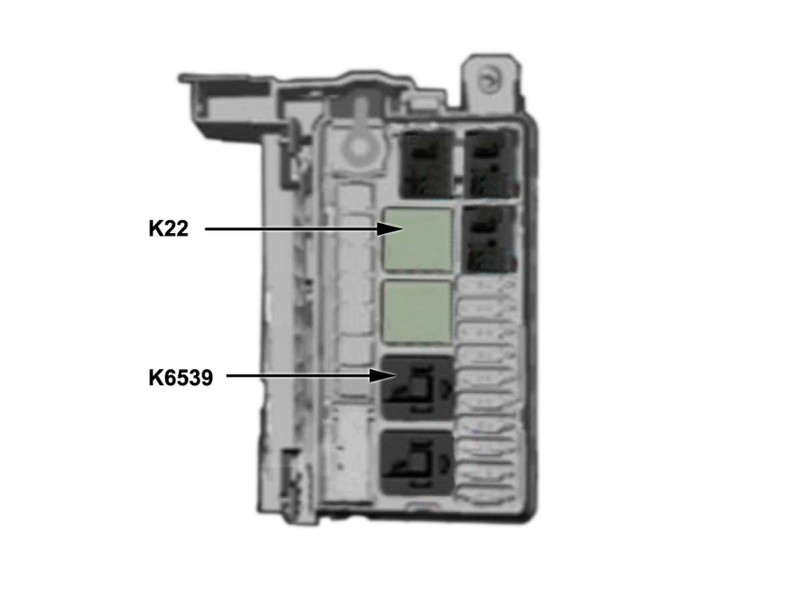

Mini factory replacement Relay R2 for the fuse box in the engine compartment.  Sold each.

This relay is used in the following locations:

  • Position K659 - Crankcase Breather Heating Relay
  • Position K22 - Engine Cooling Fan Relay 2
  • Position K96- Fuel Pump Relay

Fits the following models:

2007-2013 R56 MINI Cooper and Cooper S Hardtop
2008-2014 R55 MINI Cooper and Cooper S Clubman
2009-2015 R57 MINI Cooper and Cooper S Convertible
2012-2015 R58 MINI Cooper and Cooper S Coupe
2012-2015 R59 MINI Cooper and Cooper S Roadster
2011-2016 R60 MINI Cooper and Cooper S Countryman
2013-2016 R61 MINI Cooper and Cooper S Paceman

Relay Application Guide

Relay Position Relay Type Function Part Number
 K21  R1  Engine Cooling Fan relay 1  G2NME8610
 K22  R2  Engine Cooling Fan relay 2  G2NME8611
 K36  R3  Windshield Wiper relay 1  G2NME8612
 K37  R3  Windshield Wiper relay 2  G2NME8612
 K6300  R1  DME Main relay  G2NME8610
 K6326  R3  Power-saving relay Terminal 15  G2NME8612
 K6539  R2  Crankcase Breather Heating relay  G2NME8611



Mini factory replacement Relays for the fuse box in the engine compartment.  Sold each.

Fits the following models:

2007-2013 R56 MINI Cooper and Cooper S Hardtop
2008-2014 R55 MINI Cooper and Cooper S Clubman
2009-2015 R57 MINI Cooper and Cooper S Convertible
2012-2015 R58 MINI Cooper and Cooper S Coupe
2012-2015 R59 MINI Cooper and Cooper S Roadster
2011-2016 R60 MINI Cooper and Cooper S Countryman
2013-2016 R61 MINI Cooper and Cooper S Paceman

Relay Application Guide

Relay Position Relay Type Function Part Number
 K21  R1  Engine Cooling Fan relay 1  G2NME8610
 K22  R2  Engine Cooling Fan relay 2  G2NME8611
 K36  R3  Windshield Wiper relay 1  G2NME8612
 K37  R3  Windshield Wiper relay 2  G2NME8612
 K6300  R1  DME Main relay  G2NME8610
 K6326  R3  Power-saving relay Terminal 15  G2NME8612
 K6539  R2  Crankcase Breather Heating relay  G2NME8611





Question:
Currently working on an R56 2009 New MINI Cooper S and having trouble with the relays and the car starting. When I got the car one of the relays was out of the ignition placement so as I just wanted to start the car for diagnostics I switched one of the other relays Top one I believe into the vacant slot. However the car will still not start. Cranks but no start. My question is does it need all 4 main relays in the fuse box in before it will turn over. Ps cant get my diagnostic reader to communicate to the CPU any thoughts??
Answer:
One of the 4 main relays in the engine compartment fuse box is the DME main relay (K6300), the main computer relay - not much will happen without this. The other 3 are:

engine cooling fan (x2)
crankcase breather heating relay

Most of the newer code readers are CAN bus compatible - which is what your MINI has, and should be able to read the codes.

Mini Mania Tech Team

The MINI Cooper Parts and Accessories Experts





Question:
The bigger green relays have the numbers on top of them k21 K22 they seem to be the same but the black ones I can't identify if it's a right relay it's got 61-36 on the side with some more numbers 12 volt 20 amp how do I identify
Answer:
All of the relays are very similar, the only variation may be the amp / current rating as long as the pinouts are the same.

We offer relay replacements following MINIs part numbers and the position in the fuse box..  We don't have details on the marking in the individual relays.

Mini Mania Tech Team

The MINI Cooper Parts and Accessories Experts
