This kit includes all the factory gaskets and seals needed when replacing the cylinder head. Includes the head gasket and head bolts. Head bolts are 'stretch' bolts and need to be replaced when servicing the cylinder head.

This kit is for the Cooper (non-S) model with the Standard Thickness Head Gasket.

Fits the following Cooper (non-S) models with the N12 engine:

2007-2010 R56 MINI Cooper Hatchback
2008-2010 R55 MINI Cooper Clubman
2009-2010 R57 MINI Cooper Convertible

The 'Standard' Head gasket is 0.90mm thick and the thicker 1.20mm gasket is +0.30mm thicker than stock.

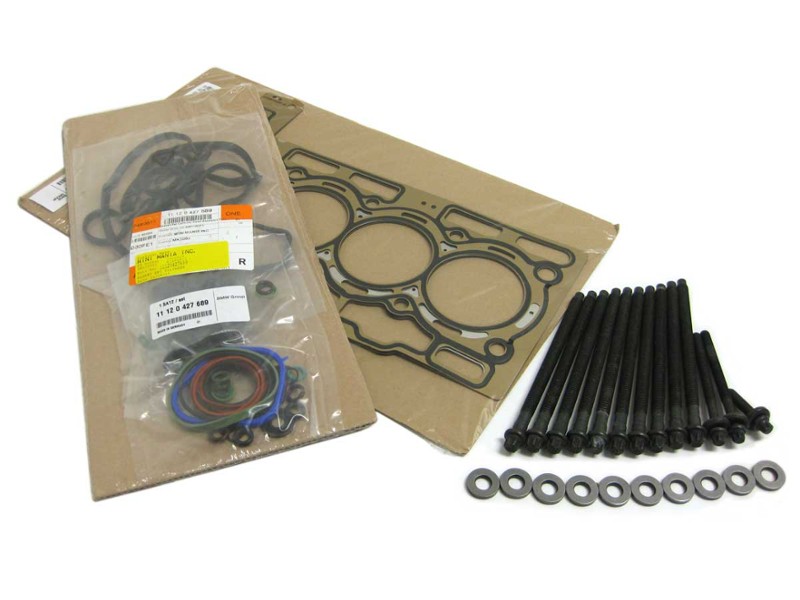

Kit includes the following factory parts:

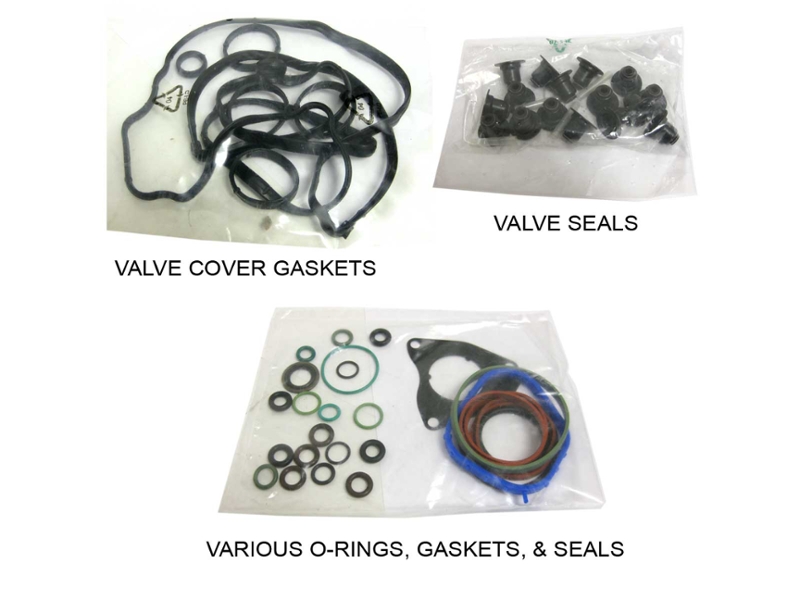

[ ] Cylinder Head Gasket Set
[ ] Head Gasket
[ ] Head Bolts set of 10

For the factory gasket set for the Engine Block, see MINI Cooper Engine Block Gasket Set.

Installation Notes:

Torque center bolts first then work outwards.

M8 x 35mm
30 Nm (22.1 ft-lb)

M8 x 95mm
stage 1 - 15 Nm (11 ft-lb)
stage 2 - additional 90 degrees
stage 3 - additional 90 degrees

M10 x 145mm
stage 1 - 30 Nm (22.1 ft-lb)
stage 2 - additional 90 degrees
stage 3 - additional 90 degrees



MINI factory OEM Cylinder Head Gasket kit with the standard Head Gasket and Head Bolts for your 2nd generation 2007-2010 MINI Cooper non-S models including R56 Hardtop R55 Clubman R57 Convertible
OEM N12 Cylinder Head Gasket Kit MINI Cooper Non-S R55 R56 R57 2007-2010 Gen2

OEM N12 Cylinder Head Gasket Kit MINI Cooper Non-S R55 R56 R57 2007-2010 Gen2

OEM N12 Cylinder Head Gasket Kit MINI Cooper Non-S R55 R56 R57 2007-2010 Gen2

OEM N12 Cylinder Head Gasket Kit MINI Cooper Non-S R55 R56 R57 2007-2010 Gen2

OEM N12 Cylinder Head Gasket Kit MINI Cooper Non-S R55 R56 R57 2007-2010 Gen2

OEM N12 Cylinder Head Gasket Kit MINI Cooper Non-S R55 R56 R57 2007-2010 Gen2

OEM N12 Cylinder Head Gasket Kit MINI Cooper Non-S R55 R56 R57 2007-2010 Gen2
Selected: Cooper w/Standard Gasket
Part No: G2NMK8100
$560.66
Qty:
Fits the following:
MINI (2002-Current)
PayPal Pay Later
This kit includes all the factory gaskets and seals needed when replacing the cylinder head. Includes the head gasket and head bolts. Head bolts are 'stretch' bolts and need to be replaced when servicing the cylinder head.

This kit is for the Cooper (non-S) model with the 1.20mm Thickness Head Gasket.

Fits the following Cooper (non-S) models with the N12 engine:

2007-2010 R56 MINI Cooper Hatchback
2008-2010 R55 MINI Cooper Clubman
2009-2010 R57 MINI Cooper Convertible

The 'Standard' Head gasket is 0.90mm thick and the thicker 1.20mm gasket is +0.30mm thicker than stock.

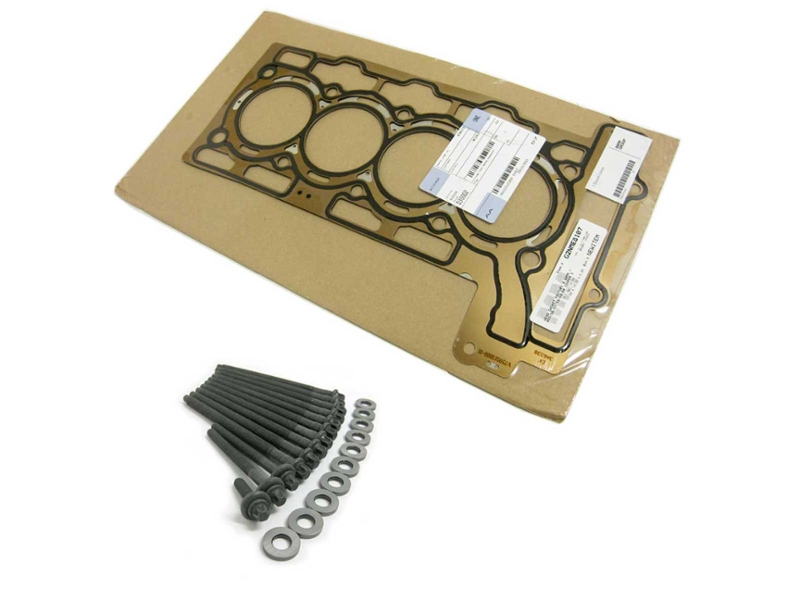

Kit includes the following factory parts:

[ ] Cylinder Head Gasket Set
[ ] Head Gasket
[ ] Head Bolts set of 10

For the factory gasket set for the Engine Block, see MINI Cooper Engine Block Gasket Set.

Installation Notes:

Torque center bolts first then work outwards.

M8 x 35mm
30 Nm (22.1 ft-lb)

M8 x 95mm
stage 1 - 15 Nm (11 ft-lb)
stage 2 - additional 90 degrees
stage 3 - additional 90 degrees

M10 x 145mm
stage 1 - 30 Nm (22.1 ft-lb)
stage 2 - additional 90 degrees
stage 3 - additional 90 degrees

This kit includes all the factory gaskets and seals needed when replacing the cylinder head. Includes the head gasket and head bolts. Head bolts are 'stretch' bolts and need to be replaced when servicing the cylinder head.

This kit is for the Cooper S model with the Standard Thickness Head Gasket.

Fits the following Cooper S models with the N14 engine:

2007-05/2009 R56 MINI Cooper Hatchback
2008-05/2009 R55 MINI Cooper Clubman
2009-05/2009 R57 MINI Cooper Convertible

The 'Standard' Head gasket is 0.90mm thick and the thicker 1.20mm gasket is +0.30mm thicker than stock.

Kit includes the following factory parts:

[ ] Cylinder Head Gasket Set
[ ] Head Gasket
[ ] Head Bolts set of 10

For the factory gasket set for the Engine Block, see MINI Cooper Engine Block Gasket Set.

Installation Notes:

Torque center bolts first then work outwards.

M8 x 35mm
30 Nm (22.1 ft-lb)

M8 x 95mm
stage 1 - 15 Nm (11 ft-lb)
stage 2 - additional 90 degrees
stage 3 - additional 90 degrees

M10 x 145mm
stage 1 - 30 Nm (22.1 ft-lb)
stage 2 - additional 90 degrees
stage 3 - additional 90 degrees

This kit includes all the factory gaskets and seals needed when replacing the cylinder head. Includes the head gasket and head bolts. Head bolts are 'stretch' bolts and need to be replaced when servicing the cylinder head.

This kit is for the Cooper S model with the 1.20mm Thickness Head Gasket.

Fits the following Cooper S models with the N14 engine:

2007-05/2009 R56 MINI Cooper Hatchback
2008-05/2009 R55 MINI Cooper Clubman
2009-05/2009 R57 MINI Cooper Convertible

The 'Standard' Head gasket is 0.90mm thick and the thicker 1.20mm gasket is +0.30mm thicker than stock.

Kit includes the following factory parts:

[ ] Cylinder Head Gasket Set
[ ] Head Gasket
[ ] Head Bolts set of 10

For the factory gasket set for the Engine Block, see MINI Cooper Engine Block Gasket Set.

Installation Notes:

Torque center bolts first then work outwards.

M8 x 35mm
30 Nm (22.1 ft-lb)

M8 x 95mm
stage 1 - 15 Nm (11 ft-lb)
stage 2 - additional 90 degrees
stage 3 - additional 90 degrees

M10 x 145mm
stage 1 - 30 Nm (22.1 ft-lb)
stage 2 - additional 90 degrees
stage 3 - additional 90 degrees

This kit includes all the factory gaskets and seals needed when replacing the cylinder head. Includes the head gasket and head bolts. Head bolts are 'stretch' bolts and need to be replaced when servicing the cylinder head.

This kit is for the Cooper (non-S) model with the Standard Thickness Head Gasket.

Fits the following Cooper (non-S) models with the N12 engine:

2007-2010 R56 MINI Cooper Hatchback
2008-2010 R55 MINI Cooper Clubman
2009-2010 R57 MINI Cooper Convertible

The 'Standard' Head gasket is 0.90mm thick and the thicker 1.20mm gasket is +0.30mm thicker than stock.

Kit includes the following factory parts:

[ ] Cylinder Head Gasket Set
[ ] Head Gasket
[ ] Head Bolts set of 10

For the factory gasket set for the Engine Block, see MINI Cooper Engine Block Gasket Set.

Installation Notes:

Torque center bolts first then work outwards.

M8 x 35mm
30 Nm (22.1 ft-lb)

M8 x 95mm
stage 1 - 15 Nm (11 ft-lb)
stage 2 - additional 90 degrees
stage 3 - additional 90 degrees

M10 x 145mm
stage 1 - 30 Nm (22.1 ft-lb)
stage 2 - additional 90 degrees
stage 3 - additional 90 degrees
