Mini factory replacement Bushing with Bracket for the Front Wishbone or Front Control Arm Bracket.  Each item sold individually.

Fits the following models:

2011-2016 R60 MINI Cooper and Cooper S Countryman
2013-2016 R61 MINI Cooper and Cooper S Paceman

Select the right or left bushing. Hardware is not included but available separately.

Mini factory replacement Left side Bushing with Bracket for the Front Left Wishbone or Front Left Control Arm Bracket.  Each item sold individually.

Left side is the drivers side and right side is the passenger side on US MINI's.

Fits the following models:

2011-2016 R60 MINI Cooper and Cooper S Countryman
2013-2016 R61 MINI Cooper and Cooper S Paceman

Hardware is not included but available separately.

MINI specifies the mounting bolts be renewed when servicing the bushing / bracket.

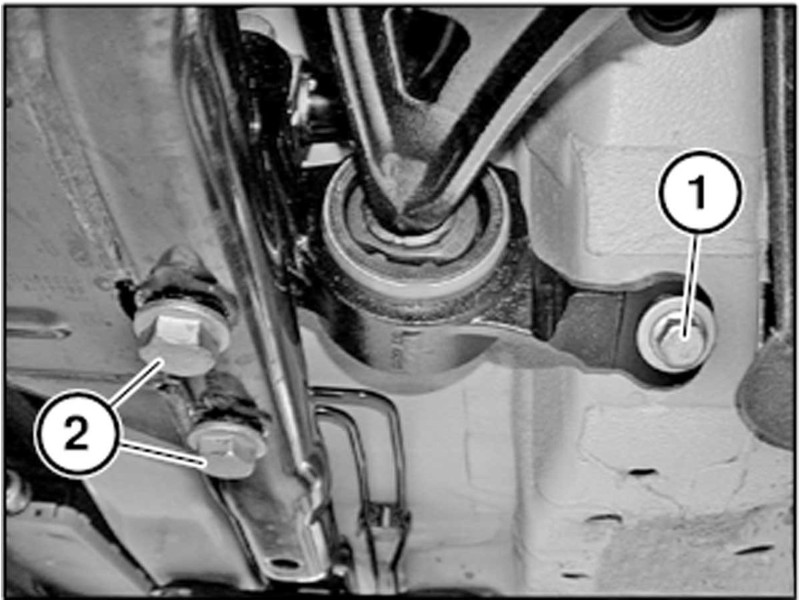

Tightening torques
Bracket to body/chassis (M10 x1)
    Jointing torque:  59 Nm (43.5 ft-lbs)
    Angle of rotation:  90°
Bracket to axle support / front subframe (M14 x2):  165 Nm (121.7 ft-lbs)

Mini factory replacement Right side Bushing with Bracket for the Front Left Wishbone or Front Left Control Arm Bracket.  Each item sold individually.

Left side is the drivers side and right side is the passenger side on US MINI's.

Fits the following models:

2011-2016 R60 MINI Cooper and Cooper S Countryman
2013-2016 R61 MINI Cooper and Cooper S Paceman

Hardware is not included but available separately.

MINI specifies the mounting bolts be renewed when servicing the bushing / bracket.

Tightening torques
Bracket to body/chassis (M10 x1)
    Jointing torque:  59 Nm (43.5 ft-lbs)
    Angle of rotation:  90°
Bracket to axle support / front subframe (M14 x2):  165 Nm (121.7 ft-lbs)

Mini factory replacement Mounting Bolts for the Front Wishbone or Front Control Arm Bracket.  Sold in set of 3 bolt for one bracket.

MINI specifies these bolts to be renewed when servicing the bushing / bracket.

Bolts only, bracket is NOT included.

Fits the following models:

2011-2016 R60 MINI Cooper and Cooper S Countryman
2013-2016 R61 MINI Cooper and Cooper S Paceman

Kit includes:

• 1 each Hex bolt with washer M10 x 60 - Z1 - 10.9
• 2 each Hex flange screw M14 x 127 - 10.9

Tightening torques
Bracket to body/chassis (M10 x1)
    Jointing torque:  59 Nm (43.5 ft-lbs)
    Angle of rotation:  90°
Bracket to axle support / front subframe (M14 x2):  165 Nm (121.7 ft-lbs)
