- 1-component silicone with very good oil resistance
- Neutral curing

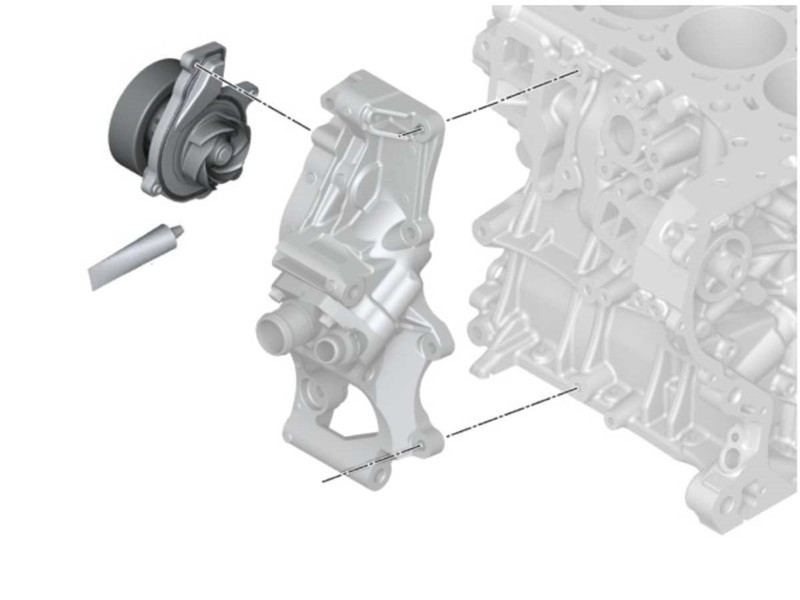

- Also used for gasketing applications (flange sealing)
For the following models:
2016-2022 F54 MINI Cooper and Cooper S Clubman
2015-2022 F55 MINI Cooper and Cooper S Hardtop 4-Door
2014-2022 F56 MINI Cooper and Cooper S Hardtop
2016-2022 F57 MINI Cooper and Cooper S Convertible
2017-2022 F60 MINI Cooper and Cooper S Countryman
Technical Data
- Description: 1K alcoxy silicone
- Elongation at break: 200%
- Hardess shore A: 44
- Shear strength (GBMS) N/mm²: 1,5
- Max. gap: 1mm
- Skin over time: 25 min.
- Cure through volume in 24 h: 2.5 mm
- Service temperature range: +250 °C
- 1-component silicone with very good oil resistance
- Neutral curing
- Also used for gasketing applications (flange sealing)
For the following models:
2016-2022 F54 MINI Cooper and Cooper S Clubman
2015-2022 F55 MINI Cooper and Cooper S Hardtop 4-Door
2014-2022 F56 MINI Cooper and Cooper S Hardtop
2016-2022 F57 MINI Cooper and Cooper S Convertible
2017-2022 F60 MINI Cooper and Cooper S Countryman
Technical Data
- Description: 1K alcoxy silicone
- Elongation at break: 200%
- Hardess shore A: 44
- Shear strength (GBMS) N/mm²: 1,5
- Max. gap: 1mm
- Skin over time: 25 min.
- Cure through volume in 24 h: 2.5 mm
- Service temperature range: +250 °C
To remove the vibration damper, you need to first lock the flywheel - there is an access plug at the bottom of the bellhousing and a special BMW tool to lock the flywheel. Once locked, you can remove the bolts on the hub of the vibration damper and remove the damper.
MINI specifies new pulley bolts when servicing the vibration damper or crank pulley. These bolts are one time use 'stretch bolts'.
Toque values for vibration damper to crankshaft
MINI Cooper non-S
Torque for the vibration damper hub bolts to the crankshaft:
1. Jointing torque: 40 Nm
2. Angle of rotation: 120 °
MINI Cooper S
Torque for the vibration damper hub bolts to the crankshaft:
1. Jointing torque: 28 Nm
2. Angle of rotation: 180 °
