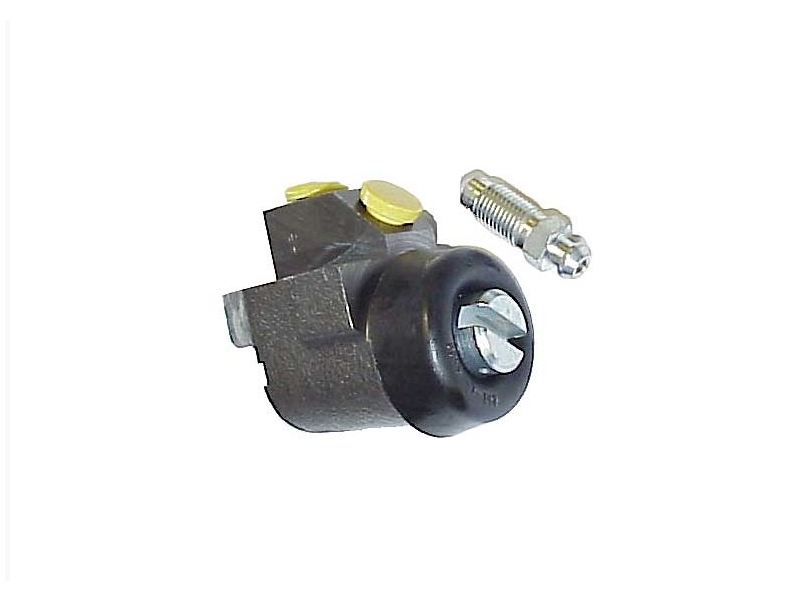

Aftermarket Right Front Wheel Cylinder.
Twin leading shoe brakes use two cylinders per wheel.
Later twin-leading shoe cars (Mk II and later single line sytems) were fitted with GWC104/105. The GWC104/105 cylinders are the 15/16" diameter style that will fit any and all models with 1 1/2" shoes; including the later split systems that also used GWC126/7. Make sure all four cylinders are the same internal diameter.
Note that early twin leading shoe Minis (Mk 1) used .80" front cylinders, GWC102/103 and different rear wheel cylinders.
Two wheel cylinders required on each side. Order two of these for the right side.
Used with GMC102 or GWC71 master cylinder and GWC1102 rear wheel cylinders for single line sytems.
In diagonal split systems, used with GMC160 and GWC1126 or GWC1134; GMC167 and GWC1131 or GWC1102.
In front to rear split systems, used with GMC159 and GWC1102; GMC168 and GWC1129; GMC227 and GWC1102
Mounting bolts not included. Requires one each HF0505 and 7H7250 & one each GHF331 and WL2051.
Classic  Mini wheel cylinder right front twin leading 68-84 Aftermarket

Classic Mini wheel cylinder right front twin leading 68-84 Aftermarket

Classic  Mini wheel cylinder right front twin leading 68-84 Aftermarket
Selected: Right Front Twin Leading Cylinder Aftermarket
Part No: GWC104-REP
$20.95
Qty:
Fits the following:
Classic Mini
PayPal Pay Later
Alternate Products
Classic Mini Brake Wheel Cylinder Kit 15/16 Single Leading 59-64
$31.98 Classic Mini Brake Wheel Cylinder Kit 15/16 Single Leading 59-64
Classic Mini Brake Wheel Cylinder Kit 15/16 Twin Leading 64-84
$7.15 Classic Mini Brake Wheel Cylinder Kit 15/16 Twin Leading 64-84
Aftermarket Left Front Wheel Cylinder.
Twin leading shoe brakes use two cylinders per wheel.
Later twin-leading shoe cars (Mk II on single line and later dual system cars) were fitted with GWC104/105. The GWC104/105 cylinders are the 15/16" diameter style that will fit any and all models with 1 1/2" shoes; including as a substitute for GWC126/7. Make sure all four cylinders are the same internal diameter.
Note: early twin leading shoe cars (Mk I) used .80" front cylinders with different rear cylinders.
Two wheel cylinders required on each side. Order two of these for the left side. See GWC104-REP for the right side.
Used with GMC102 or GWC171 master cylinder and GWC1102 rear wheel cylinders for single line systems.
In diagonal split systems, used with GMC160 and GWC1126 or GWC1134; GMC167 and GWC1131 or GWC1102.
In front to rear split systems, used with GMC159 and GWC1102; GMC168 and GWC1129; GMC227 and GWC1102
Mounting bolts not included. Requires one each HF0505 and 7H7250 & one each GHF331 and WL2051.
Aftermarket Right Front Wheel Cylinder.
Twin leading shoe brakes use two cylinders per wheel.
Later twin-leading shoe cars (Mk II and later single line sytems) were fitted with GWC104/105. The GWC104/105 cylinders are the 15/16" diameter style that will fit any and all models with 1 1/2" shoes; including the later split systems that also used GWC126/7. Make sure all four cylinders are the same internal diameter.
Note that early twin leading shoe Minis (Mk 1) used .80" front cylinders, GWC102/103 and different rear wheel cylinders.
Two wheel cylinders required on each side. Order two of these for the right side.
Used with GMC102 or GWC71 master cylinder and GWC1102 rear wheel cylinders for single line sytems.
In diagonal split systems, used with GMC160 and GWC1126 or GWC1134; GMC167 and GWC1131 or GWC1102.
In front to rear split systems, used with GMC159 and GWC1102; GMC168 and GWC1129; GMC227 and GWC1102
Mounting bolts not included. Requires one each HF0505 and 7H7250 & one each GHF331 and WL2051.
