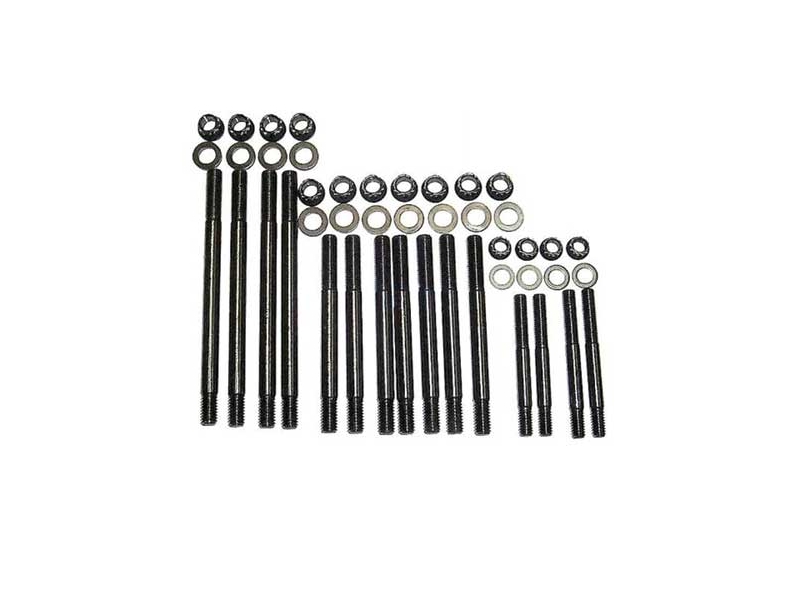

Competition head stud kit (11 studs, nuts, and washers). Also includes rocker studs nuts and washers.

This special kit was developed to replace the increasingly inconsistent standard items. The studs are manufactured in selected high-grade steel and produced to exacting specifications. These studs do not stretch, so they pull the head down, not the thread up; this vastly increases head gasket life, even on high compression engines. Special thick washers, countersunk on one side, help clamping capability and reduce thread bottoming of the nuts. The 12-point skirted nuts help to increase torque accuracy through better engagement.

Note that even replacing the head bolt with a stud, only torque that stud to the factory recommended spec(25 ft/lbs), the other studs can be torqued to 65ft/lbs with oil, 55ft/lbs with ARP lube. (Rocker studs 25/20).

Head Stud Kit 11-stud w/ 12-point Nuts ARP | Classic Mini | Sprite & Midget | Morris Minor

Head Stud Kit 11-stud w/ 12-point Nuts ARP | Classic Mini | Sprite & Midget | Morris Minor

Head Stud Kit 11-stud w/ 12-point Nuts ARP | Classic Mini | Sprite & Midget | Morris Minor
Part No: HSA11
$153.95
Qty:
Fits the following:
Classic Mini
Sprite & MG Midget
Morris Minor
PayPal Pay Later
Alternate Products
Head Stud Kit 9-stud w/ 12-point Nuts ARP | Classic Mini | Sprite & Midget | Morris Minor
$165.98 Head Stud Kit 9-stud w/ 12-point Nuts ARP | Classic Mini | Sprite & Midget | Morris Minor
Head Stud Kit 11-stud EN24 Competition | Classic Mini | Sprite & Midget | Morris Minor
$171.95 Head Stud Kit 11-stud EN24 Competition | Classic Mini | Sprite & Midget | Morris Minor

Competition head stud kit (11 studs, nuts, and washers). Also includes rocker studs nuts and washers.

This special kit was developed to replace the increasingly inconsistent standard items. The studs are manufactured in selected high-grade steel and produced to exacting specifications. These studs do not stretch, so they pull the head down, not the thread up; this vastly increases head gasket life, even on high compression engines. Special thick washers, countersunk on one side, help clamping capability and reduce thread bottoming of the nuts. The 12-point skirted nuts help to increase torque accuracy through better engagement.

Note that even replacing the head bolt with a stud, only torque that stud to the factory recommended spec(25 ft/lbs), the other studs can be torqued to 65ft/lbs with oil, 55ft/lbs with ARP lube. (Rocker studs 25/20).



Question:
Will this ARP stud kit also work on my 948cc Bugeye? I realize I only need 9 studs not 11 but I need a nice set of studs for this engine. I think they are all 3/8", not sure if the lengths are the same?
