Original Tex short arm most commonly fitted to minis with larger oblong mirrors.

Arm only, for "knock around" mirror. If you are tired of having your mirrors broken off either by vandals or simply too many close calls, this spring loaded stem allows for some impact withour breakage!
Can be used with either 8G8721 or 8G8710 mirror head. And M50201 & M50211.

Patented Springback® mechanism
Vertical - 105mm
Horizontal - 60mm
Base - 32mm dia. Hole - 16mm dia.

Arm only, for "knock around" mirror. If you are tired of having your mirrors broken off either by vandals or simply too many close calls, this spring loaded stem allows for some impact withour breakage!
Can be used with either 8G8721 or 8G8710 mirror head.

Patented Springback® mechanism
Vertical - 105mm
Horizontal - 50mm
Base - 32mm dia. Hole - 16mm dia.

Original Tex short arm most commonly fitted to minis with larger oblong mirrors. Height from mounting face is 70mm.
Patented Springback® mechanism
Vertical - 82mm
Horizontal - 0mm
Base - 32mm dia. Hole - 16mm dia.

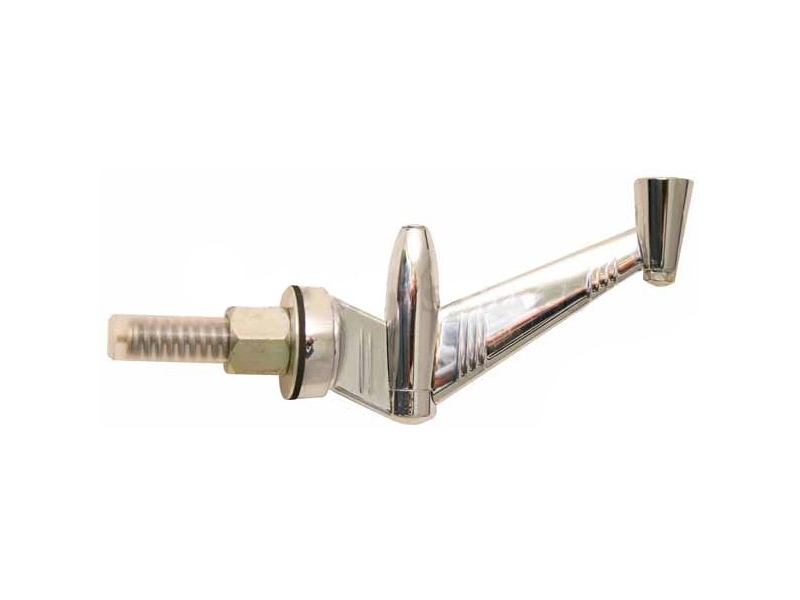

Equivalent to a long straight arm but with a knuckle to provide extra adjustment and angle on the part that sits straight up on its base on the wing. These were a very popular fitment in the 1960s by dealers as minis never had them fitted as standard. They were fitted to Keith Dodd's 1964 Wolseley Hornet in 1965 when new.
Patented Springback® mechanism
Vertical - 40mm to 110mm
Horizontal - 0mm to 70mm
Base - 32mm dia. Hole - 16mm dia.
