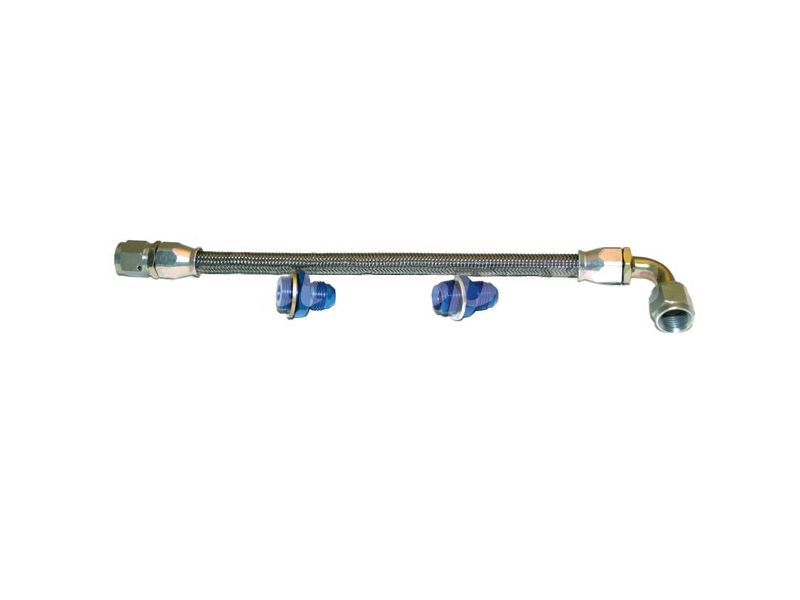

Classic Austin Mini Oil Feed Pipe 5/8 To 11/16 Npt To Filter Head

Classic Austin Mini Oil Feed Pipe 5/8 To 11/16 Npt To Filter Head

Classic Austin Mini Oil Feed Pipe 5/8 To 11/16 Npt To Filter Head
Qty:
$129.95
Part No: MOC1019
Internet Price $129.95
Alternate Products
Classic Austin Mini Braided Oil Feed Pipe Hose 12a Engine Late Model
$119.95 Classic Austin Mini Braided Oil Feed Pipe Hose 12a Engine Late Model

To replace the troublesome block to filter head oil transfer pipe when fitting the later LPX10026RACE spin on filter head with 11/16"union to an early engine block. Only pipe available to fit the earlier spin on filter head TAM2097 to 1992on cars. Another benefit owing to the larger feed holes and extra oil flow is extra BHP can be gained when checked on a dyno but also decreases the need for fitting an oil cooler under most circumstances.
Pre 1992 engines have 5/8" block union and 1/4" npt thread for the filter head.
12A engines from 1992 on have 11/16"UNF block and filter head.
So this kit has 5/8" unf block union and 11/16" filter head union.
These are the following options of filter/block sizes for Pipe kits:
Block union 5/8" and filter head 1/4"npt use TAM2106BRAIDED
Block union 5/8" and filter head 11/16"unf use MOC1019
Block union 11/16" and filter head 11/16"unf use MOC1018
Block union 11/16" and filter head 1/4"npt use MOC1020

Can be used on any A-Series engine pre-1992 - including Sprite, Midget, and Morris Minors.
