Fits:
2002-2006 R50 MINI Cooper and R53 Cooper S Hatchback
2005-2008 R52 MINI Cooper and Cooper S Convertible

There are 4 basic Relays that are used in the MINI. Check the diagram for the relay position and the description will tell you which relay to select.

Engine Compartment Fuse Box Relay Selction

A - Relay R3
B - Relay R3
C - Relay R3
D - Relay R2
E - Relay R2 up to 07/2005, Relay R1 from 07/2005
F - Relay R2
G - Relay R2 up to 07/2005, Relay R1 from 07/2005

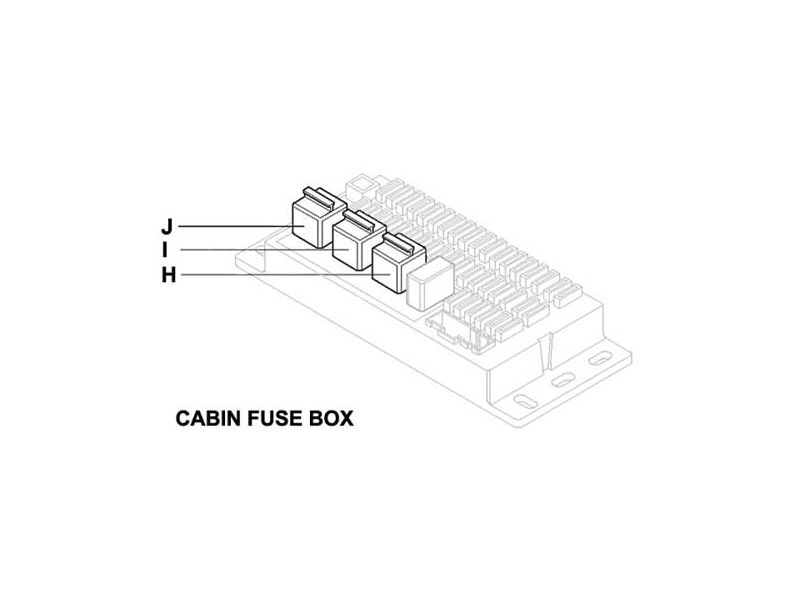

Cabin Fuse Box Relay Selection

H - Relay R2 up to 09/2005,  Relay R3 from 09/2005 and newer
I -  Relay R2
J - Relay R2

Here are some of the functional descriptions:

Engine Compartment Fuse Box Relay Function

A - Front Wiper fast / slow relay
B - Front Wiper On / Off relay
C - Front Fog Light relay
D - Heating and A/C blower relay (up to March 2003),  Engine Cooling Fan (stage II) (from March 2003)
E - Engine Cooling Fan (stage I)
F - A/C Compressor relay
G - DME main relay (K6300)

Cabin Fuse Box Relay Function

H - Headlight washer relay
I - Heating and A/C blower
J - Fuel pump relay

For the factory replacement Fuse Box and components, see NME8642-P.

Fits:
2002-2006 R50 MINI Cooper and R53 Cooper S Hatchback
2005-2008 R52 MINI Cooper and Cooper S Convertible

2007-2013 R56 MINI Cooper and Cooper S Hardtop
2008-2014 R55 MINI Cooper and Cooper S Clubman
2009-2015 R57 MINI Cooper and Cooper S Convertible
2012-2015 R58 MINI Cooper and Cooper S Coupe
2012-2015 R59 MINI Cooper and Cooper S Roadster
2011-2016 R60 MINI Cooper and Cooper S Countryman
2013-2016 R61 MINI Cooper and Cooper S Paceman

See NMA8610-P for other relays.

There are 4 basic Relays that are used in the MINI. Check the diagram for the relay position and the description will tell you which relay to select.

Engine Compartment Fuse Box Relay Selction

A - Relay R3
B - Relay R3
C - Relay R3
D - Relay R2
E - Relay R2 up to 07/2005, Relay R1 from 07/2005
F - Relay R2
G - Relay R2 up to 07/2005, Relay R1 from 07/2005

Cabin Fuse Box Relay Selection

H - Relay R2 up to 09/2005, Relay R3 from 09/2005 and newer
I - Relay R2
J - Relay R2

Here are some of the functional descriptions:

Engine Compartment Fuse Box Relay Function

A - Front Wiper fast / slow relay
B - Front Wiper On / Off relay
C - Front Fog Light relay
D - Heating and A/C blower relay (up to March 2003),  Engine Cooling Fan (stage II) (from March 2003)
E - Engine Cooling Fan (stage I)
F - A/C Compressor relay
G - DME main relay (K6300)

Cabin Fuse Box Relay Function

H - Headlight power wash relay
I - Heating and A/C blower
J - Fuel pump relay

For the factory replacement Fuse Box and components, see NME8642-P.

Fits:
2002-2006 R50 MINI Cooper and R53 Cooper S Hatchback
2005-2008 R52 MINI Cooper and Cooper S Convertible

See NMA8610-P for other relays.

There are 4 basic Relays that are used in the MINI. Check the diagram for the relay position and the description will tell you which relay to select.

Engine Compartment Fuse Box Relay Selction

A - Relay R3
B - Relay R3
C - Relay R3
D - Relay R2
E - Relay R2 up to 07/2005, Relay R1 from 07/2005
F - Relay R2
G - Relay R2 up to 07/2005, Relay R1 from 07/2005

Cabin Fuse Box Relay Selection

H - Relay R2 up to 09/2005, Relay R3 from 09/2005 and newer
I - Relay R2
J - Relay R2

Here are some of the functional descriptions:

Engine Compartment Fuse Box Relay Function

A - Front Wiper fast / slow relay
B - Front Wiper On / Off relay
C - Front Fog Light relay
D - Heating and A/C blower relay (up to March 2003),  Engine Cooling Fan (stage II) (from March 2003)
E - Engine Cooling Fan (stage I)
F - A/C Compressor relay
G - DME main relay (K6300)

Cabin Fuse Box Relay Function

H - Headlight power wash relay
I - Heating and A/C blower
J - Fuel pump relay

For the factory replacement Fuse Box and components, see NME8642-P.

Fits:
2002-2006 R50 MINI Cooper and R53 Cooper S Hatchback
2005-2008 R52 MINI Cooper and Cooper S Convertible

See NMA8610-P for other relays.

There are 4 basic Relays that are used in the MINI. Check the diagram for the relay position and the description will tell you which relay to select.

Engine Compartment Fuse Box Relay Selction

A - Relay R3
B - Relay R3
C - Relay R3
D - Relay R2
E - Relay R2 up to 07/2005, Relay R1 from 07/2005
F - Relay R2
G - Relay R2 up to 07/2005, Relay R1 from 07/2005

Cabin Fuse Box Relay Selection

H - Relay R2 up to 09/2005, Relay R3 from 09/2005 and newer
I - Relay R2
J - Relay R2

Here are some of the functional descriptions:

Engine Compartment Fuse Box Relay Function

A - Front Wiper fast / slow relay
B - Front Wiper On / Off relay
C - Front Fog Light relay
D - Heating and A/C blower relay (up to March 2003),  Engine Cooling Fan (stage II) (from March 2003)
E - Engine Cooling Fan (stage I)
F - A/C Compressor relay
G - DME main relay (K6300)

Cabin Fuse Box Relay Function

H - Headlight power wash relay
I - Heating and A/C blower
J - Fuel pump relay

For the factory replacement Fuse Box and components, see NME8642-P.
