Other accessories required for full functionality of the Flux2 display - all sold separately.

Fits the following MINIs with the Unichip Q ECU upgrade:

2002-2006 R50 Cooper and R53 Cooper S Hatchback
2005-2008 R52 Cooper and Cooper S Convertible

For the Unichip Uni Q ECU Upgrade, see NME4210.

Display is available in Black or Red case. Add the optional Boost Sensor Kit or the EGT Amplifier & Probe to expand the capabilities!

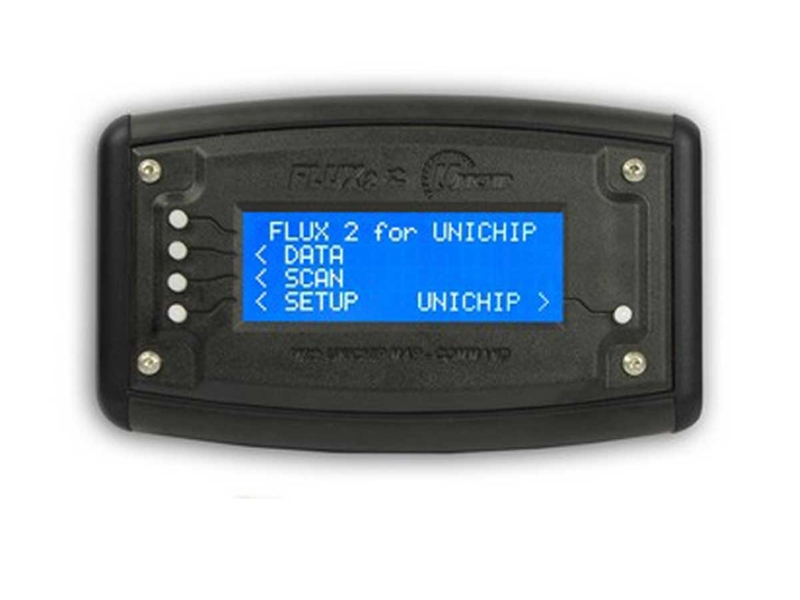

FLUX2 IN CAR DISPLAY

[ ] Works on most vehicles after 1996, both US & foreign models, which have an OBD port inside the cabin.

[ ] Compact, palm-sized design

[ ] Easy to read 4x20 Character blue backlit LCD-screen. Adjustable contrast & brightness.

[ ] Conveniently mounts to the windshield with GPS-style suction-cup mount. Can also be custom-installed to the dashboard (or left in the glove box when not in use).

[ ] Easily connects to the OBD port via cable.

[ ] Easily connects to the Unichip via cable & Plug 'n Play connectors.

[ ] Displays available vehicle live data such as: RPM, Speed, Throttle position, Open/Closed loop, Intake air temperature, Timing advance, Long/short term fuel trims, Factory boost, Coolant temperature, Load. View 3 different Data Parameters at the same time, each Data line can be individually changed.

[ ] Scans & clears Engine Fault Codes (P-codes), including Pending codes.

[ ] Calculates 0-60Mph or 0-100Mph acceleration times. (0-100Km/h or 0-160Km/h when set to Metric units).

[ ] Speed reading can be adjusted incrementally to display true speed in case of larger tires or gearing changes. Acceleration times will accordingly show true speed readings instead of skewed speedometer readings.

[ ] Features Unichip MAP-COMMAND™ : Allows driver to switch through up to 5 maps in any Unichip Q or Q+, whether hardwired or part of a Plug 'n Play kit. Unichip Tuners can fill in map descriptions next to each map number (need optional FLUX2 Download cable to fill in map descriptions).

[ ] Shows EGT (Exhaust Gas Temperature) when used with optional Unichip USA Flux2 EGT Amplifier & EGT probe. EGT alarm level can be preset by a Unichip Tuner to warn driver of high EGT (need optional FLUX2 Download cable to set alarm level).

[ ] Shows aftermarket boost when used with optional Flux2 Boost Sensor. This eliminates the need for any unsightly mechanical boost gauges on the dashboard or a-pillar. Suitable for any factory or aftermarket turbochargers or superchargers, ideal for TRD supercharger kits. Boost pressure is shown in BAR or Psi.

[ ] Firmware upgradeable which means existing units can easily be upgraded as new Flux2 features become available.

[ ] Flux2 is available in black or red casing.

For the Red display, Boost sensor, EGT amplifier, or EGT probe, see NME4255-P.
