The oil system in our engines is best understood when compared to the blood circulation in our body. It is extremely critical and thus we can always benefit from knowing what condition the system is in. Our Mini Mania developed adapter provides a port to allow you to set-up an auxiliary monitoring system. The pipe thread output will allow you to connect an oil pressure gauge or oil temperature gauge! Easy to install, it mounts between the spin-on oil filter housing and the engine block.
Monitoring oil temperature can be as important as monitoring pressure. High oil temp can warn you of friction (causing engine wear) or that you need a better oil cooler. Besides, extra gauges just plain look cool! Gauge BT2240-01C is used with sending unit SM-TT6811-01 and this adapter plate. This kit includes the adapter that goes between either the late type spin-on oil filter heads or the earlier canister type heads. Bolts and gaskets are supplied for both filter systems. For Mini, Sprite & Midget. (Filter heads shown in photos for demostration only - not included in the kit).
Classic Mini Oil Pressure Or Temperature Adapter

Classic Mini Oil Pressure Or Temperature Adapter

Classic Mini Oil Pressure Or Temperature Adapter

Classic Mini Oil Pressure Or Temperature Adapter

Classic Mini Oil Pressure Or Temperature Adapter

Classic Mini Oil Pressure Or Temperature Adapter

Classic Mini Oil Pressure Or Temperature Adapter
Part No: RIC925
$59.98
Qty:
Fits the following:
Classic Mini
Sprite & MG Midget
Morris Minor
The oil system in our engines is best understood when compared to the blood circulation in our body. It is extremely critical and thus we can always benefit from knowing what condition the system is in. Our Mini Mania developed adapter provides a port to allow you to set-up an auxiliary monitoring system. The pipe thread output will allow you to connect an oil pressure gauge or oil temperature gauge! Easy to install, it mounts between the spin-on oil filter housing and the engine block.

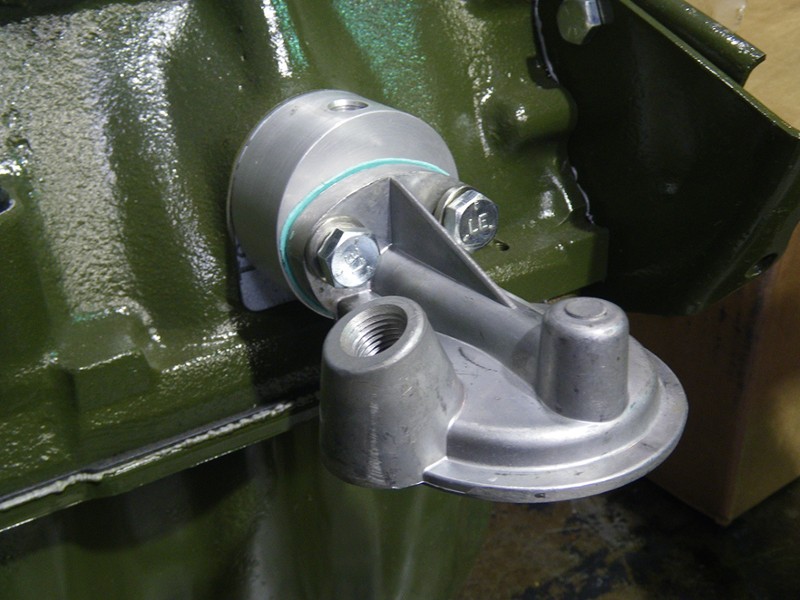

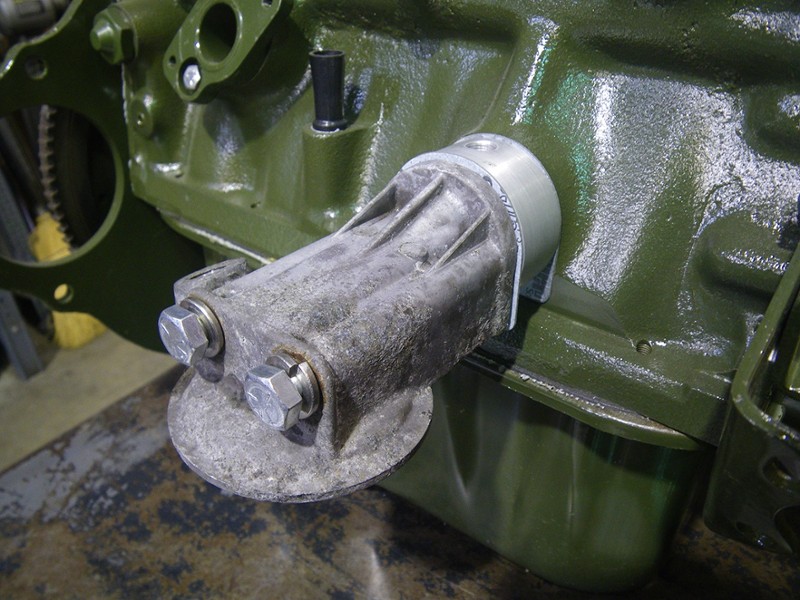

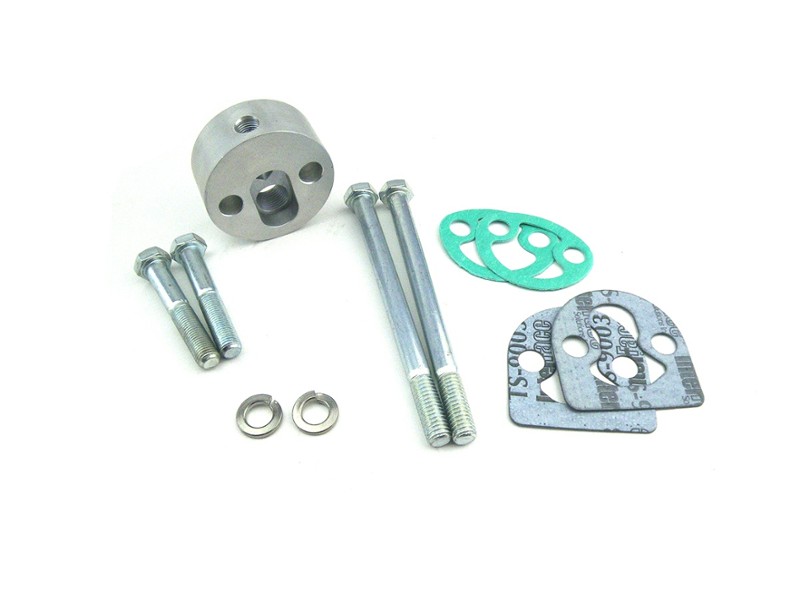

Monitoring oil temperature can be as important as monitoring pressure. High oil temp can warn you of friction (causing engine wear) or that you need a better oil cooler. Besides, extra gauges just plain look cool! Gauge BT2240-01C is used with sending unit SM-TT6811-01 and this adapter plate. This kit includes the adapter that goes between either the late type spin-on oil filter heads or the earlier canister type heads. Bolts and gaskets are supplied for both filter systems. For Mini, Sprite & Midget. (Filter heads shown in photos for demostration only - not included in the kit).


Question:
Can I fit a oil pressure switch to this plate. Want to convert to spin on filter head but don't want to loose pressure switch. Thanks.
Answer:
Hi ,  You might be able to find a pressure sensor to fit that adapter but we don't offer one. We offer the temp sender but not a pressure sender.
Mini Mania Support
