Well done. Nice color

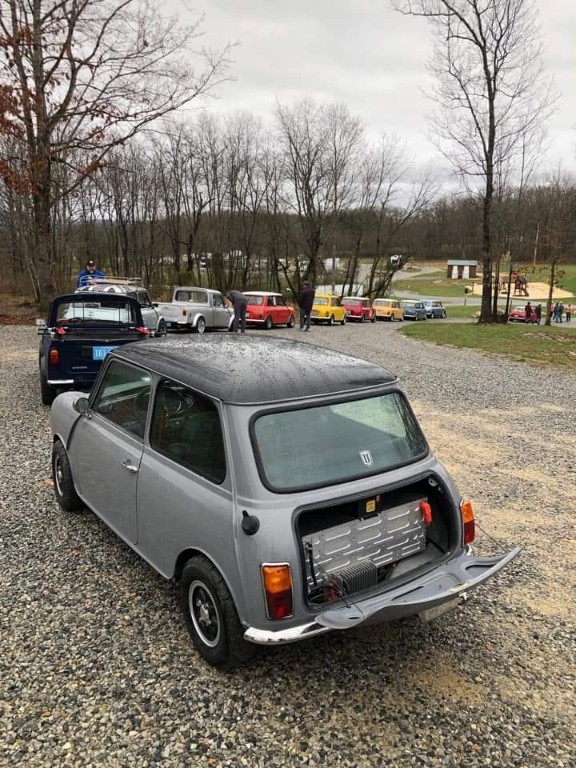

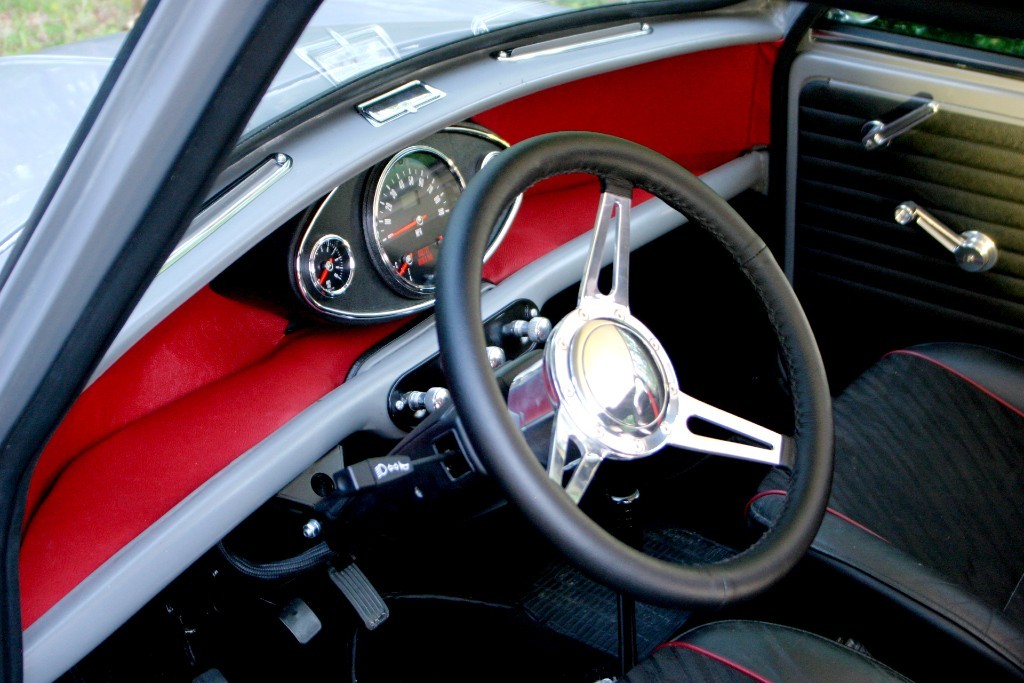

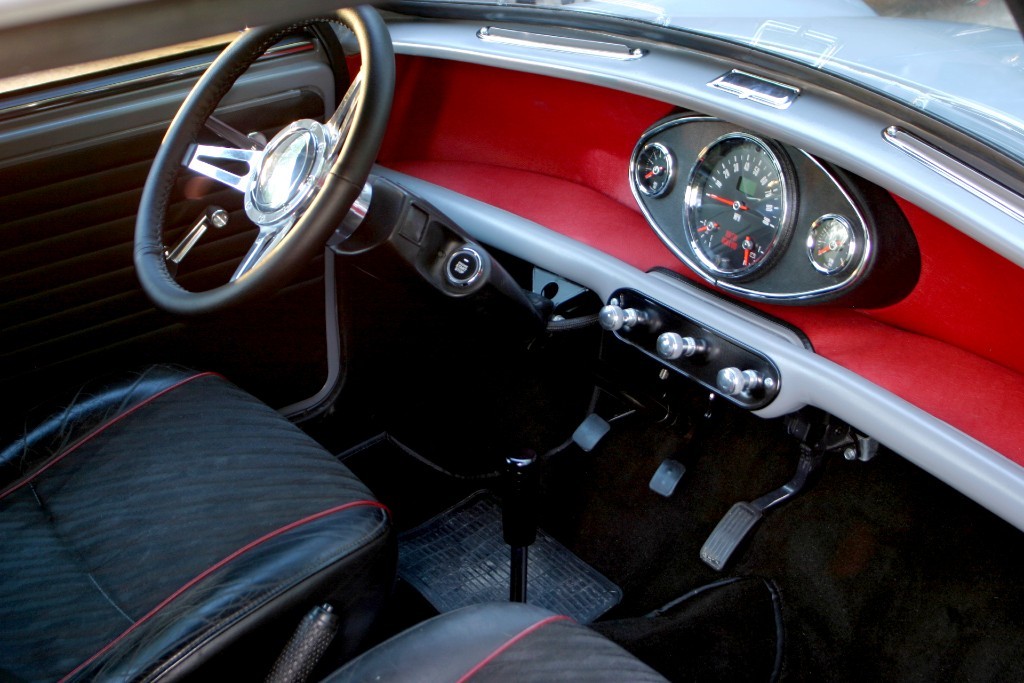

Here is a pic from the Mini 63 where it made its debut with 60 miles under its belt. Learned a bunch, received some good feedback thus far.

Martin, the honda 5 speed is to shift it just like a normal petrol engine with a trans. It keeps the motor in a better efficiency range, and allows for a much much higher top speed in simple terms. That and... well we wanted to make it a manual!

Breathtaking work, I really love it.
What operation does the gear stick/shifter perform?
Loving this project!

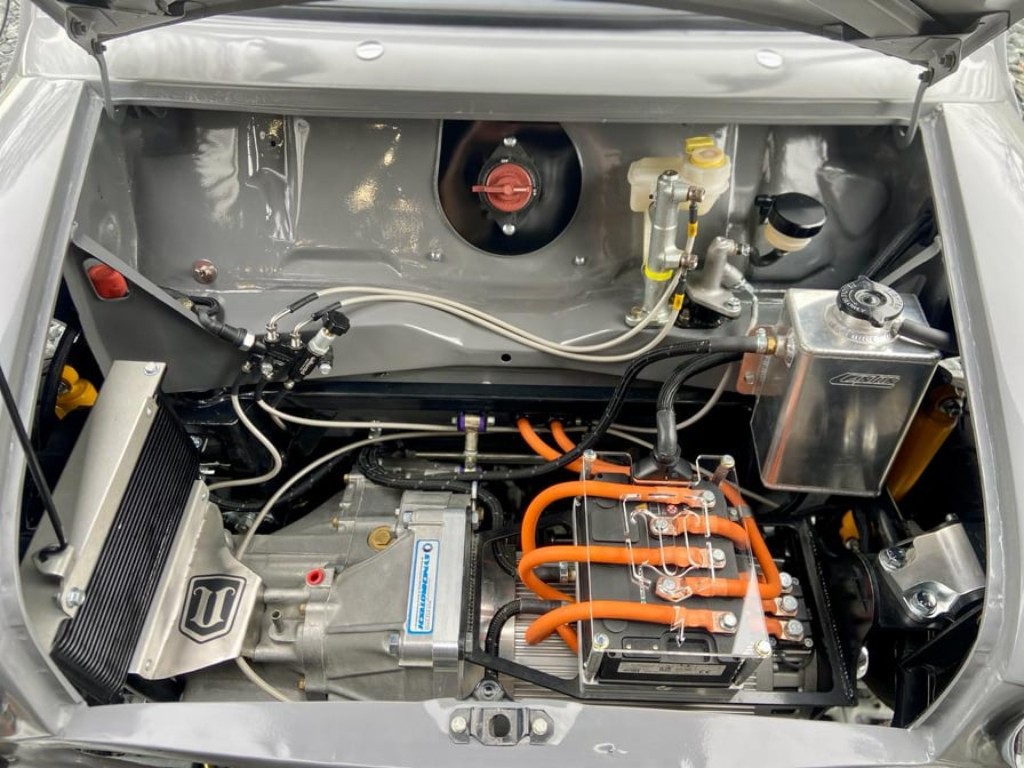

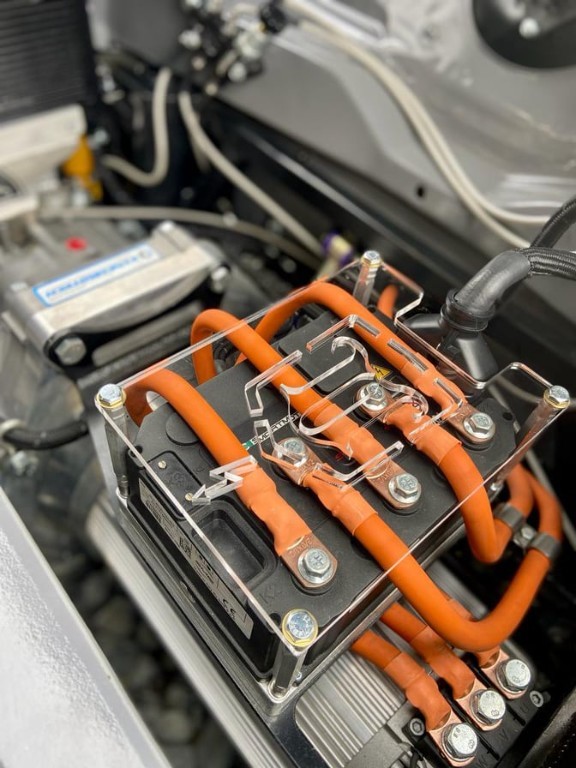

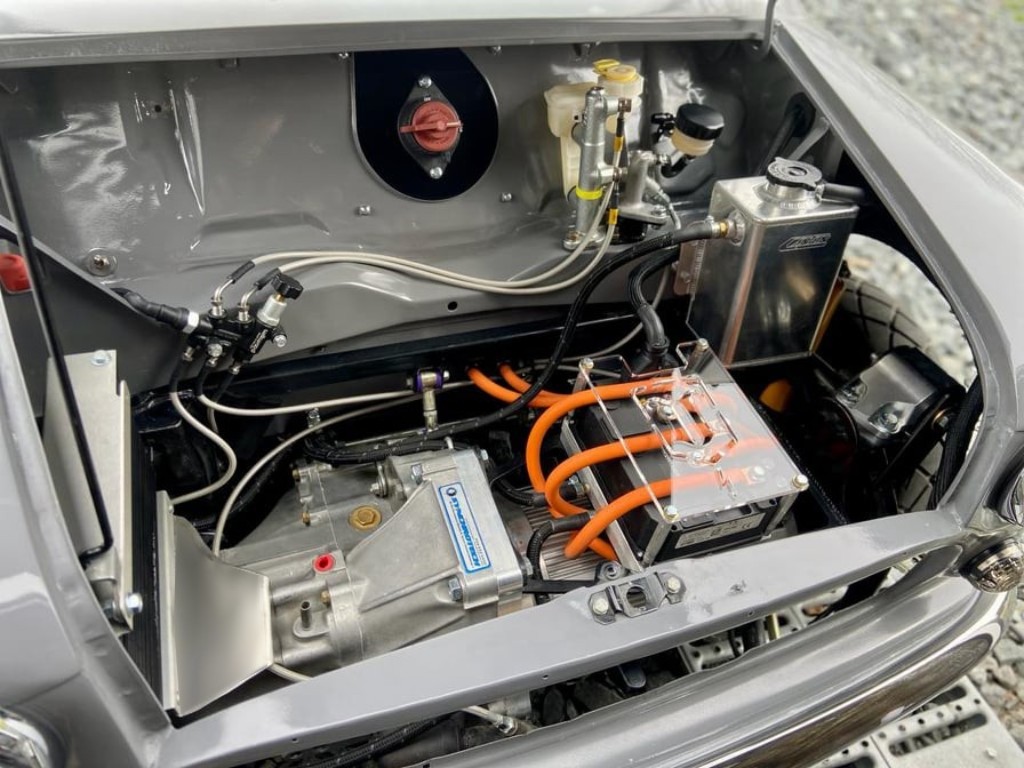

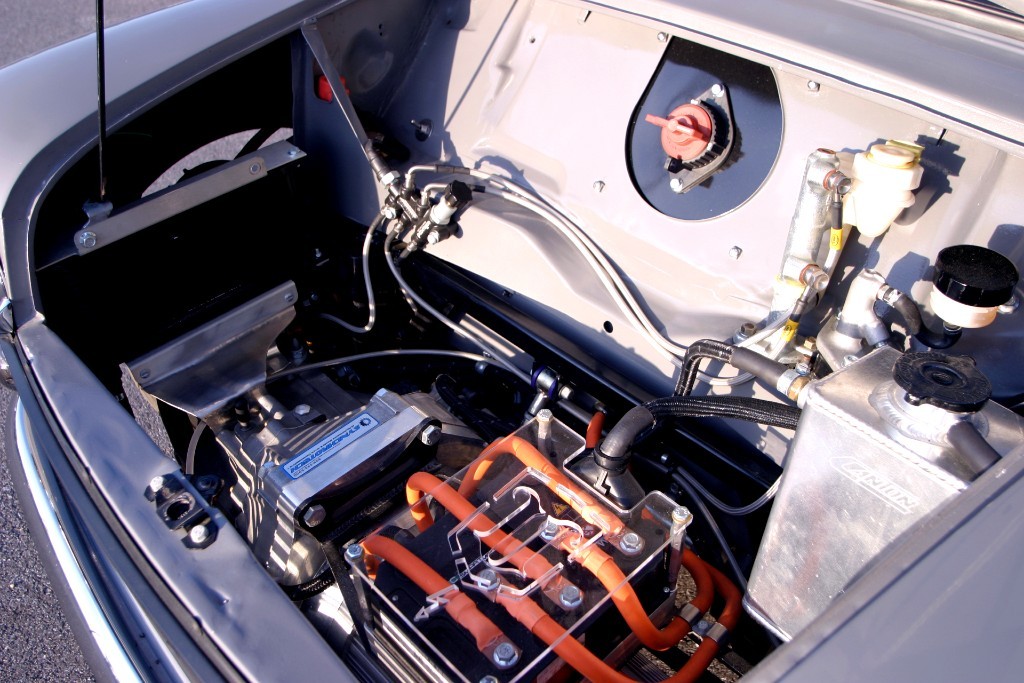

Couple photos to update this. Motor bay 99% done other then possibly fabricating some inner fenders. Took her for her first test drive yesterday, she absolutely pulls! Working with tweaking the parameters of the software right now and fine tuning. Getting really close.

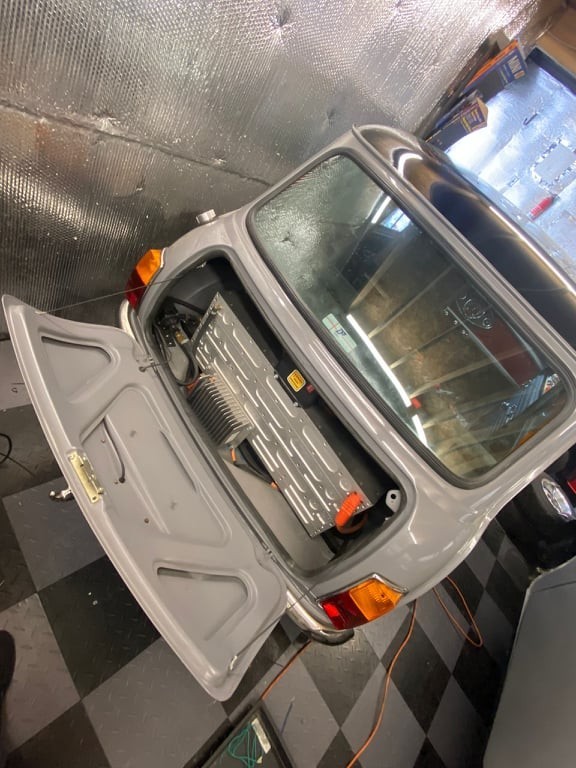

What is that large metal box in the boot?

Such a clean install! Looks fantastic

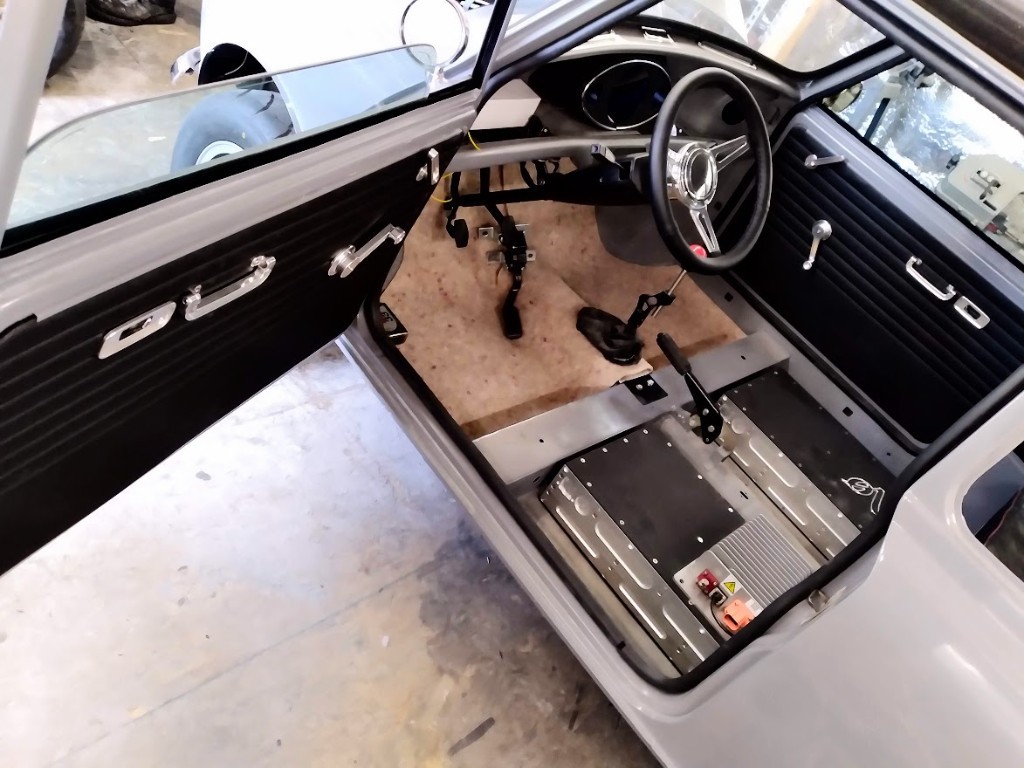

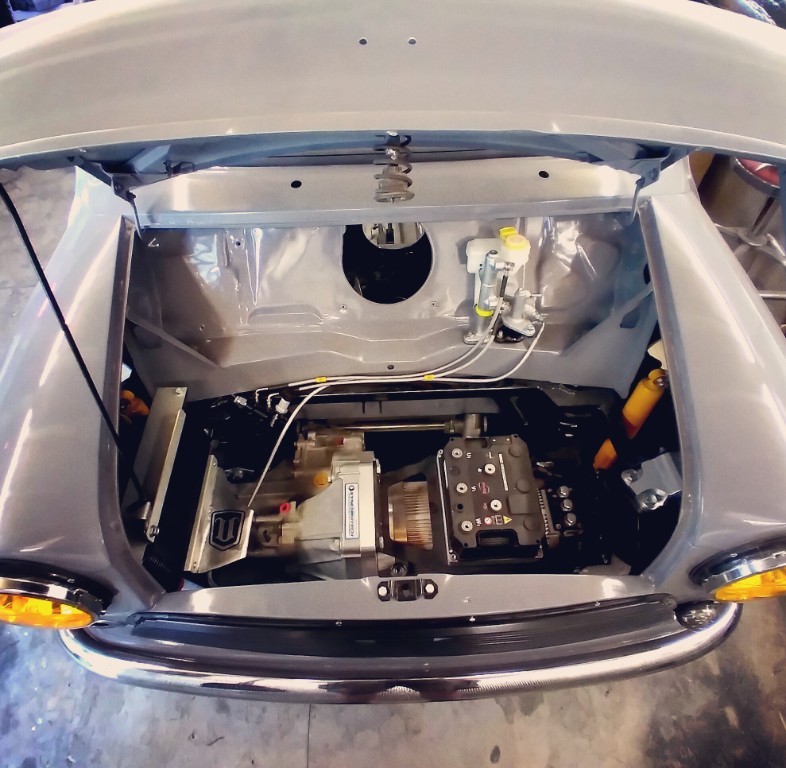

Mike, I know I owe you a call. Here is a few pictures of where we are at currently. Getting there...

Anxiously awaiting an update...hint, hint

DAMMMNNN that looks clean. Nice work, can't wait to see it finished!

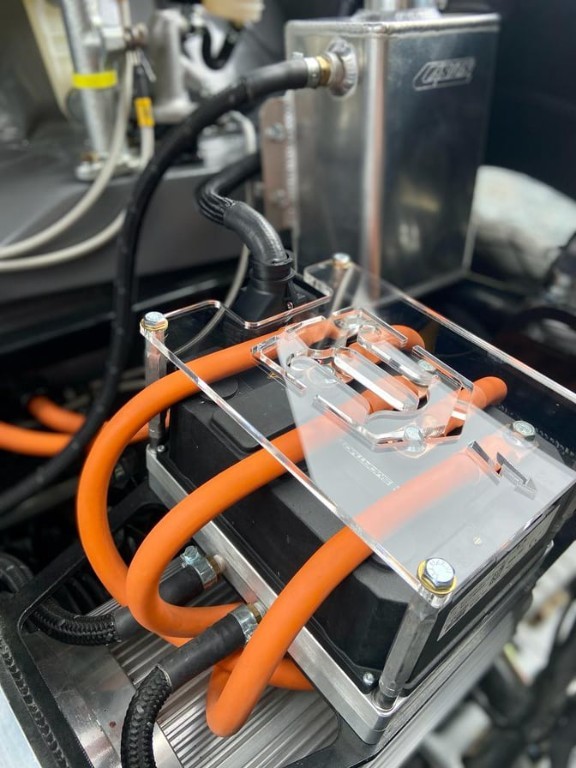

I did into the controller bracket as I was making a new round of them. Adapter plate was prototype, but will ultimately, hopefully have the crest as well, same as motor mounts... I got the proto on my shelf, she is stout to say the least, very fancy paper weight.

John, You need to mill in your Logo or signature into the the adapter plate. This is a work of art and high craftsmanship.

simply impressive, very nice work.

Well, there is 2 options:

1. Dynamic Brake Pedal Regen is pre-programmed in all HyPer 9 Clone files. To utilize Dynamic Brake Pedal Regen, a Brake Pressure Transducer must be installed in the system. This Transducer sends a 0-5V signal that the X1 controller is programmed to transfer into Brake Regen Torque.

OR (MOST LIKELY)

2. Regen on Neutral Operating Profiles
There are three Regen on Neutral values shown below are pre-programmed into HyPer 9 clone files. These values can be adjusted to suit user preference.
• Profile 1 E (End Regen) : 0% (Coast)
• Profile 2 S (Some Regen) : 28%
• Profile 3 H (High Regen) : 40%

Regardless, on a small vehicle it doesn't gain as much as you'd think. Somewhere between 5-20% Max. So 100 mile range may only increase it an additional 5-20 miles. Which is something, Tesla is only reporting between 15 and up to 32% max. Unfortunately small cars simply don’t carry much momentum and thus have less kinetic energy to convert back into the battery.

Will you be able to adjust regen when braking, or is it not adjustable?

Could be a contest? I'm still standing behind 125 to 150. But knowing me, will be hard to keep the foot off the throttle... which is getting delivered this week.

Is there a contest for guessing the real world range on this when it released in to the wild?

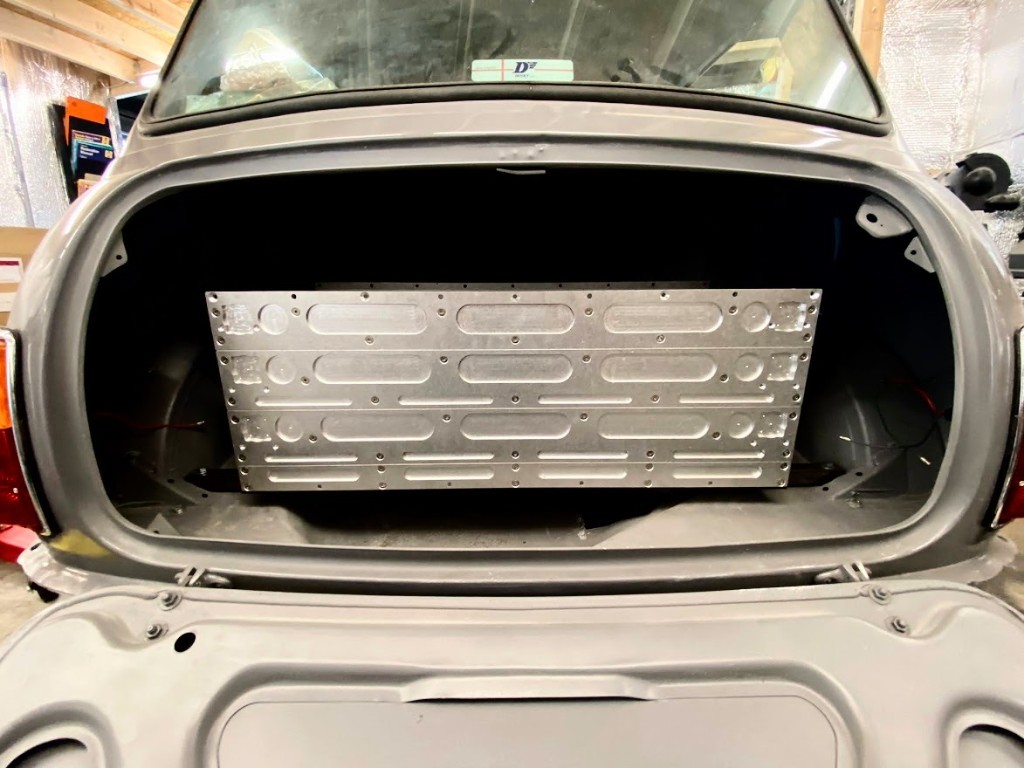

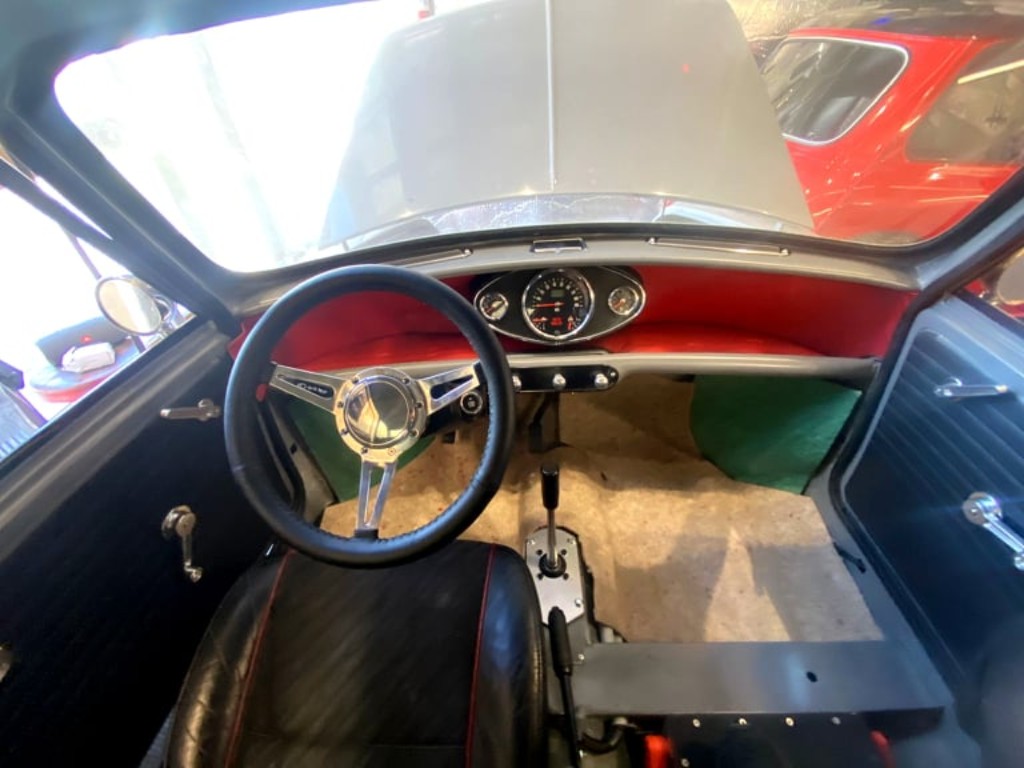

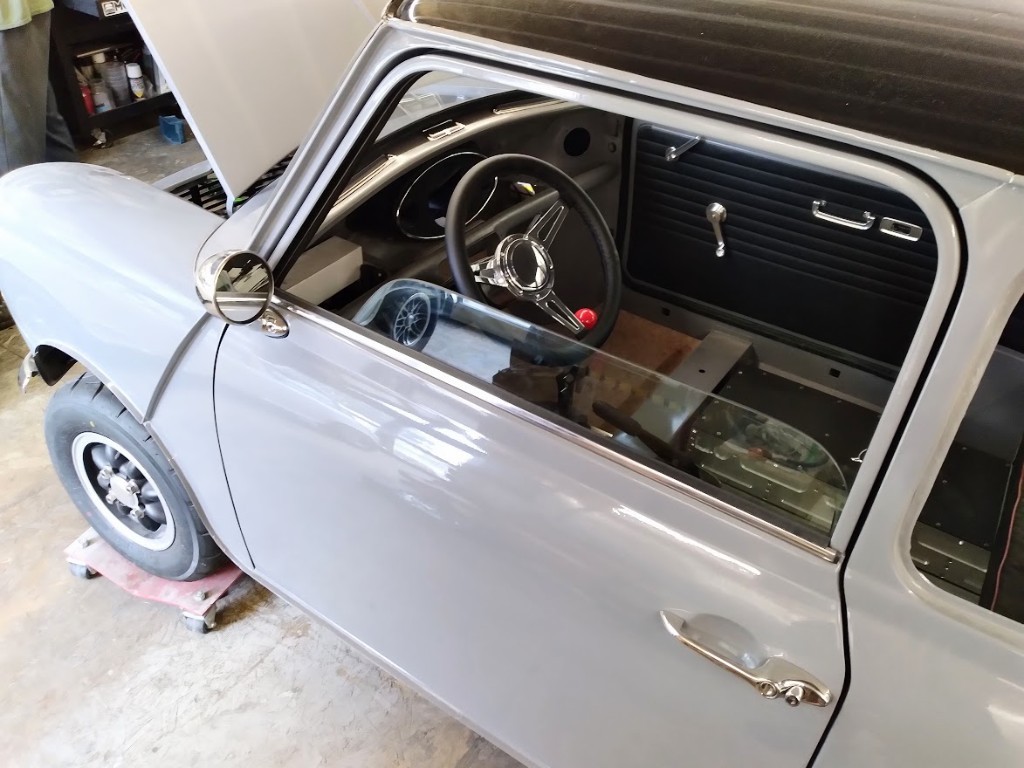

Slowly chipping away at it. It is now on 4 Rose Petals Wheels. Started installing headliner and glass, hopefully will be done tomorrow night. The Tesla Batteries are waiting for me at the freight terminal for pickup. Still keeping the build as sanitary as we can. Pretty pleased and excited with how it's shaping up, just never fast enough when you have other builds as well that need progressing.

?? Shaping up very nicely!

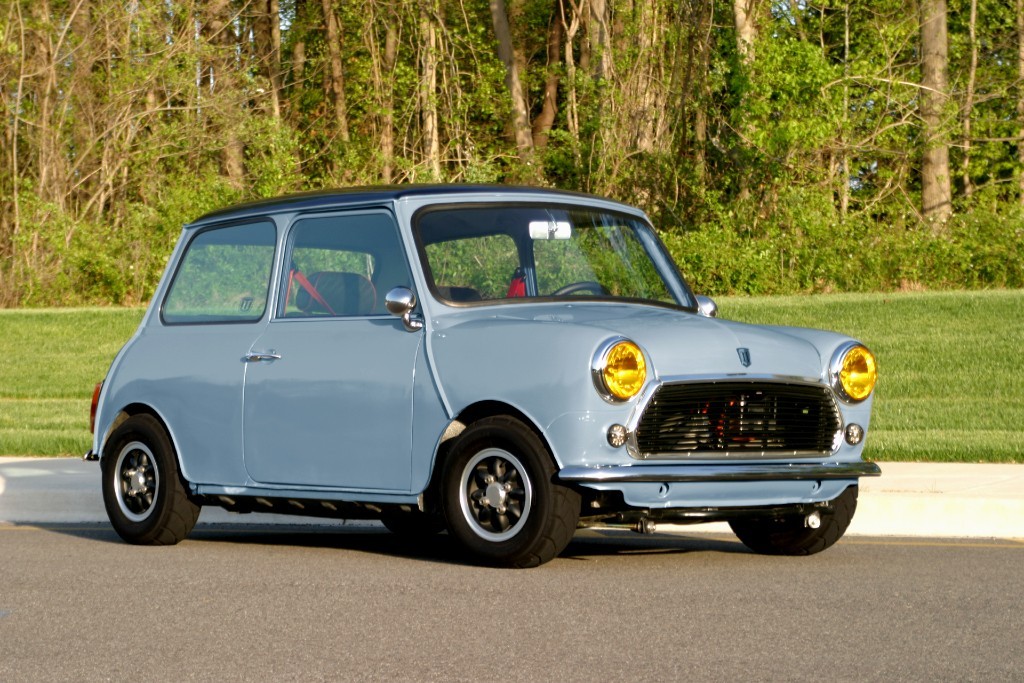

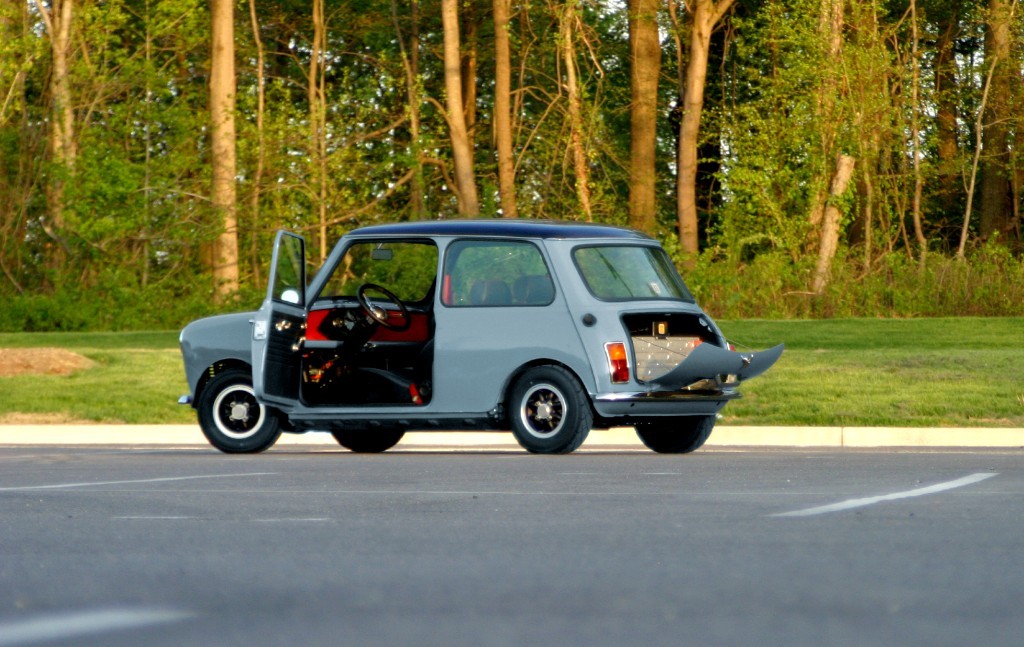

I forgot to update this thread. Have since gotten a we bit further. Fitted the front clip after smoothing most of the firewall and slam panel, and extra wiper holes, and dash pad holes, etc. Got the car in Nardo Grey, still needs to be buffed. But pretty happy with the way she turned out. Popped in some mk2 tails, and freshly rebuild rear subby. The Genuine 10" Rose Petals should be here today, and the mirrors. Really happy with the way things are shaping up. Got a bunch of parts that are trickling in. Battery enclosures, cooling system, wiring, etc up next. Gauges are done being produced, and Adam will be developing a brain box to drive all the analog looking gauges. Stay tuned.

Very impressive.
