The tie rods control braking stability and Caster! "Rose-jointed" end are the solid answer to total control! Sold with joints and in pairs. Caster Angle – viewed from the side of the car, the top ball-joint should be positioned behind the bottom one. The angle made by a line drawn through the ball-joint centres and vertical describes caster angle. It’s effect is a self-centering action that causes the car to run straight where no steering input is made and pulls the wheels back to straight ahead when exiting corners. Controlled by tie-rod length, shortening it will increase the self-centering effect, lengthening it the opposite. Increasing it also helps reduce the positive camber induced by body roll. On the downside, increasing caster decreases camber and induces body-roll by virtue of lowering the inner wheel and raising the outer wheel when cornering. Having said that, a big caster angle can cause the inner edge of the inside tyre to re-engage the ground where the wheel goes 'light' in a tight corner, helping to restore some grip. A further effect of increasing caster is a very slight lengthening of the actual wheelbase, increasing in effect as the wheels are turned on the outer side in a corner. Perhaps very slightly increasing stability.

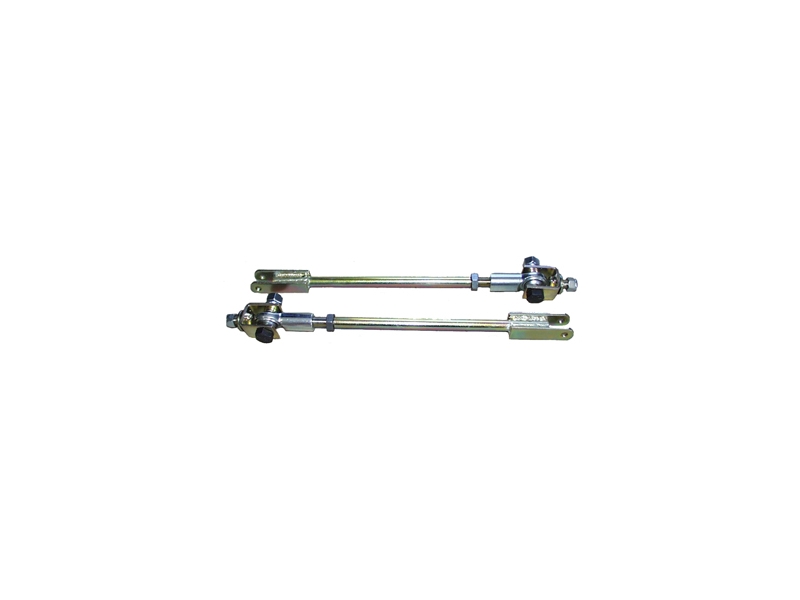

Classic Austin Mini Tie Rod Adjustable With Heim Joint One Pair

Classic Austin Mini Tie Rod Adjustable With Heim Joint One Pair

Classic Austin Mini Tie Rod Adjustable With Heim Joint One Pair
Part No: C-AJJ3365
$205.95
Qty:
Fits the following:
Classic Mini
Alternate Products
Classic Mini Tie Bar Adjustable Heavy Duty Pair
$49.95 Classic Mini Tie Bar Adjustable Heavy Duty Pair
The tie rods control braking stability and Caster! "Rose-jointed" end are the solid answer to total control! Sold with joints and in pairs. Caster Angle – viewed from the side of the car, the top ball-joint should be positioned behind the bottom one. The angle made by a line drawn through the ball-joint centres and vertical describes caster angle. It’s effect is a self-centering action that causes the car to run straight where no steering input is made and pulls the wheels back to straight ahead when exiting corners. Controlled by tie-rod length, shortening it will increase the self-centering effect, lengthening it the opposite. Increasing it also helps reduce the positive camber induced by body roll. On the downside, increasing caster decreases camber and induces body-roll by virtue of lowering the inner wheel and raising the outer wheel when cornering. Having said that, a big caster angle can cause the inner edge of the inside tyre to re-engage the ground where the wheel goes 'light' in a tight corner, helping to restore some grip. A further effect of increasing caster is a very slight lengthening of the actual wheelbase, increasing in effect as the wheels are turned on the outer side in a corner. Perhaps very slightly increasing stability.
