The "CAM003" cam has been produced by Mini Mania for well over 20 years and has been used extensively in our 1380cc engines becoming legendary in its own right. It is the ideal road cam for 1275cc or 1380cc, below 5500 rpm the CAM003 produces more power than the 286 profile. The average driver spends 90% of his use of the car below 5,500rpm. Our 'Second Generation' '003' grind is now called "CAM103". Not only does this produce over 115HP in our 1380cc motor but it is even more streetable, pulling strong from as low as 2,000 upto 6,500 with ease. All of this with stock ratio rockers and single 1 3/4" carb. One of the added features of the "CAM103" grind is the great performance in small bore applications such as 998 and 1098cc engines. Not known for their high rev potential this second generation cam provides all the bottom end you will ever need but still helps transforms the motor into a hot street version.
Not for use with Fuel Injected motors (MPI).

This cam is the hard to find pin-drive type!

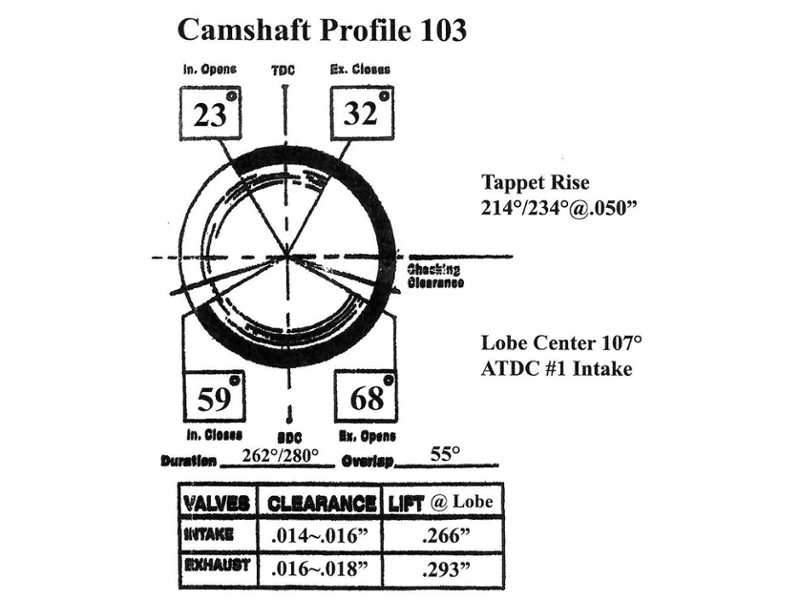

Mini Mania 'CAM103' road cam, Checking height: 0.016" @ lobe Timing: (Intake): 23/59 (Exhaust): 68/32 Nominal lobe lift: (Intake): 0.266" (Exhaust): 0.293" Valve lift with 1.5 ratio rockers is .399 intake and .440 exhaust Duration (Intake): 262 (Exhaust): 280 Lobe separation angle: 108

A-Series Second Generation Performance Camshaft | CAM103 - Pin Drive

A-Series Second Generation Performance Camshaft | CAM103 - Pin Drive

A-Series Second Generation Performance Camshaft | CAM103 - Pin Drive
Share your own image!

A-Series Second Generation Performance Camshaft | CAM103 - Pin Drive

A-Series Second Generation Performance Camshaft | CAM103 - Pin Drive

A-Series Second Generation Performance Camshaft | CAM103 - Pin Drive

Selected: 2nd Gen Pin Drive 103 Grind
Part No: CAM103
$439.95
Qty:
Specially Priced. Discounts Do Not Apply.
This Item has a $50.00 core charge.
Please Select a Car to Ensure Proper Fitment
Fits the following:
Classic Mini
Sprite & MG Midget
Morris Minor
PayPal Pay Later
Add to Wishlist
Add to Cart
Add to Cart
1 answered questions
Select variations below for more information:
2nd Gen Pin Drive 103 Grind
$439.95
CAM001S Star Drive 244/264-327
$374.98
CAM005 Pin Drive 268/278-400
$374.98
2nd Gen Star Drive 103 Grind
$362.06
2nd Gen Slot Drive 103 Grind
$354.41
CAM001M Slot Drive 244/264-327
$412.98
CAM002 Pin Drive 250/264-327
$374.98
CAM002M Slot Drive 250/264-327
$374.98
CAM004 Pin Drive 262/268-397
$374.98
CAM006 Pin Drive 288/292-400
$374.98
CAM002S Star Drive 250/264-327
$374.98
CAM006M Slot Drive 288/292-400
$374.98
CAM001 Pin Drive 244/264-327
$412.98
CAM003M Slot Drive 264/268-358
$469.95
CAM003 Pin Drive 264/268-358
$412.98
CAM003S Star Drive 264/268-358
$374.98

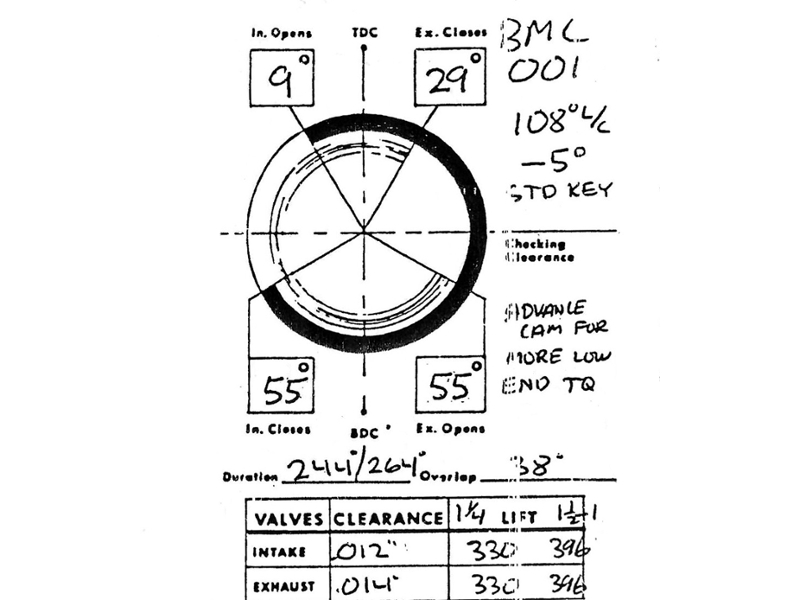

Star drive Elgin cam for mild road, smooth idle. This reground camshaft has an intake duration of 244 degrees and an exhaust duration of 264. The valve lift is .327". At TDC intake opens at 9 Deg , Exhaust closes at 29 Deg. . At BDC intake closes at 55 Deg , and exhaust opens at 55 Deg. Valve clearance intake is .012" , and exhaust is .014".
Elgin hot street cam, header recommended. 9.5:1 compression. Intake duration is 268 while the exhaust is 278 degrees. Valve lift with stock ratio rockers is .397" on the intake and .401" on the exhaust. Uprated valve springs also recommended! At  TDC intake opens at 27 Deg , and the exhaust closes at 32 Deg . At BDC intake closes at 61 Deg , and the exhaust opens at 66 Deg.  Valve clearance intake is .014 " , and the exhaust is .014 ".

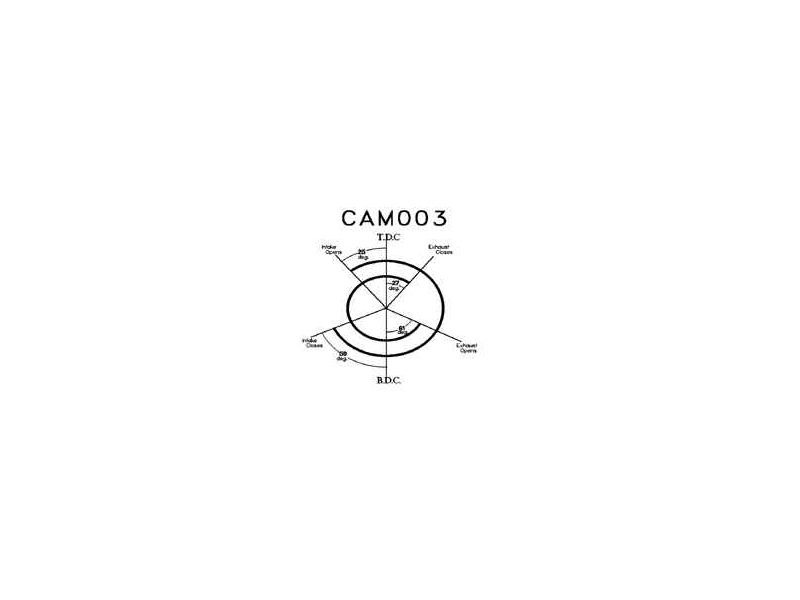

The "CAM003" cam has been produced by Mini Mania for well over 20 years and has been used extensively in our 1380cc engines becoming legendary in its own right. It is the ideal road cam for 1275cc or 1380cc, below 5500 rpm the CAM003 produces more power than the 286 profile. The average driver spends 90% of his use of the car below 5,500rpm. Our 'Second Generation' '003' grind is now called "CAM103". Not only does this produce over 115HP in our 1380cc motor but it is even more streetable, pulling strong from as low as 2,000 RPM up to 6,500 RPM with ease. All of this with stock ratio rockers and single 1 3/4" carb. One of the added features of the "CAM103" grind is the great performance in small bore applications such as 998 and 1098cc engines. Though not know for their high rev potential, 998's and 1098's with this second generation cam will have all the bottom end you will ever need transforming the engine into a hot street version.
Not for use with Fuel Injected motors (MPI).

Mini Mania 'CAM103' road cam, Checking height: 0.016" @ lobe Timing: (Intake): 23/59 (Exhaust): 68/32 Nominal lobe lift: (Intake): 0.266" (Exhaust): 0.293" Valve lift with 1.5 ratio rockers is .399 intake and .440 exhaust Duration (Intake): 262 (Exhaust): 280 Lobe separation angle: 107.
The "CAM003" cam has been produced by Mini Mania for well over 20 years and has been used extensively in our 1380cc engines becoming legendary in its own right. It is the ideal road cam for 1275cc or 1380cc, below 5500 rpm the CAM003 produces more power than the 286 profile. The average driver spends 90% of his use of the car below 5,500rpm. Our 'Second Generation' '003' grind is now called "CAM103". Not only does this produce over 115HP in our 1380cc motor but it is even more streetable, pulling strong from as low as 2,000 RPM up to 6,500 RPM with ease. All of this with stock ratio rockers and single 1 3/4" carb. One of the added features of the "CAM103" grind is the great performance in small bore applications such as 998 and 1098cc engines. Though not know for their high rev potential, 998's and 1098's with this second generation cam will have all the bottom end you will ever need transforming the engine into a hot street version.
Not for use with Fuel Injected motors (MPI).

Mini Mania 'CAM103' road cam, Checking height: 0.016" @ lobe Timing: (Intake): 23/59 (Exhaust): 68/32 Nominal lobe lift: (Intake): 0.266" (Exhaust): 0.293" Valve lift with 1.5 ratio rockers is .399 intake and .440 exhaust Duration (Intake): 262 (Exhaust): 280 Lobe separation angle: 107.
Slot drive Elgin cam for mild road, smooth idle. This reground camshaft has an intake duration of 244 degrees and an exhaust duration of 264. The valve lift is .327". At TDC intake opens at 9 Deg , Exhaust closes at 29 Deg. . At BDC intake closes at 55 Deg , and exhaust opens at 55 Deg. Valve clearance intake is .012" , and exhaust is .014" .
Pin drive Elgin cam, one up from Cooper 'S' spec. Duration of the intake is 250 degrees, the exhaust is 264. Valve lift is .312" on intake and .327" on exhaust assuming 1.25/stock ratio rockers. At TDC intake opens at 16 Deg. , Exhaust closes at 29 Deg. At BDC intake closes at 62  Deg, and Exhaust opens at 55 Deg.
Slot drive Elgin cam, one up from Cooper 'S' spec. Duration of the intake is 250 degrees, the exhaust is 264. Valve lift is .312" on intake and .327" on exhaust assuming 1.25/stock ratio rockers. At TDC intake opens at 16 Deg. , Exhaust closes at 29 Deg. At BDC intake closes at 62  Deg, and Exhaust opens at 55 Deg.
Elgin fast road cam-9.1:1 compression recommended. At TDC intake opens at 27 Deg , and exhaust closes at 27 Deg . At BDC intake closes at 61 Deg , and exhaust opens at 61 Deg. Valve clearance is intake .014 " and the exhaust is .014 ".
Elgin autocross cam. 11:1 compression, pump gas OK. At TDC intake opens at 36 Deg. , and the Exhaust  closes at 38 Deg. At BDC intake closes at 72 Deg , and the rxhaust opens at 74 Deg. Valve clearance intake is .010 " , and exhaust is .014".
Star drive Elgin cam, one up from Cooper 'S' spec. Duration of the intake is 250 degrees, the exhaust is 264. Valve lift is .312" on intake and .327" on exhaust assuming 1.25/stock ratio rockers. At TDC intake opens at 16 Deg. , Exhaust closes at 29 Deg. At BDC intake closes at 62  Deg, and Exhaust opens at 55 Deg.
Elgin autocross cam. 11:1 compression, pump gas OK. At TDC intake opens at 36 Deg. , and the Exhaust  closes at 38 Deg. At BDC intake closes at 72 Deg , and the rxhaust opens at 74 Deg. Valve clearance intake is .010 " , and exhaust is .014".
Pin drive Elgin cam for mild road, smooth idle. This reground camshaft has an intake duration of 244 degrees and an exhaust duration of 264. The valve lift is .327". At TDC intake opens at 9 Deg , Exhaust closes at 29 Deg. . At BDC intake closes at 55 Deg , and exhaust opens at 55 Deg. Valve clearance intake is .012" , and exhaust is .014" .
The secret of the 115HP, 1380cc motors! Mini Mania with aid of Dema Elgin designed a series of cams some years ago! These cams are US made and are of unequalled consistency and quality.One of the designs was for a mid range camshaft that truly tries to please everyone. This cam has a 264 degree intake and a 268 degree exhaust duration and intake valve lift of .327" with an exhaust lift of .358". Elgin cams are not as cheap as some competitors, but we believe that the quality is worth it! Fits any 1275cc! . At TDC intake opens at 25 Deg . , and exhaust closes at 27 Deg . At BDC intake closes at 59 Deg , and exhaust opens at 61 Deg.  Valve clearance intake is .014" and  exhaust is .016 ".

NOTE: Pin drive cams will require sending in a suitable core for regrinding as these cams are becoming more and more scarce.
The secret of the 115HP, 1380cc motors! Mini Mania with aid of Dema Elgin designed a series of cams some years ago! These cams are US made and are of unequalled consistency and quality.One of the designs was for a mid range camshaft that truly tries to please everyone. This cam has a 264 degree intake and a 268 degree exhaust duration and intake valve lift of .327" with an exhaust lift of .358". Elgin cams are not as cheap as some competitors, but we believe that the quality is worth it! Fits any 1275cc! . At TDC intake opens at 25 Deg . , and exhaust closes at 27 Deg . At BDC intake closes at 59 Deg , and exhaust opens at 61 Deg.  Valve clearance intake is .014" and  exhaust is .016 ".

NOTE: Pin drive cams will require sending in a suitable core for regrinding as these cams are becoming more and more scarce.
The secret of the 115HP, 1380cc motors! Mini Mania with aid of Dema Elgin designed a series of cams some years ago! These cams are US made and are of unequalled consistency and quality.One of the designs was for a mid range camshaft that truly tries to please everyone. This cam has a 264 degree intake and a 268 degree exhaust duration and intake valve lift of .327" with an exhaust lift of .358". Elgin cams are not as cheap as some competitors, but we believe that the quality is worth it! Fits any 1275cc! . At TDC intake opens at 25 Deg . , and exhaust closes at 27 Deg . At BDC intake closes at 59 Deg , and exhaust opens at 61 Deg.  Valve clearance intake is .014" and  exhaust is .016 ".

NOTE: Pin drive cams will require sending in a suitable core for regrinding as these cams are becoming more and more scarce.

The "CAM003" cam has been produced by Mini Mania for well over 20 years and has been used extensively in our 1380cc engines becoming legendary in its own right. It is the ideal road cam for 1275cc or 1380cc, below 5500 rpm the CAM003 produces more power than the 286 profile. The average driver spends 90% of his use of the car below 5,500rpm. Our 'Second Generation' '003' grind is now called "CAM103". Not only does this produce over 115HP in our 1380cc motor but it is even more streetable, pulling strong from as low as 2,000 upto 6,500 with ease. All of this with stock ratio rockers and single 1 3/4" carb. One of the added features of the "CAM103" grind is the great performance in small bore applications such as 998 and 1098cc engines. Not known for their high rev potential this second generation cam provides all the bottom end you will ever need but still helps transforms the motor into a hot street version.
Not for use with Fuel Injected motors (MPI).

This cam is the hard to find pin-drive type!

Mini Mania 'CAM103' road cam, Checking height: 0.016" @ lobe Timing: (Intake): 23/59 (Exhaust): 68/32 Nominal lobe lift: (Intake): 0.266" (Exhaust): 0.293" Valve lift with 1.5 ratio rockers is .399 intake and .440 exhaust Duration (Intake): 262 (Exhaust): 280 Lobe separation angle: 108

. FAQ Have a Question or Comment of your own? Click here!


Question:
I have an Hif 44 carb on a 1275 engine. The carb has a red spring, .100 main jet and BDL needle. Is this suitable for use with a cam103 and 1.5 lifters?
Answer:
That would be a good needle to start with and it will probably work just fine. As with most SU carbs, you have to have a starting point and then you can try different needles either richer or leaner according to your need.

Mini Mania Tech Team
