Installation Instructions

Remove grille and overriders (if fitted the overriders can't be refitted) Remove the center fixing nut from the bumper, fit the center support bracket using the bumper nut and washer, bending the bracket towards the apron mark off and drill hole after offering bar up.
Loosely assemble the 2 end brackets and then check alignment. The right angled sections of the brackets bolt to the front panel and lower part of the apron. The grille then needs cutting away at the bottom to slide down over the 2 outer brackets. On MK2/3 grilles the bottom finisher needs cutting away the width of the outer bar brackets and then upwards,usually to the first slat on 11 wide slat grille or about 25mm. Try not to cut all the way through the grille back panel as it supports the slats. The grille then slides down over the two outer brackets and the grille modifications are rarely noticed.

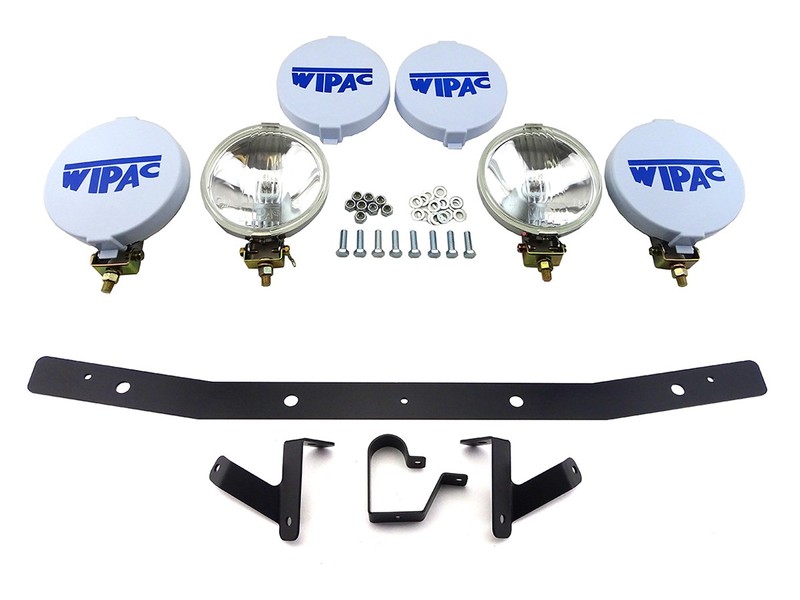

Contents:
Lamp Bar
Right Hand Bracket
Left Hand Bracket
Center Bracket
