Fits all minis except Autos and those with hardy spicer joints, has no lug on as required for rod change L/H side. Sold singly.

The Mini transmission output side cover is notorious for leaking oil, but replacing the seal doesn't help for long if the bronze bush is worn too. If the cover is warped across the gasket surface you can also forget getting the diff shimmed correctly! . These might be marked as 22G420 on the casting but they have the correct size bush and seal hole.47.3mm o/d seal-31.5mm i/d bush whereas the true 22G420 has a 50mm o/d oil seal and bush size 34.8mm

For Hardy Spicer S type gearboxes, see side covers 22G420.

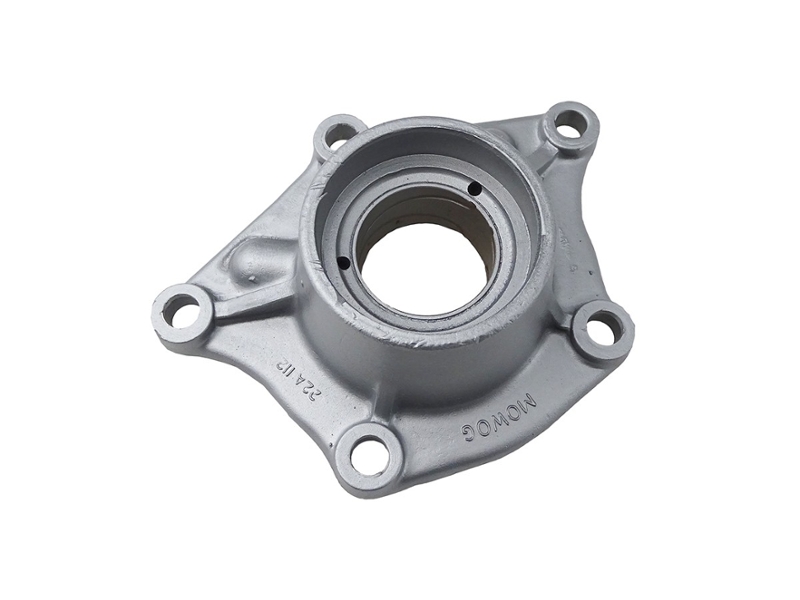

Classic Mini Rod Change Differential Side Cover Without Lug Left Hand

Classic Mini Rod Change Differential Side Cover Without Lug Left Hand

Classic Mini Rod Change Differential Side Cover Without Lug Left Hand
Part No: CHM85
$122.95
Qty:
Fits the following:
Classic Mini

Fits all minis except Autos and those with hardy spicer joints, has no lug on as required for rod change L/H side. Sold singly.

The Mini transmission output side cover is notorious for leaking oil, but replacing the seal doesn't help for long if the bronze bush is worn too. If the cover is warped across the gasket surface you can also forget getting the diff shimmed correctly! . These might be marked as 22G420 on the casting but they have the correct size bush and seal hole.47.3mm o/d seal-31.5mm i/d bush whereas the true 22G420 has a 50mm o/d oil seal and bush size 34.8mm

For Hardy Spicer S type gearboxes, see side covers 22G420.

Loading...
Loading...
Loading...
Related Technical Articles:
Classic Mini Cooper Differential Parts & Starters.Generators - 45
Created: December 28, 2018
Complete selection of differential final drive ratios plus all the couplings for all 1959 thru 2000 models. Starter, starter solenoids, Alternators and Generators also available for the same models. Technical information is available on line or on the phone.
Classic Mini Limited Slip Diffs; parts for installation
Created: October 16, 2000
Fitting an LSD isn't as simple as replacing the diff cage unit. In all cases a certain degree of diff housing modifications is needed - material needing to be ground/filed away to provide clearance for larger diff housing cases and crown wheel bolts. Although it has to be said the Quaife diff is supposed to fit without these mods. I've never found that.
