MINI Factory replacement Timing Chain and related components. All items sold each.

Fits the following Cooper S models with the N14 engine:

2007-2010 R56 Cooper S Hardtop
2008-2010 R55 Cooper S Clubman
2009-2010 R57 Cooper S Convertible

Also fits JCW models with the N14 engine.

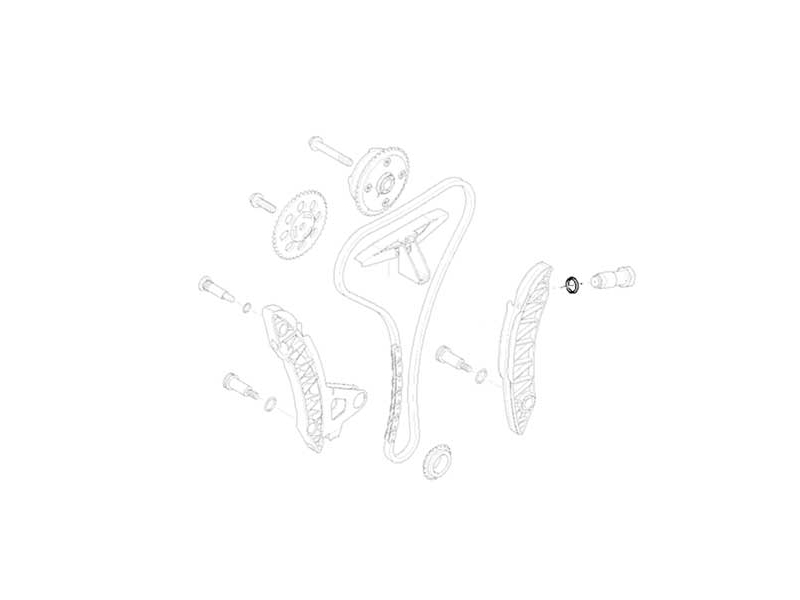

Choose from:

[1] Timing Chain
[2] Guide Rail
[3] Chain Tensioner Guide
[4] Chain Tensioner Bolt/Plunger
[5] Gasket for Bolt/Plunger
[6] Timing Chain Lower Sprocket
[9] Bolt for Upper 'Fixed' Timing Chain Sprocket
[10] Bolt for Upper 'Ajustable' Timing Chain Sprocket
[11] Slide Rail for Timing Chain
[13] Bearing Bolt for upper Guide Rail
[14] Gasket for upper Guide Rail Bolt
[15] Bearing Bolt for lower Guide Rail and Tensioner (2 required)
[16] O-Ring for lower Bearing Bolt (2 required)

For a complete Timing Chain Repair Kit, see G2NMK3300-P.

For the Valve Cover Gasket Set, see G2NME3300-P.

For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317

MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE

 GEN1 YEARS PARTS KITS

 Hardtop

  2002-2006 NME9602-P NMK9600-P

 Convertible

  2005-2008

 GEN2 YEARS PARTS KITS
 Cooper non-S  2007-2016 G2NME3321-P G2NMK3300-P
 Cooper S    2007-2010 G2NME3301-P
 2011-2016 G2NME3358-P



Tightening Torques

Item Engine Thread Tightening Specifications Torque
Valve cover to cylinder head N12, N14, N16, N18 M6 x 30   10 Nm
Guide rail to crankcase N12, N14, N16, N18 M8 x 1.25 Replace sealing ring 24 Nm
Guide rail to cylinder head N12, N14, N16, N18 M14 x 1.5 Replace sealing ring 20 Nm
Chain tensioner to cylinder head N12, N14, N16, N18 M22 x 1.5 Do not retighten the chain tensioner 80 Nm
      Replace sealing ring
VANOS to inlet and exhaust camshafts N12, N16, N18 M10 x 52 Replace screw
      Jointing torque 20 Nm
      Angle of rotation 180°
VANOS to inlet camshaft N14 M10 x 52 Replace screw
      Jointing torque 20 Nm
      Angle of rotation 180°
Sprocket wheel to exhaust camshafts N14 M10 x 30 Replace screw
      Jointing torque 20 Nm
      Angle of rotation 90°
Torsion damper (hub) to crankshaft N12, N14, N16, N18 M8 x 16   28 Nm





MINI Cooper S Timing Chain Parts N14 OEM Gen2 R55 R56 R57 2007-2010

MINI Cooper S Timing Chain Parts N14 OEM Gen2 R55 R56 R57 2007-2010

MINI Cooper S Timing Chain Parts N14 OEM Gen2 R55 R56 R57 2007-2010
Share your own image!

MINI Cooper S Timing Chain Parts N14 OEM Gen2 R55 R56 R57 2007-2010

MINI Cooper S Timing Chain Parts N14 OEM Gen2 R55 R56 R57 2007-2010

MINI Cooper S Timing Chain Parts N14 OEM Gen2 R55 R56 R57 2007-2010

Select a Item below for more info:
4-Timing Chain Tensioner Bolt/Plunger
$94.13
2-Timing Chain Guide Rail
$58.72
3-Timing Chain Tensioner Guide
$46.28
6-Timing Chain Lower Sprocket
$34.55
10-Bolt for Adj Cam Sprocket
$7.16
9-Fixed Sprocket Bolt
$7.30
15-Bearing Bolt Lwr Tensioner / Guide Rail
$28.58
11-Slide Rail
$55.95
14-Gasket Bearing Bolt Uppr Guide Rail
$1.50
1-Timing Chain
$112.58

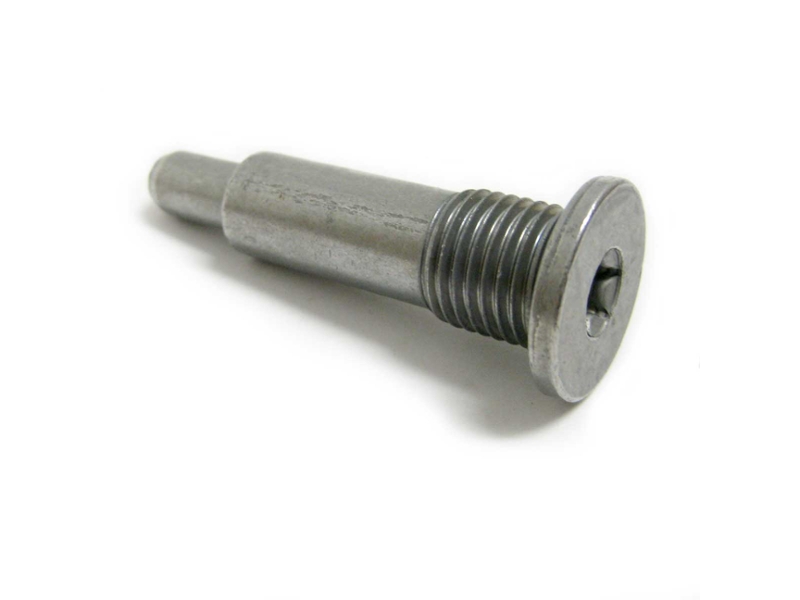

13-Bearing Bolt Upper Guide Rail
$22.52

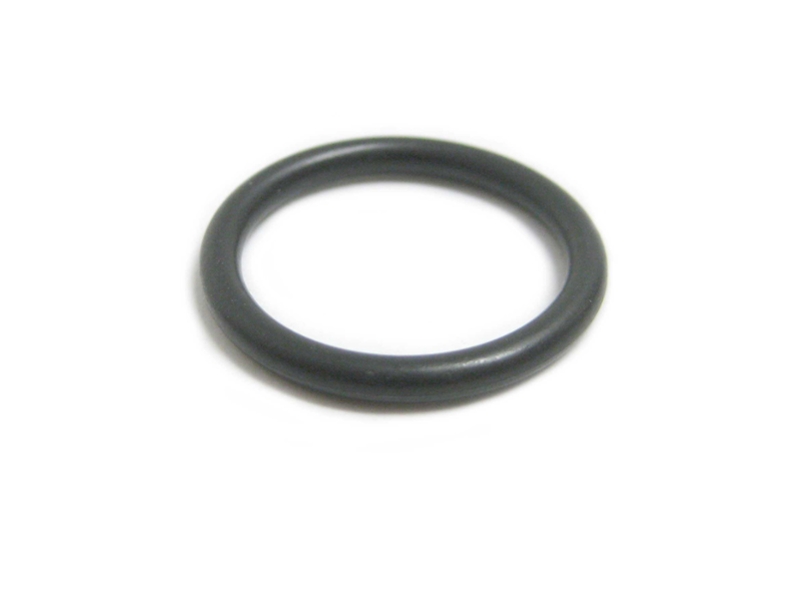

16- O-Ring Bearing Bolt Lwr Guide Rail & Tensioner
$5.90
Factory OEM original Timing Chain Tensioner Guide Bolt/Plunger. All items sold each.

Fits the following Cooper S models with the N14 engine:

2007-2010 R56 MINI Cooper S Hatchback
2008-2010 R55 MINI Cooper S Clubman
2009-2010 R57 MINI Cooper S Convertible



The Torque Spec Of This Tensioner

  • Chain tensioner to cylinder head
  • N14 5
  • Replace sealing ring
  • 80 Nm

Chain Tensioner Bolt/Plunger for Other Engines

For Cooper non-S with the N12 or N16 engines, see MINI Cooper Timing Chain Tensioner N12 N16 OEM Gen2

For Cooper S with the N18 engine, see MINI Cooper Timing Chain Tensioner N18 OEM Gen2

For other Timing Chain related components, part G2NME3301-P.

For a complete Timing Chain Repair Kit, part G2NMK3300.

For the Valve Cover Gasket Set, part G2NME3300-P.

For the Vibration Damper (Crank Pulley) Bolt, part G2NME3317.

  •

Mini Factory Timing Chain Parts - Application Guide



 GEN1 YEARS PARTS KITS

 Hardtop

  2002-2006 NME9602-P NMK9600-P

 Convertible

  2005-2008

 GEN2 YEARS PARTS KITS
 Cooper non-S  2007-2016 G2NME3321-P G2NMK3300-P
 Cooper S    2007-2010 G2NME3301-P
 2011-2016 G2NME3358-P



If your MINI is experiencing the 'cold start rattle', see our article MINI Cooper S Cold Start Rattle Gen2.

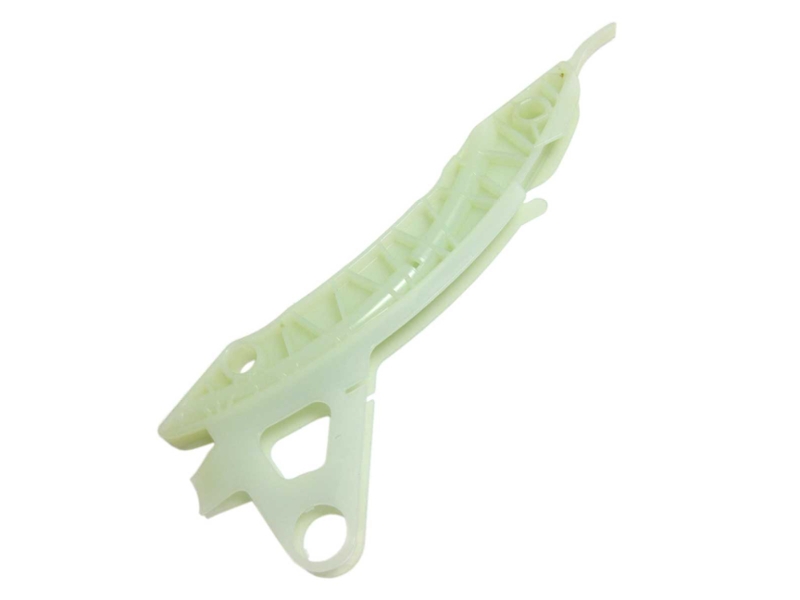

Factory Original OEM Timing Chain Guide Rail. All items sold each.

Fits the following Cooper S models with the N14 engine:

2007-2010 R56 Cooper S Hatchback
2008-2010 R55 Cooper S CLUBMAN
2009-2010 R57 Cooper S Convertible

2011-07/2012 R58 JCW Cooper S Coupe
2012-07/2012 R59 JCW Cooper S Roadster

For other Timing Chain related components, part G2NME3301-P.

For a complete Timing Chain Repair Kit, part G2NMK3300.

For the Valve Cover Gasket Set, part G2NME3300-P.

For the Vibration Damper (Crank Pulley) Bolt, part G2NME3317.

MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE

 GEN1 YEARS PARTS KITS

 Hardtop

  2002-2006 NME9602-P NMK9600-P

 Convertible

  2005-2008

 GEN2 YEARS PARTS KITS
 Cooper non-S  2007-2016 G2NME3321-P G2NMK3300-P
 Cooper S    2007-2010 G2NME3301-P
 2011-2016 G2NME3358-P

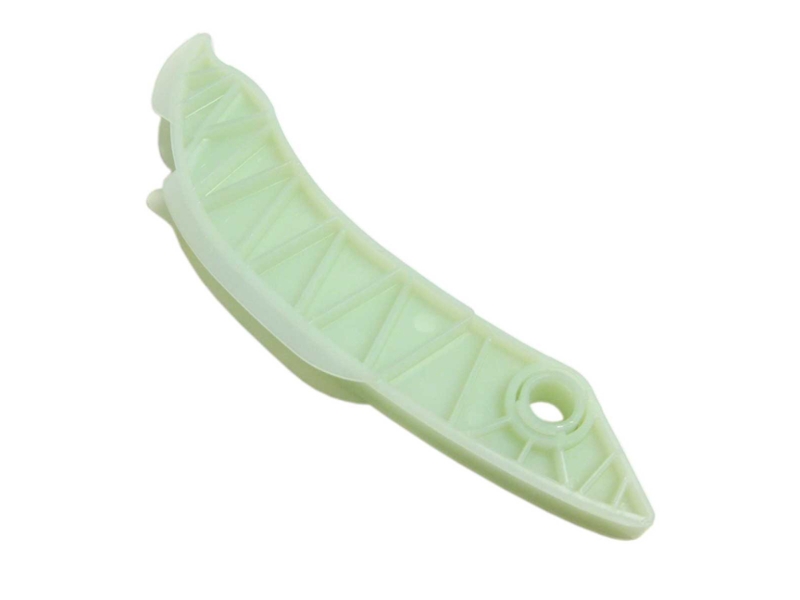

Factory Original OEM Timing Chain Tensioner Guide Rail. All items sold each.

Fits the following Cooper S models with the N14 engine:

2007-2010 R56 Cooper S Hatchback
2008-2010 R55 Cooper S CLUBMAN
2009-2010 R57 Cooper S Convertible

2011-07/2012 R58 JCW Cooper S Coupe
2012-07/2012 R59 JCW Cooper S Roadster

For other Timing Chain related components, part G2NME3301-P.

For a complete Timing Chain Repair Kit, part G2NMK3300.

For the Valve Cover Gasket Set, part G2NME3300-P.

For the Vibration Damper (Crank Pulley) Bolt, part G2NME3317.

MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE

 GEN1 YEARS PARTS KITS

 Hardtop

  2002-2006 NME9602-P NMK9600-P

 Convertible

  2005-2008

 GEN2 YEARS PARTS KITS
 Cooper non-S  2007-2016 G2NME3321-P G2NMK3300-P
 Cooper S    2007-2010 G2NME3301-P
 2011-2016 G2NME3358-P

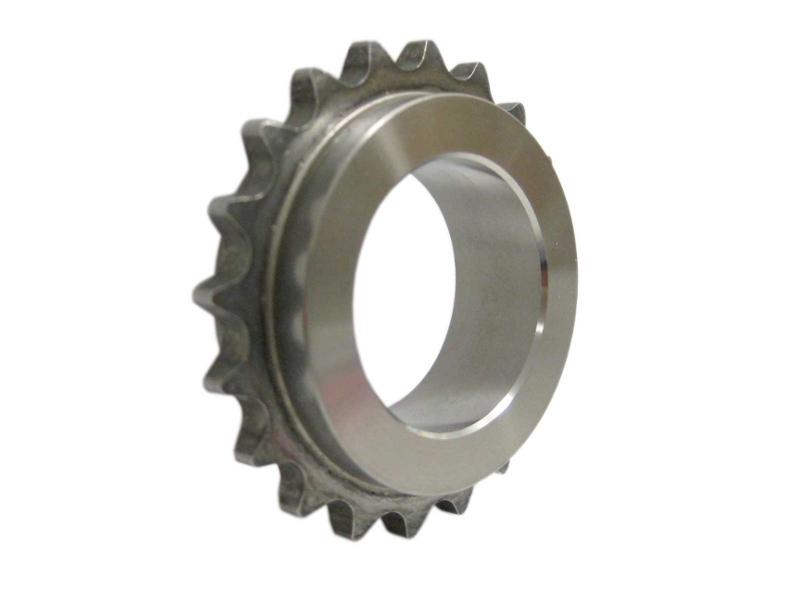

Factory OEM replacement Timing Chain Lower Sprocket. All items sold each.


Fits the following Cooper S models with the N14 engine:

2007-2010 R56 Cooper S Hatchback
2008-2010 R55 Cooper S Clubman
2009-2010 R57 Cooper S Convertible

For other Timing Chain related components, see G2NME3301-P.

For a complete Timing Chain Repair Kit, see G2NMK3300.

For the Valve Cover Gasket Set, see G2NME3300-P.

For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.

MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE

 GEN1 YEARS PARTS KITS

 Hardtop

  2002-2006 NME9602-P NMK9600-P

 Convertible

  2005-2008

 GEN2 YEARS PARTS KITS
 Cooper non-S  2007-2016 G2NME3321-P G2NMK3300-P
 Cooper S    2007-2010 G2NME3301-P
 2011-2016 G2NME3358-P

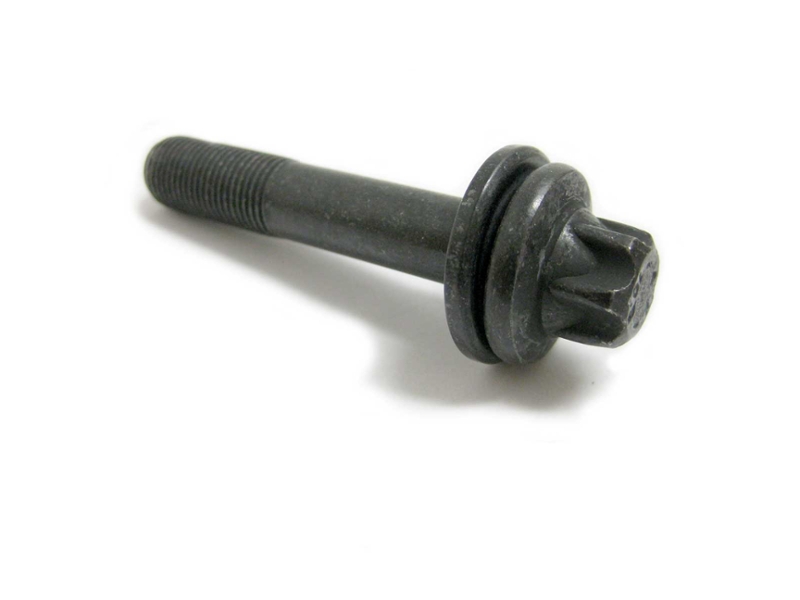

Factory OEM replacement Bolt for Timing Chain Upper Adjustable Intake Camshaft Sprocket. All items sold each.  M10 x 1 x 52

Fits the following Cooper S models with the N14 engine:

2007-2010 R56 Cooper S Hatchback
2008-2010 R55 Cooper S Clubman
2009-2010 R57 Cooper S Convertible

NOTE: The Cooper uses this same bolt on both intake and exhaust adjustable sprockets. The Cooper S uses this bolt on the adjustable intake sprocket only - the Cooper S exhaust sprocket is a fixe sprocket (non-adjustable).

For other Timing Chain related components, see G2NME3301-P.

For a complete Timing Chain Repair Kit, see G2NMK3300.

For the Valve Cover Gasket Set, see G2NME3300-P.

For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.

MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE

 GEN1 YEARS PARTS KITS

 Hardtop

  2002-2006 NME9602-P NMK9600-P

 Convertible

  2005-2008

 GEN2 YEARS PARTS KITS
 Cooper non-S  2007-2016 G2NME3321-P G2NMK3300-P
 Cooper S    2007-2010 G2NME3301-P
 2011-2016 G2NME3358-P

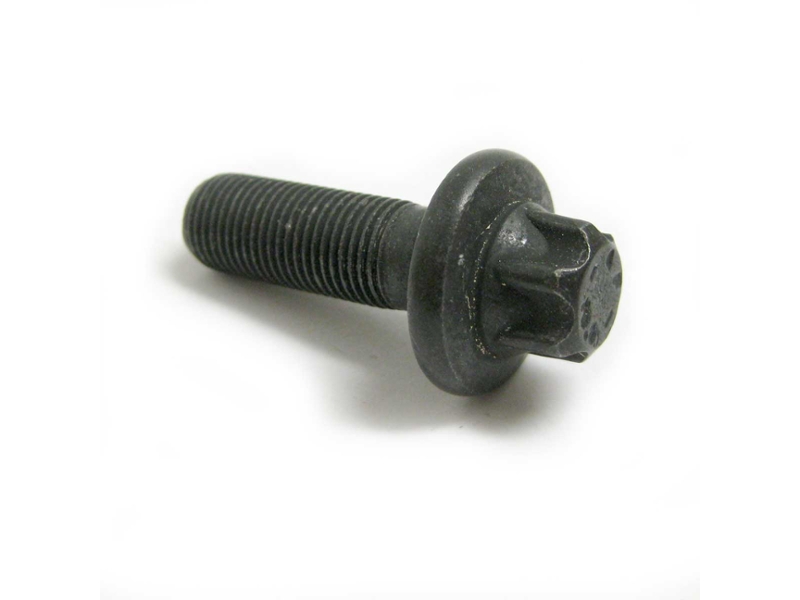

Factory OEM replacement Bolt for Timing Chain Upper 'Fixed' (non-adjustable) Exhaust Sprocket. All items sold each.

Fits the following Cooper S models with the N14 engine:

2007-2010 R56 Cooper S Hatchback
2008-2010 R55 Cooper S CLUBMAN
2009-2010 R57 Cooper S Convertible

2011-07/2012 R58 JCW Cooper S Coupe
2012-07/2012 R59 JCW Cooper S Roadster

For other Timing Chain related components, see G2NME3301-P.

For a complete Timing Chain Repair Kit, see G2NMK3300.

For the Valve Cover Gasket Set, see G2NME3300-P.

For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.

MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE

 GEN1 YEARS PARTS KITS

 Hardtop

  2002-2006 NME9602-P NMK9600-P

 Convertible

  2005-2008

 GEN2 YEARS PARTS KITS
 Cooper non-S  2007-2016 G2NME3321-P G2NMK3300-P
 Cooper S    2007-2010 G2NME3301-P
 2011-2016 G2NME3358-P

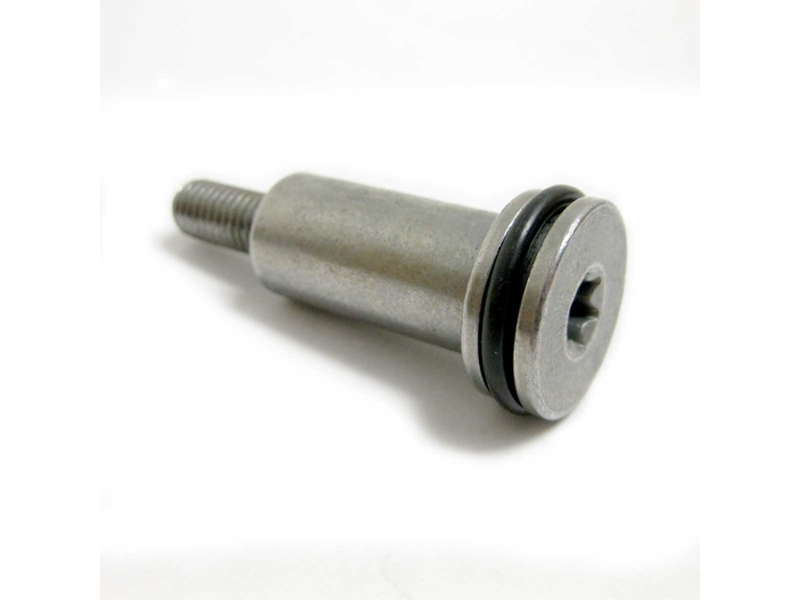

Factory replacement OEM Bearing Bolt for the Lower Chain Tensioner and Guide Rail. Sold each - 2 required per car.

Fits the following Cooper S models with the N14 engine:

2007-2010 R56 Cooper S Hatchback
2008-2010 R55 Cooper S Clubman
2009-2010 R57 Cooper S Convertible

For other Timing Chain related components, see G2NME3301-P.

For a complete Timing Chain Repair Kit, see G2NMK3300.

For the Valve Cover Gasket Set, see G2NME3300-P.

For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.

MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE

 GEN1 YEARS PARTS KITS

 Hardtop

  2002-2006 NME9602-P NMK9600-P

 Convertible

  2005-2008

 GEN2 YEARS PARTS KITS
 Cooper non-S  2007-2016 G2NME3321-P G2NMK3300-P
 Cooper S    2007-2010 G2NME3301-P
 2011-2016 G2NME3358-P

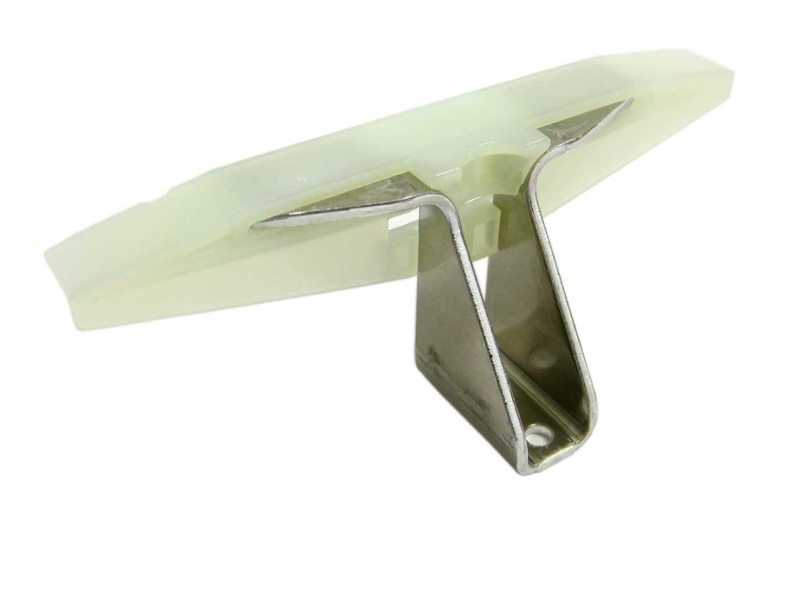

Factory Original Timing Chain Slide Rail. All items sold each.

Fits the following Cooper S models with the N14 engine:

2007-2010 R56 Cooper S Hatchback
2008-2010 R55 Cooper S Clubman
2009-2010 R57 Cooper S Convertible

2011-07/2012 R58 JCW Cooper S Coupe
2012-07/2012 R59 JCW Cooper S Roadster

For other Timing Chain related components, part G2NME3301-P.

For a complete Timing Chain Repair Kit, part G2NMK3300.

For the Valve Cover Gasket Set, part G2NME3300-P.

For the Vibration Damper (Crank Pulley) Bolt, part G2NME3317.

MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE

 GEN1 YEARS PARTS KITS

 Hardtop

  2002-2006 NME9602-P NMK9600-P

 Convertible

  2005-2008

 GEN2 YEARS PARTS KITS
 Cooper non-S  2007-2016 G2NME3321-P G2NMK3300-P
 Cooper S    2007-2010 G2NME3301-P
 2011-2016 G2NME3358-P

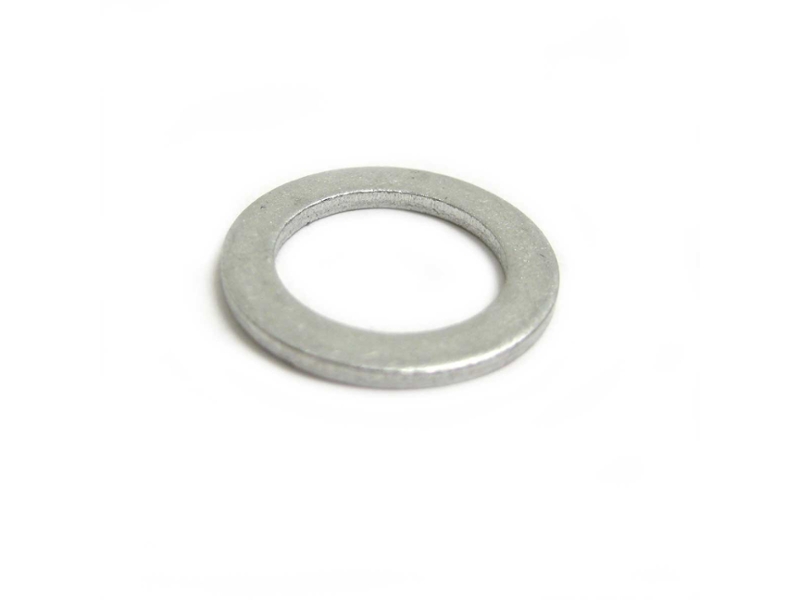

Factory replacement Bearing Bolt Gasket for the Upper Guide Rail. All items sold each.

Fits the following Cooper S models with the N14 engine:

2007-2010 R56 MINI Cooper S Hatchback
2008-2010 R55 MINI Cooper S Clubman
2009-2010 R57 MINI Cooper S Convertible

For other Timing Chain related components, see G2NME3301-P.

For a complete Timing Chain Repair Kit, see G2NMK3300.

For the Valve Cover Gasket Set, see G2NME3300-P.

For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.

MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE

 GEN1 YEARS PARTS KITS

 Hardtop

  2002-2006 NME9602-P NMK9600-P

 Convertible

  2005-2008

 GEN2 YEARS PARTS KITS
 Cooper non-S  2007-2016 G2NME3321-P G2NMK3300-P
 Cooper S    2007-2010 G2NME3301-P
 2011-2016 G2NME3358-P





Factory OEM replacement Timing Chain. All items sold each.

Fits the following Cooper S models with the N14 engine:

2007-2010 R56 Cooper S Hatchback
2008-2010 R55 Cooper S CLUBMAN
2009-2010 R57 Cooper S Convertible

2011-07/2012 R58 JCW Cooper S Coupe
2012-07/2012 R59 JCW Cooper S Roadster

For other Timing Chain related components, part G2NME3301-P.

For a complete Timing Chain Repair Kit, part G2NMK3300.

For the Valve Cover Gasket Set, part G2NME3300-P.

For the Vibration Damper (Crank Pulley) Bolt, part G2NME3317.



MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE

 GEN1 YEARS PARTS KITS

 Hardtop

  2002-2006 NME9602-P NMK9600-P

 Convertible

  2005-2008

 GEN2 YEARS PARTS KITS
 Cooper non-S  2007-2016 G2NME3321-P G2NMK3300-P
 Cooper S    2007-2010 G2NME3301-P
 2011-2016 G2NME3358-P





Factory OEM replacement Bearing Bolt for the Guide Rail. All items sold each.

Fits the following Cooper S models with the N14 engine:

2007-2010 R56 Cooper S Hatchback
2008-2010 R55 Cooper S Clubman
2009-2010 R57 Cooper S Convertible

For other Timing Chain related components, see G2NME3301-P.

For a complete Timing Chain Repair Kit, see G2NMK3300.

For the Valve Cover Gasket Set, see G2NME3300-P.

For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.

MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE

 GEN1 YEARS PARTS KITS

 Hardtop

  2002-2006 NME9602-P NMK9600-P

 Convertible

  2005-2008

 GEN2 YEARS PARTS KITS
 Cooper non-S  2007-2016 G2NME3321-P G2NMK3300-P
 Cooper S    2007-2010 G2NME3301-P
 2011-2016 G2NME3358-P





Factory replacement OEM Bearing Bolt Gasket for the Lower Chain Tensioner and Guide Rail. Sold each - 2 required per car.

Fits the following MINI Cooper S models with the N14 engine:

2007-2010 R56 MINI Cooper S Hatchback
2008-2010 R55 MINI Cooper S Clubman
2009-2010 R57 MINI Cooper S Convertible

For other Timing Chain related components, see G2NME3301-P.

For a complete Timing Chain Repair Kit, see G2NMK3300.

For the Valve Cover Gasket Set, see G2NME3300-P.

For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.

MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE

 GEN1 YEARS PARTS KITS

 Hardtop

  2002-2006 NME9602-P NMK9600-P

 Convertible

  2005-2008

 GEN2 YEARS PARTS KITS
 Cooper non-S  2007-2016 G2NME3321-P G2NMK3300-P
 Cooper S    2007-2010 G2NME3301-P
 2011-2016 G2NME3358-P





Factory replacement Timing Chain Bolt/Plunger Gasket. All items sold each.

Fits the following Cooper S models with the N14 engine:

2007-2010 R56 Cooper S Hatchback
2008-2010 R55 Cooper S CLUBMAN
2009-2010 R57 Cooper S Convertible

For other Timing Chain related components, see G2NME3301-P.

For a complete Timing Chain Repair Kit, see G2NMK3300.

For the Valve Cover Gasket Set, see G2NME3300-P.

For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.

MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE

 GEN1 YEARS PARTS KITS

 Hardtop

  2002-2006 NME9602-P NMK9600-P

 Convertible

  2005-2008

 GEN2 YEARS PARTS KITS
 Cooper non-S  2007-2016 G2NME3321-P G2NMK3300-P
 Cooper S    2007-2010 G2NME3301-P
 2011-2016 G2NME3358-P





MINI Factory replacement Timing Chain and related components. All items sold each.

Fits the following Cooper S models with the N14 engine:

2007-2010 R56 Cooper S Hardtop
2008-2010 R55 Cooper S Clubman
2009-2010 R57 Cooper S Convertible

Also fits JCW models with the N14 engine.

Choose from:

[1] Timing Chain
[2] Guide Rail
[3] Chain Tensioner Guide
[4] Chain Tensioner Bolt/Plunger
[5] Gasket for Bolt/Plunger
[6] Timing Chain Lower Sprocket
[9] Bolt for Upper 'Fixed' Timing Chain Sprocket
[10] Bolt for Upper 'Ajustable' Timing Chain Sprocket
[11] Slide Rail for Timing Chain
[13] Bearing Bolt for upper Guide Rail
[14] Gasket for upper Guide Rail Bolt
[15] Bearing Bolt for lower Guide Rail and Tensioner (2 required)
[16] O-Ring for lower Bearing Bolt (2 required)

For a complete Timing Chain Repair Kit, see G2NMK3300-P.

For the Valve Cover Gasket Set, see G2NME3300-P.

For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317

MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE

 GEN1 YEARS PARTS KITS

 Hardtop

  2002-2006 NME9602-P NMK9600-P

 Convertible

  2005-2008

 GEN2 YEARS PARTS KITS
 Cooper non-S  2007-2016 G2NME3321-P G2NMK3300-P
 Cooper S    2007-2010 G2NME3301-P
 2011-2016 G2NME3358-P



Tightening Torques

Item Engine Thread Tightening Specifications Torque
Valve cover to cylinder head N12, N14, N16, N18 M6 x 30   10 Nm
Guide rail to crankcase N12, N14, N16, N18 M8 x 1.25 Replace sealing ring 24 Nm
Guide rail to cylinder head N12, N14, N16, N18 M14 x 1.5 Replace sealing ring 20 Nm
Chain tensioner to cylinder head N12, N14, N16, N18 M22 x 1.5 Do not retighten the chain tensioner 80 Nm
      Replace sealing ring
VANOS to inlet and exhaust camshafts N12, N16, N18 M10 x 52 Replace screw
      Jointing torque 20 Nm
      Angle of rotation 180°
VANOS to inlet camshaft N14 M10 x 52 Replace screw
      Jointing torque 20 Nm
      Angle of rotation 180°
Sprocket wheel to exhaust camshafts N14 M10 x 30 Replace screw
      Jointing torque 20 Nm
      Angle of rotation 90°
Torsion damper (hub) to crankshaft N12, N14, N16, N18 M8 x 16   28 Nm





. FAQ Have a Question or Comment of your own? Click here!
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Related Technical Articles:
FInd the correct MINI Cooper Timing Chain Factory Replacement
FInd the correct MINI Cooper Timing Chain Factory Replacement
Created: July 08, 2015
Mini Cooper Timing Chain MINI factory replacement parts. The Timing Chain and related components are typically replaced during an engine overhaul, or if the timing chain 'stretches' beyond acceptable limits. When this happens, the timing chain will start to make 'rattling' sounds.
Read Complete Article
Mini Cooper S Cold Start Rattle Gen2
Mini Cooper S Cold Start Rattle Gen2
Created: July 02, 2015
Mini Cooper Cold Start Rattle. Some of the early production Mini Cooper S models have been known to exhibit the 'Cold Start Rattle'. This typically occurs when the engine is cold and makes the sounds like an old diesel engine upon startup.
Read Complete Article
MINI Cooper Engine Comparison N14 vs N18
MINI Cooper Engine Comparison N14 vs N18
Created: March 05, 2015
The Mini Cooper engine comparison allows for a better understanding of the N14 and N18 engines from BMW
Read Complete Article
Mini Cooper Timing Chains
Created: October 02, 2014
MINI Cooper Timing chain replacement is a fact of life in the MINI. We make it safe and easy with genuine factory parts for all years and models- ask the pros at MiniMania.com
Read Complete Article
