Fits the following models:
2015-2019 F55 MINI Cooper and Cooper S Hardtop 4-Door

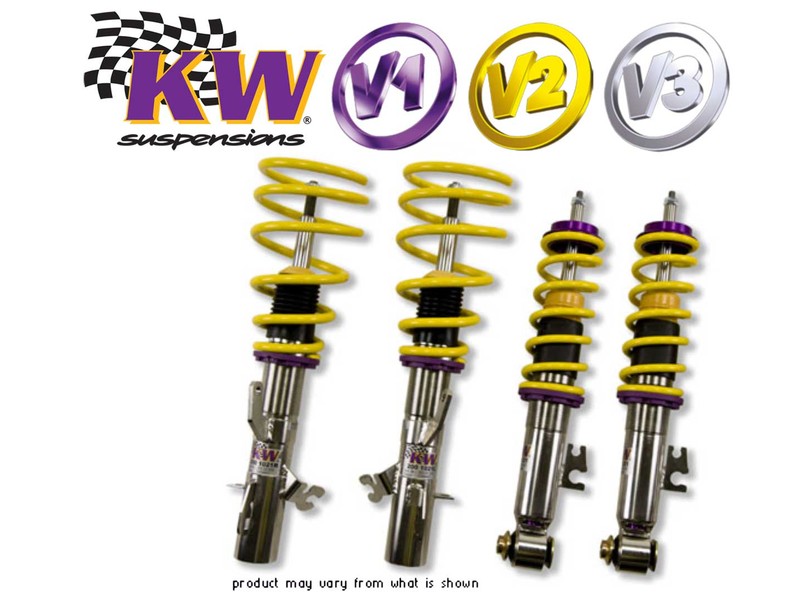

Available in three Variants:
- Variant 1 - Sporty, Balanced with KW factory pre-set dampening
- Variant 2 - Sporty and personalized with adjustable rebound dampening
- Variant 3 - Race technology for the road with adjustable compression and rebound dampening
There are two different version for each Variant:
- For MINIs without Dynamic Damper Control option
- For MINIs with Dynamic Damper Control including EDC Cancellation Kit
APPLICATION CHART
| VARIANT | w/o Dynamic Damper Control | w/ Dynamic Damper Control |
| Variant 1 | G3NMS3110 | G3NMS3111 |
| Variant 2 | G3NMS3112 | G3NMS3113 |
| Variant 3 | G3NMS3114 | G3NMS3115 |
Select accordingly

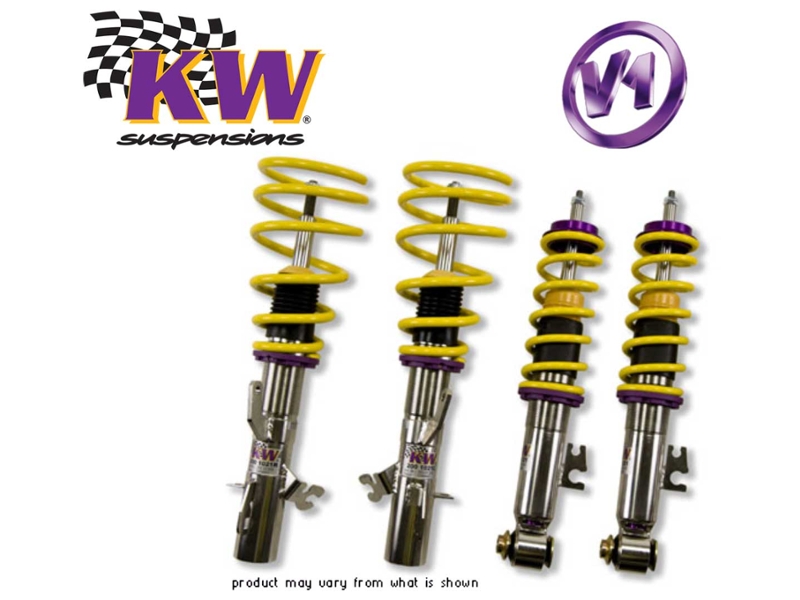

KW Variant 1
Sporty, Balanced with KW factory pre-set dampening
The ideal system for customers wishing to rely on the experience of our engineers to set the damper setting, yet determine their own degree of lowering. In extensive driving tests our engineers have set the dampers for the best balance between sporty driving, comfort and safety. The user is then free to decide the best height setting for their use and preference.
FEATURES
- Optimally adjusted, sporty and comfortable dampening technology
- Inox-line stainless steel technology at no extra charge
- Individually height adjustable
- German TUEV-tested lowering range
- High-quality components for long life
- Comprehensive documentation for ease of use
Lowering
Front: 0.8" to 1.8"
Rear: 1.2" to 2.6"
KW Variant 2
Sporty and personalized with adjustable rebound dampening
This system intended for the experienced driver who does not only wish to determine the individual lowering of his vehicle, but also wishes to carry out setup adjustments. The adjustable rebound damper allows adjusting the pitch and roll behaviour of the vehicle and therefore the driving pleasure can be adapted to the own requirements.
FEATURES
- Damping technology with individually adjustable rebound
- Inox-line stainless steel technology at no extra charge
- Individually height adjustable
- German TUEV-tested lowering range
- High-quality components for long life
- Comprehensive documentation for ease of useLowering
- Infinitely adjustable rebound damping
Lowering
Front: 0.8" to 1.8"
Rear: 1.2" to 2.6"

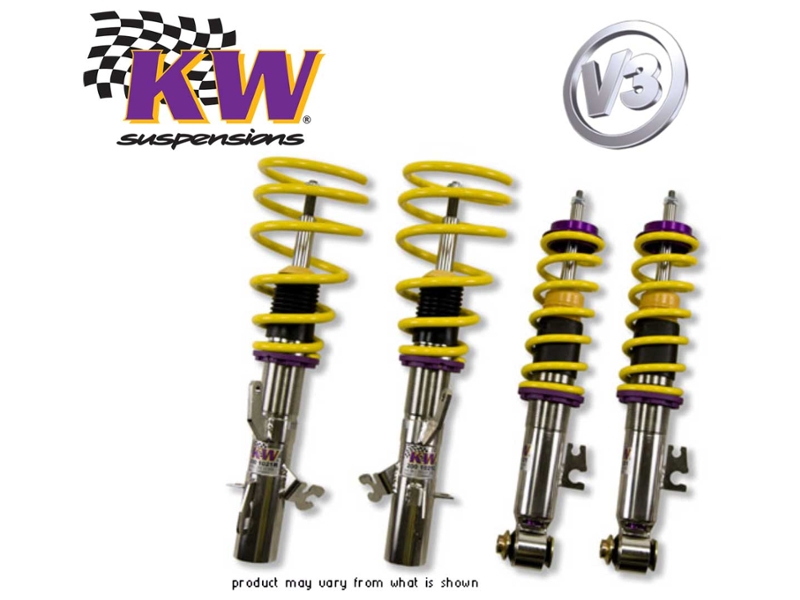

KW Variant 3
Race technology for the road with adjustable compression and rebound dampening
State-of-the-art technology from motor sports for more performance on the road. The separate and independently adjustable rebound- and compression damping allows for an individual suspension setup for different uses and preferences. The unique patented system with its two-stage valves allows a rebound damping adjustment (comfort) and a compression adjustment (driving dynamics) in the low-speed range while the high-speed range which controls the driving safety, is fixed.
FEATURES
- Independently adjustable damping technology -rebound and compression damping
- Inox-line stainless steel technology at no extra charge
- Individually height adjustable
- German TUEV-tested lowering range
- High-quality components for long life
- Comprehensive documentation for ease of use
- Infinitely adjustable rebound damping
- 14- level adjustable compression damping
- Unique, independently functioning damping power adjustment
Lowering
Front: 0.8" to 1.8"
Rear: 1.2" to 2.6"
Compression and rebound adjustment
As far it is vehicle-specifically possible, the rebound damping is adjusted by a spindle at the end of the piston rod. Mainly, the traction phase (rebound) controls car body vibrations and also influences handling and comfort in the low-speed damping range. By using the traction phase adjustment, the vehicle can be adapted to the requirements of the driver. Moreover the driving behavior can be regulated from comfortably rolling to sporty and tense with improved road holding characteristics.
The compression phase adjustment is carried out at the lower end of the shock absorber via our patented multi-purpose valve. The large number of pre-set parameters of this valve allows for a wide range of adjustment for individual use. The unique low-speed compression adjustment significantly distinguishes this technology from any other. In this compression range, the driving behavior of the vehicle is drastically influenced. An increase of the damping power supports the vehicle already during compression and therefore avoids rolling and pitching. The directional stability is significantly improved.
NOTE:
Lowering the ride height will add negative camber to the rear. For best results, you should add adjustable rear control arms to correct the rear camber after lowering your car. If you choose not to correct the rear camber, your rear tires will wear unevenly. Install the rear adjustable control arms and have the alignment corrected.
Click here for Rear Adjustable Control Arms
Click here for 2007+ Gen 2 Mini Cooper KW Coilover Kits
Click here for 2002-2006 Gen 1 Mini Cooper KW Coilover Kits
See the Mini Cooper Shock and Struts Application Guide for a listing of all non-factory shocks and struts.
