Fits the follwoing Cooper S models with the N18 engine:
2011-2013 R56 MINI Cooper S Hatchback
2011-2014 R55 MINI Cooper S Clubman
2011-2015 R57 MINI Cooper S Convertible
2011-2016 R60 MINI Cooper S Countryman
2012-2015 R58 MINI Cooper S Coupe
2012-2015 R59 MINI Cooper S Roadster
2013-2016 R61 MINI Cooper S Paceman

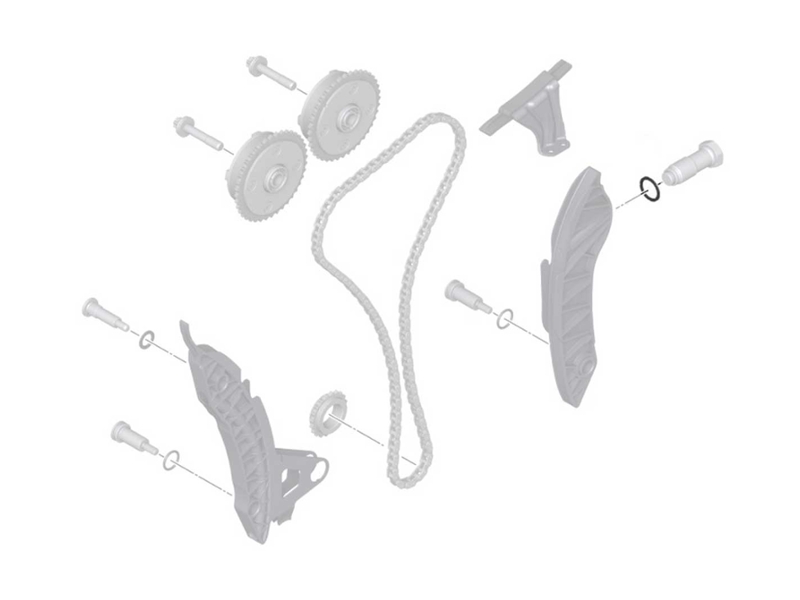

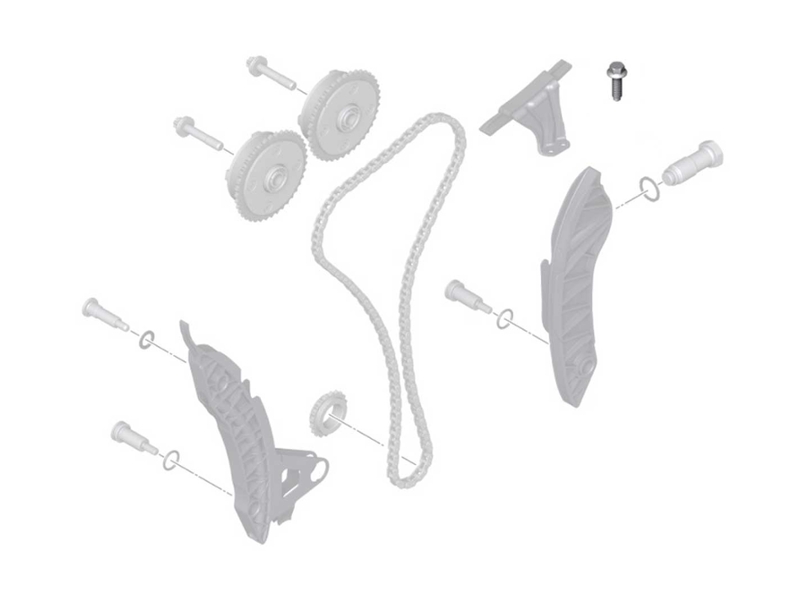

Choose from:
[1] Timing Chain
[2] Guide Rail
[3] Chain Tensioner Guide

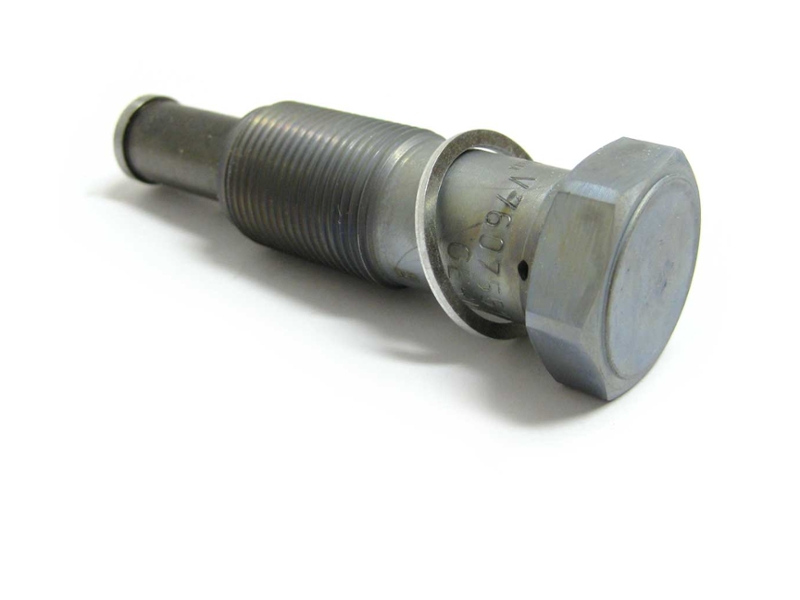

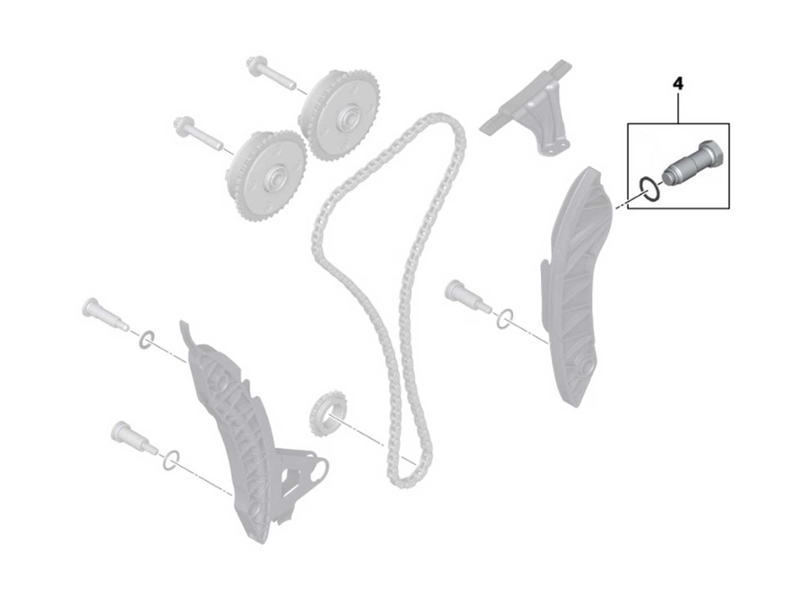

[4] Chain Tensioner Bolt/Plunger

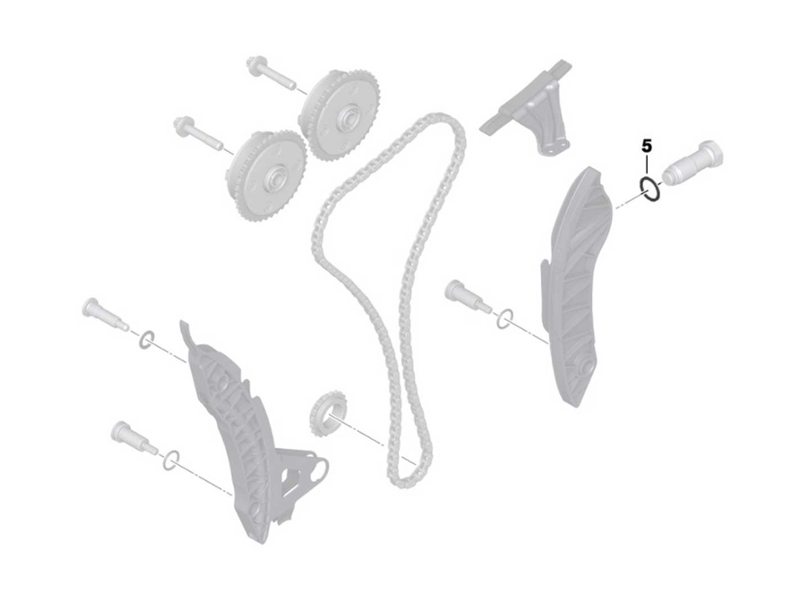

[5] Gasket for Bolt/Plunger
[6] Timing Chain Lower Sprocket

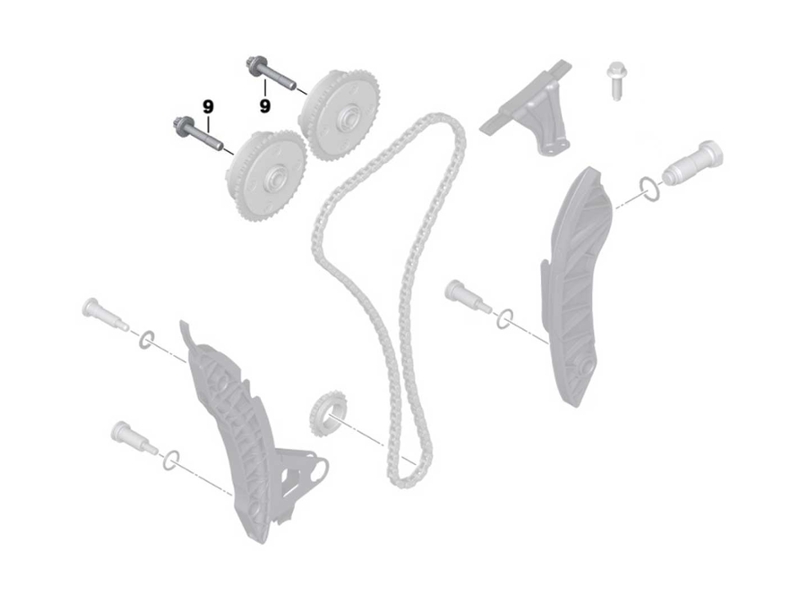

[9] Bolt for Adjustable Camshaft Sprocket

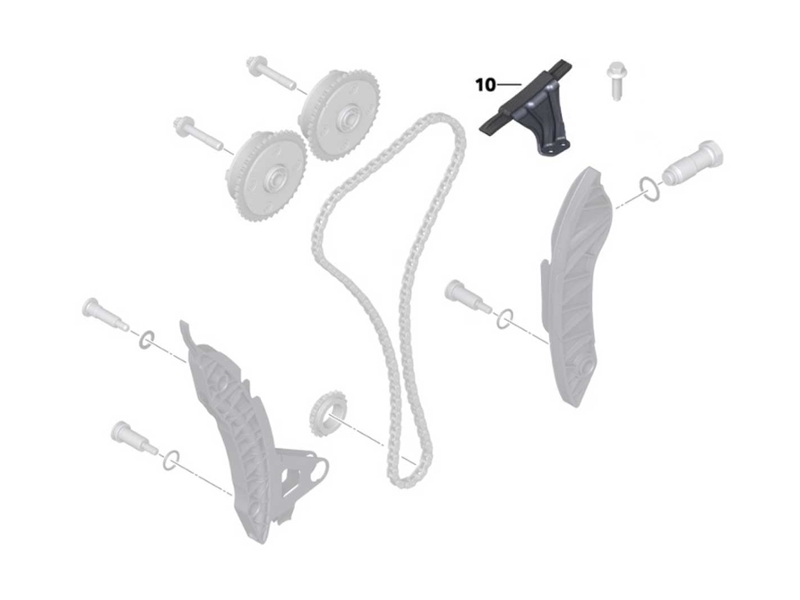

[10] Slide Rail for Timing Chain
[11] Hex Bolt for Slide Rail

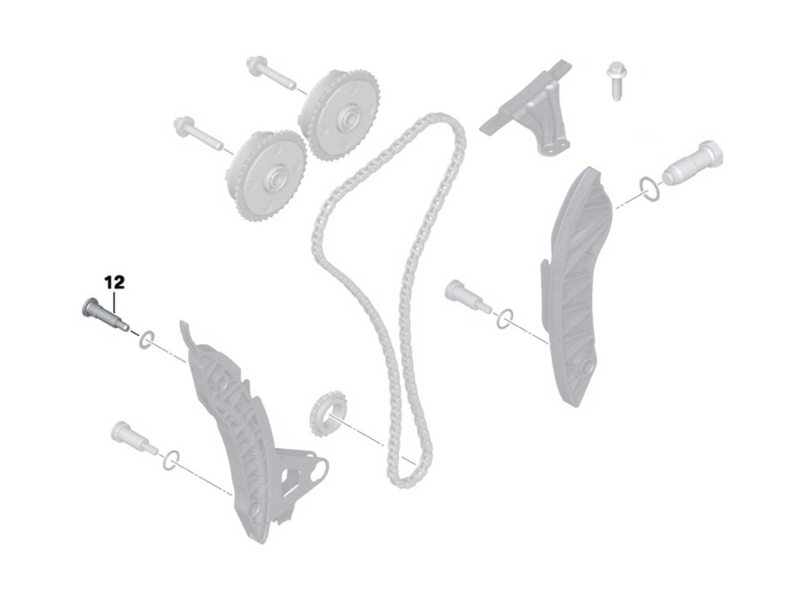

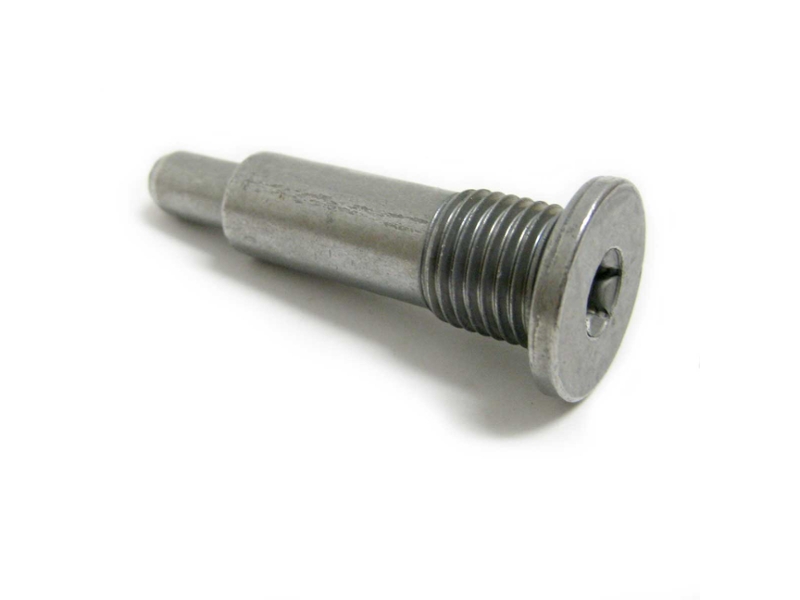

[12] Bearing Bolt for upper Guide Rail

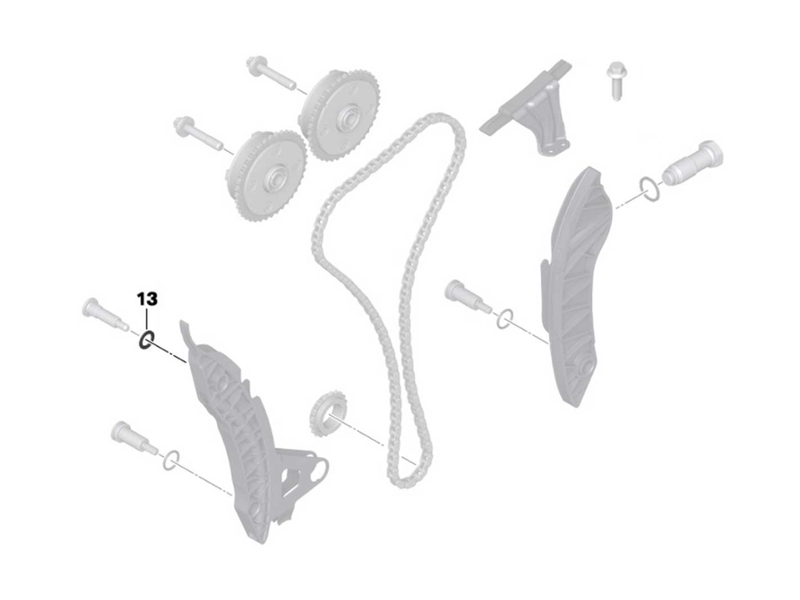

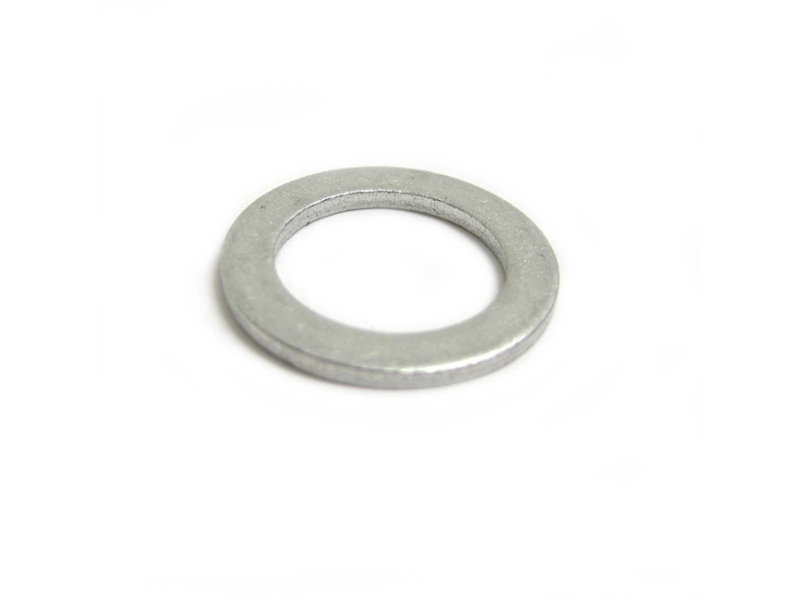

[13] Gasket for upper Guide Rail Bolt

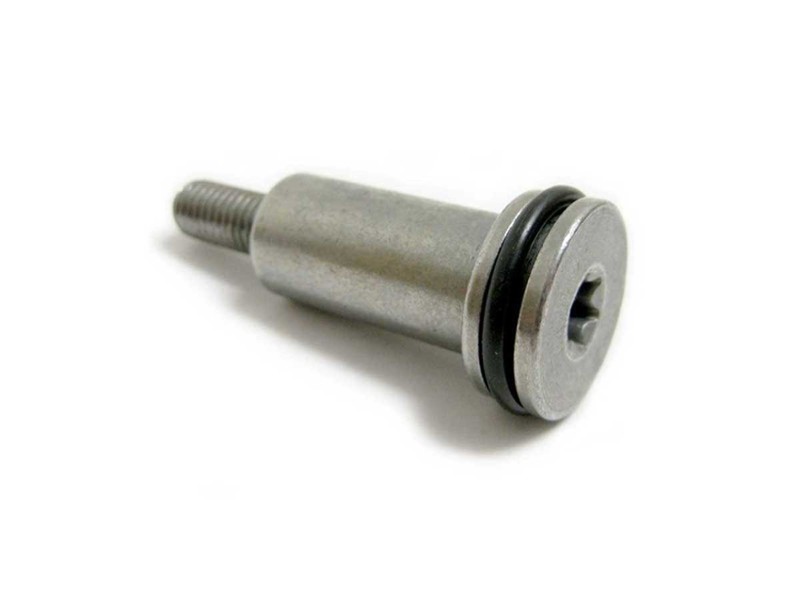

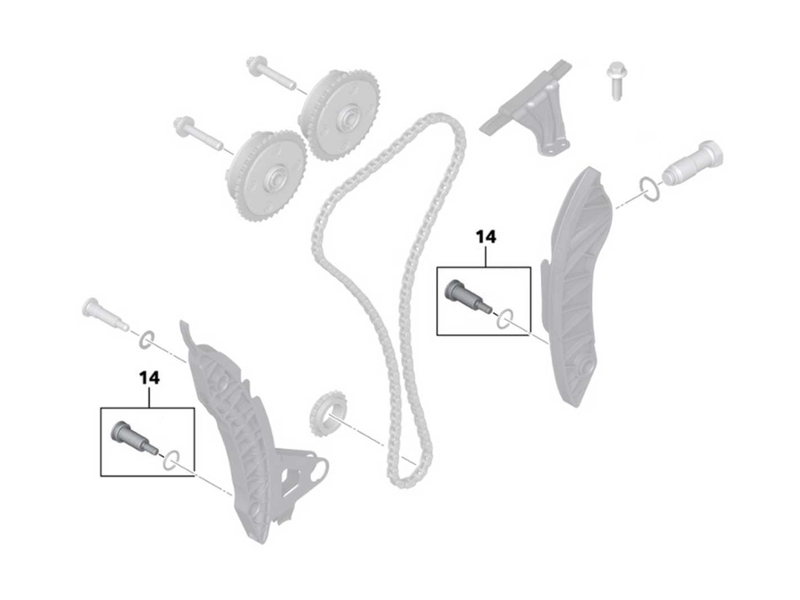

[14] Bearing Bolt for lower Guide Rail and Tensioner (2 required)

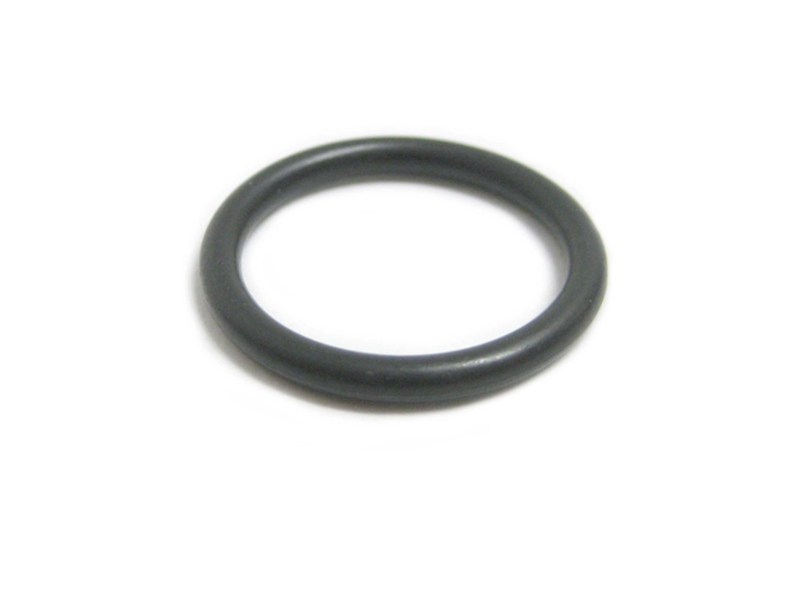

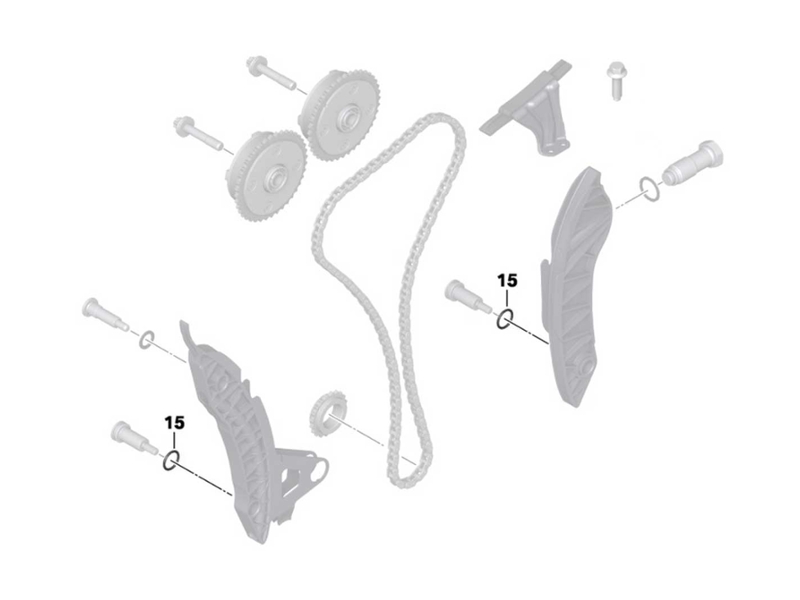

[15] O-Ring for lower Bearing Bolt (2 required)
For a complete Timing Chain Repair Kit, see G2NMK3300-P.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
Tightening Torques
| Item | Engine | Thread | Tightening Specifications | Torque |
| Valve cover to cylinder head | N12, N14, N16, N18 | M6 x 30 | 10 Nm | |
| Guide rail to crankcase | N12, N14, N16, N18 | M8 x 1.25 | Replace sealing ring | 24 Nm |
| Guide rail to cylinder head | N12, N14, N16, N18 | M14 x 1.5 | Replace sealing ring | 20 Nm |
| Chain tensioner to cylinder head | N12, N14, N16, N18 | M22 x 1.5 | Do not retighten the chain tensioner | 80 Nm |
| Replace sealing ring | ||||
| VANOS to inlet and exhaust camshafts | N12, N16, N18 | M10 x 52 | Replace screw | |
| Jointing torque | 20 Nm | |||
| Angle of rotation | 180° | |||
| VANOS to inlet camshaft | N14 | M10 x 52 | Replace screw | |
| Jointing torque | 20 Nm | |||
| Angle of rotation | 180° | |||
| Sprocket wheel to exhaust camshafts | N14 | M10 x 30 | Replace screw | |
| Jointing torque | 20 Nm | |||
| Angle of rotation | 90° | |||
| Torsion damper (hub) to crankshaft | N12, N14, N16, N18 | M8 x 16 | 28 Nm |
MINI COOPER S 2011-2014 TIMING CHAIN PARTS OEM - R55/56/57/58/59/6
MINI COOPER S 2011-2014 TIMING CHAIN PARTS OEM - R55/56/57/58/59/6
Select a "Item" from below.
Fits the follwoing Cooper S models with the N18 engine:
2011-2013 R56 MINI Cooper S Hatchback
2011-2014 R55 MINI Cooper S Clubman
2011-2015 R57 MINI Cooper S Convertible
2011-2016 R60 MINI Cooper S Countryman
2012-2015 R58 MINI Cooper S Coupe
2012-2015 R59 MINI Cooper S Roadster
2013-2016 R61 MINI Cooper S Paceman
Choose from:
[1] Timing Chain
[2] Guide Rail
[3] Chain Tensioner Guide
[4] Chain Tensioner Bolt/Plunger
[5] Gasket for Bolt/Plunger
[6] Timing Chain Lower Sprocket
[9] Bolt for Adjustable Camshaft Sprocket
[10] Slide Rail for Timing Chain
[11] Hex Bolt for Slide Rail
[12] Bearing Bolt for upper Guide Rail
[13] Gasket for upper Guide Rail Bolt
[14] Bearing Bolt for lower Guide Rail and Tensioner (2 required)
[15] O-Ring for lower Bearing Bolt (2 required)
For a complete Timing Chain Repair Kit, see G2NMK3300-P.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
Tightening Torques
| Item | Engine | Thread | Tightening Specifications | Torque |
| Valve cover to cylinder head | N12, N14, N16, N18 | M6 x 30 | 10 Nm | |
| Guide rail to crankcase | N12, N14, N16, N18 | M8 x 1.25 | Replace sealing ring | 24 Nm |
| Guide rail to cylinder head | N12, N14, N16, N18 | M14 x 1.5 | Replace sealing ring | 20 Nm |
| Chain tensioner to cylinder head | N12, N14, N16, N18 | M22 x 1.5 | Do not retighten the chain tensioner | 80 Nm |
| Replace sealing ring | ||||
| VANOS to inlet and exhaust camshafts | N12, N16, N18 | M10 x 52 | Replace screw | |
| Jointing torque | 20 Nm | |||
| Angle of rotation | 180° | |||
| VANOS to inlet camshaft | N14 | M10 x 52 | Replace screw | |
| Jointing torque | 20 Nm | |||
| Angle of rotation | 180° | |||
| Sprocket wheel to exhaust camshafts | N14 | M10 x 30 | Replace screw | |
| Jointing torque | 20 Nm | |||
| Angle of rotation | 90° | |||
| Torsion damper (hub) to crankshaft | N12, N14, N16, N18 | M8 x 16 | 28 Nm |
Fits the follwoing Cooper S models with the N18 engine:
2011-2013 R56 Cooper S Hatchback
2011-2014 R55 Cooper S Clubman
2011-2015 R57 Cooper S Convertible
2012-2015 R58 Cooper S Coupe
2012-2015 R59 Cooper S Roadster
2011-2016 R60 Cooper S Countryman
2013-2016 R61 Cooper S Paceman
Item: [3] Chain Tensioner Guide
For a complete Timing Chain Repair Kit, see G2NMK3302.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Guide N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
Fits the follwoing Cooper S models with the N18 engine:
2011-2013 R56 Cooper S Hatchback
2011-2014 R55 Cooper S Clubman
2011-2015 R57 Cooper S Convertible
2012-2015 R58 Cooper S Coupe
2012-2015 R59 Cooper S Roadster
2011-2016 R60 Cooper S Countryman
2013-2016 R61 Cooper S Paceman
Item: [3] Chain Tensioner Guide
For a complete Timing Chain Repair Kit, see G2NMK3302.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
Fits the follwoing Cooper S models with the N18 engine:
2011-2013 R56 Cooper S Hatchback
2011-2014 R55 Cooper S Clubman
2011-2015 R57 Cooper S Convertible
2012-2015 R58 Cooper S Coupe
2012-2015 R59 Cooper S Roadster
2011-2016 R60 Cooper S Countryman
2013-2016 R61 Cooper S Paceman

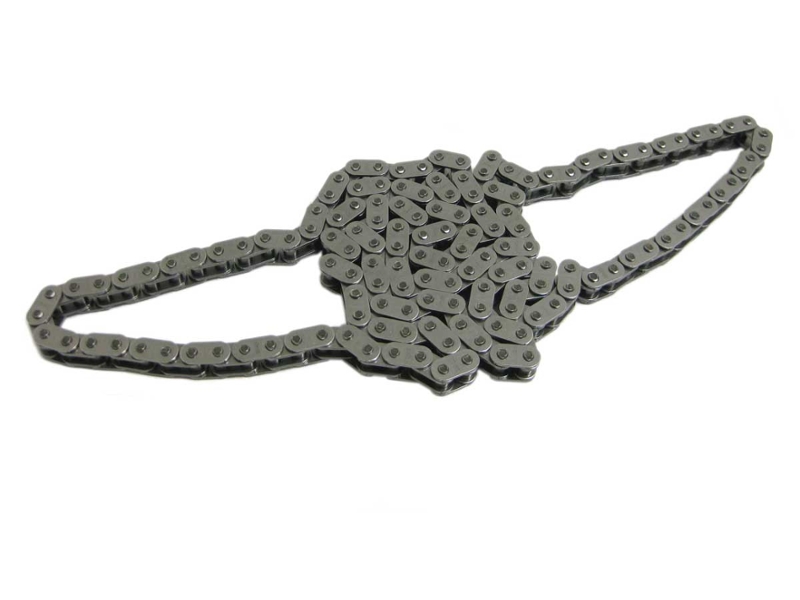

Item: [1] Timing Chain
For a complete Timing Chain Repair Kit, see G2NMK3302.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2
OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2
OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2OEM Timing Chain N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2012-2014 Gen2
Fits the follwoing Cooper S models with the N18 engine:
2011-2013 R56 Cooper S Hatchback
2011-2014 R55 Cooper S Clubman
2011-2015 R57 Cooper S Convertible
2012-2015 R58 Cooper S Coupe
2012-2015 R59 Cooper S Roadster
2011-2016 R60 Cooper S Countryman
2013-2016 R61 Cooper S Paceman
Item: [1] Timing Chain
For a complete Timing Chain Repair Kit, see G2NMK3302.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
Fits the following Cooper S models with the N18 engine:
2011-2013 R56 Cooper S Hatchback
2011-2014 R55 Cooper S Clubman
2011-2015 R57 Cooper S Convertible
2012-2015 R58 Cooper S Coupe
2012-2015 R59 Cooper S Roadster
2011-2016 R60 Cooper S Countryman
2013-2016 R61 Cooper S Paceman
Item: [2] Guide Rail
For a complete Timing Chain Repair Kit, see G2NMK3302.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2
OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2
OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2OEM Timing Chain Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 2011-2014 Gen2
Fits the following Cooper S models with the N18 engine:
2011-2013 R56 Cooper S Hatchback
2011-2014 R55 Cooper S Clubman
2011-2015 R57 Cooper S Convertible
2012-2015 R58 Cooper S Coupe
2012-2015 R59 Cooper S Roadster
2011-2016 R60 Cooper S Countryman
2013-2016 R61 Cooper S Paceman
Item: [2] Guide Rail
For a complete Timing Chain Repair Kit, see G2NMK3302.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
Fits the follwoing Cooper S models with the N18 engine:
2011-2013 R56 Cooper S Hatchback
2011-2014 R55 Cooper S Clubman
2011-2015 R57 Cooper S Convertible
2012-2015 R58 Cooper S Coupe
2012-2015 R59 Cooper S Roadster
2011-2016 R60 Cooper S Countryman
2013-2016 R61 Cooper S Paceman

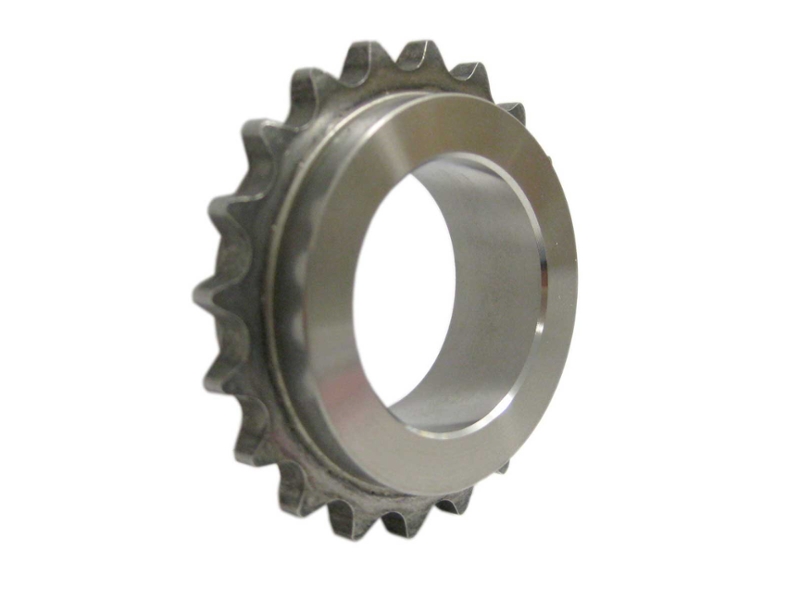

Item: [6] Timing Chain Lower Sprocket
For a complete Timing Chain Repair Kit, see G2NMK3302.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Replacement Lower Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
Fits the follwoing Cooper S models with the N18 engine:
2011-2013 R56 Cooper S Hatchback
2011-2014 R55 Cooper S Clubman
2011-2015 R57 Cooper S Convertible
2012-2015 R58 Cooper S Coupe
2012-2015 R59 Cooper S Roadster
2011-2016 R60 Cooper S Countryman
2013-2016 R61 Cooper S Paceman
Item: [6] Timing Chain Lower Sprocket
For a complete Timing Chain Repair Kit, see G2NMK3302.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
Fits the follwoing Cooper S models with the N18 engine:
2011-2013 R56 Cooper S Hatchback
2011-2014 R55 Cooper S Clubman
2011-2015 R57 Cooper S Convertible
2012-2015 R58 Cooper S Coupe
2012-2015 R59 Cooper S Roadster
2011-2016 R60 Cooper S Countryman
2013-2016 R61 Cooper S Paceman
Item: [10] Slide Rail for Timing Chain
For a complete Timing Chain Repair Kit, see G2NMK3302.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
OEM Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
OEM Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
OEM Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
Fits the follwoing Cooper S models with the N18 engine:
2011-2013 R56 Cooper S Hatchback
2011-2014 R55 Cooper S Clubman
2011-2015 R57 Cooper S Convertible
2012-2015 R58 Cooper S Coupe
2012-2015 R59 Cooper S Roadster
2011-2016 R60 Cooper S Countryman
2013-2016 R61 Cooper S Paceman
Item: [10] Slide Rail for Timing Chain
For a complete Timing Chain Repair Kit, see G2NMK3302.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
Fits the following Cooper S models with the N18 engine:
2011-2013 R56 Cooper S Hatchback
2011-2014 R55 Cooper S Clubman
2011-2015 R57 Cooper S Convertible
2012-2015 R58 Cooper S Coupe
2012-2015 R59 Cooper S Roadster
2011-2016 R60 Cooper S Countryman
2013-2016 R61 Cooper S Paceman
Item: [13] Gasket for upper Guide Rail Bolt
For a complete Timing Chain Repair Kit, see G2NMK3302.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
OEM Gasket Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
OEM Gasket Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
OEM Gasket Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
Fits the following Cooper S models with the N18 engine:
2011-2013 R56 Cooper S Hatchback
2011-2014 R55 Cooper S Clubman
2011-2015 R57 Cooper S Convertible
2012-2015 R58 Cooper S Coupe
2012-2015 R59 Cooper S Roadster
2011-2016 R60 Cooper S Countryman
2013-2016 R61 Cooper S Paceman
Item: [13] Gasket for upper Guide Rail Bolt
For a complete Timing Chain Repair Kit, see G2NMK3302.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
Fits the following Cooper S models with the N18 engine:
2011-2013 R56 Cooper S Hatchback
2011-2014 R55 Cooper S Clubman
2011-2015 R57 Cooper S Convertible
2012-2015 R58 Cooper S Coupe
2012-2015 R59 Cooper S Roadster
2011-2016 R60 Cooper S Countryman
2013-2016 R61 Cooper S Paceman
Item: [12] Bearing Bolt for upper Guide Rail
For a complete Timing Chain Repair Kit, see G2NMK3302.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
OEM Bearing Bolt for Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Bearing Bolt for Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Bearing Bolt for Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Bearing Bolt for Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Bearing Bolt for Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Bearing Bolt for Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Bearing Bolt for Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
OEM Bearing Bolt for Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Bearing Bolt for Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Bearing Bolt for Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Bearing Bolt for Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Bearing Bolt for Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Bearing Bolt for Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Bearing Bolt for Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
OEM Bearing Bolt for Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Bearing Bolt for Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Bearing Bolt for Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Bearing Bolt for Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Bearing Bolt for Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Bearing Bolt for Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Bearing Bolt for Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
Fits the following Cooper S models with the N18 engine:
2011-2013 R56 Cooper S Hatchback
2011-2014 R55 Cooper S Clubman
2011-2015 R57 Cooper S Convertible
2012-2015 R58 Cooper S Coupe
2012-2015 R59 Cooper S Roadster
2011-2016 R60 Cooper S Countryman
2013-2016 R61 Cooper S Paceman
Item: [12] Bearing Bolt for upper Guide Rail
For a complete Timing Chain Repair Kit, see G2NMK3302.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
Fits the follwoing Cooper S models with the N18 engine:
2011-2013 R56 Cooper S Hatchback
2011-2014 R55 Cooper S Clubman
2011-2015 R57 Cooper S Convertible
2012-2015 R58 Cooper S Coupe
2012-2015 R59 Cooper S Roadster
2011-2016 R60 Cooper S Countryman
2013-2016 R61 Cooper S Paceman
Item: [15] Gasket O-Ring for Bearing Bolt on lower Guide Rail and Tensioner (2 required)
For a complete Timing Chain Repair Kit, see G2NMK3302.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
OEM Gasket O-Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket O-Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket O-Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket O-Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket O-Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket O-Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
OEM Gasket O-Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket O-Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket O-Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket O-Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket O-Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket O-Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
OEM Gasket O-Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket O-Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket O-Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket O-Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket O-Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Gasket O-Ring for Bearing Bolt MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
Fits the follwoing Cooper S models with the N18 engine:
2011-2013 R56 Cooper S Hatchback
2011-2014 R55 Cooper S Clubman
2011-2015 R57 Cooper S Convertible
2012-2015 R58 Cooper S Coupe
2012-2015 R59 Cooper S Roadster
2011-2016 R60 Cooper S Countryman
2013-2016 R61 Cooper S Paceman
Item: [15] Gasket O-Ring for Bearing Bolt on lower Guide Rail and Tensioner (2 required)
For a complete Timing Chain Repair Kit, see G2NMK3302.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
Fits the follwoing Cooper S models with the N18 engine:
2011-2013 R56 Cooper S Hatchback
2011-2014 R55 Cooper S Clubman
2011-2015 R57 Cooper S Convertible
2012-2015 R58 Cooper S Coupe
2012-2015 R59 Cooper S Roadster
2011-2016 R60 Cooper S Countryman
2013-2016 R61 Cooper S Paceman
Item: [9] Bolt for Adjustable Camshaft Sprocket
For a complete Timing Chain Repair Kit, see G2NMK3302.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
OEM Torx Bolt for Adjustable Cam Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Torx Bolt for Adjustable Cam Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Torx Bolt for Adjustable Cam Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Torx Bolt for Adjustable Cam Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Torx Bolt for Adjustable Cam Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
OEM Torx Bolt for Adjustable Cam Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Torx Bolt for Adjustable Cam Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Torx Bolt for Adjustable Cam Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Torx Bolt for Adjustable Cam Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Torx Bolt for Adjustable Cam Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
OEM Torx Bolt for Adjustable Cam Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Torx Bolt for Adjustable Cam Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Torx Bolt for Adjustable Cam Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Torx Bolt for Adjustable Cam Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Torx Bolt for Adjustable Cam Sprocket N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
Fits the follwoing Cooper S models with the N18 engine:
2011-2013 R56 Cooper S Hatchback
2011-2014 R55 Cooper S Clubman
2011-2015 R57 Cooper S Convertible
2012-2015 R58 Cooper S Coupe
2012-2015 R59 Cooper S Roadster
2011-2016 R60 Cooper S Countryman
2013-2016 R61 Cooper S Paceman
Item: [9] Bolt for Adjustable Camshaft Sprocket
For a complete Timing Chain Repair Kit, see G2NMK3302.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
Fits the follwoing Cooper S models with the N18 engine:
2011-2013 R56 Cooper S Hatchback
2011-2014 R55 Cooper S Clubman
2011-2015 R57 Cooper S Convertible
2012-2015 R58 Cooper S Coupe
2012-2015 R59 Cooper S Roadster
2011-2016 R60 Cooper S Countryman
2013-2016 R61 Cooper S Paceman
Item: [11] Hex Bolt for Slide Rail
For a complete Timing Chain Repair Kit, see G2NMK3302.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
OEM Hex Bolt for Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Hex Bolt for Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Hex Bolt for Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Hex Bolt for Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
OEM Hex Bolt for Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Hex Bolt for Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Hex Bolt for Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Hex Bolt for Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
OEM Hex Bolt for Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Hex Bolt for Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Hex Bolt for Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Hex Bolt for Timing Chain Slide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
Fits the follwoing Cooper S models with the N18 engine:
2011-2013 R56 Cooper S Hatchback
2011-2014 R55 Cooper S Clubman
2011-2015 R57 Cooper S Convertible
2012-2015 R58 Cooper S Coupe
2012-2015 R59 Cooper S Roadster
2011-2016 R60 Cooper S Countryman
2013-2016 R61 Cooper S Paceman
Item: [11] Hex Bolt for Slide Rail
For a complete Timing Chain Repair Kit, see G2NMK3302.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
Fits the follwoing Cooper S models with the N18 engine:
2011-2013 R56 Cooper S Hatchback
2011-2014 R55 Cooper S Clubman
2011-2015 R57 Cooper S Convertible
2012-2015 R58 Cooper S Coupe
2012-2015 R59 Cooper S Roadster
2011-2016 R60 Cooper S Countryman
2013-2016 R61 Cooper S Paceman
[14] Bearing Bolt for lower Guide Rail and Tensioner (2 required)
For a complete Timing Chain Repair Kit, see G2NMK3302.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
OEM Bearing Bolt Lower Tensioner & Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Bearing Bolt Lower Tensioner & Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Bearing Bolt Lower Tensioner & Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
OEM Bearing Bolt Lower Tensioner & Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Bearing Bolt Lower Tensioner & Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Bearing Bolt Lower Tensioner & Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
OEM Bearing Bolt Lower Tensioner & Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Bearing Bolt Lower Tensioner & Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Bearing Bolt Lower Tensioner & Guide Rail N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
Fits the follwoing Cooper S models with the N18 engine:
2011-2013 R56 Cooper S Hatchback
2011-2014 R55 Cooper S Clubman
2011-2015 R57 Cooper S Convertible
2012-2015 R58 Cooper S Coupe
2012-2015 R59 Cooper S Roadster
2011-2016 R60 Cooper S Countryman
2013-2016 R61 Cooper S Paceman
[14] Bearing Bolt for lower Guide Rail and Tensioner (2 required)
For a complete Timing Chain Repair Kit, see G2NMK3302.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
Fits the follwoing Cooper S models with the N18 engine:
2011-2013 R56 Cooper S Hatchback
2011-2014 R55 Cooper S Clubman
2011-2015 R57 Cooper S Convertible
2012-2015 R58 Cooper S Coupe
2012-2015 R59 Cooper S Roadster
2011-2016 R60 Cooper S Countryman
2013-2016 R61 Cooper S Paceman
For Cooper non-S with the N12 or N16 engines, see MINI Cooper Timing Chain Tensioner N12 N16 OEM Gen2
For Cooper S with the N14 engine, see MINI Cooper Timing Chain Tensioner N14 OEM Gen2
Item: [4] Tensioner Bolt / Plunger
For a complete Timing Chain Repair Kit, see G2NMK3302.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
If your MINI is experiencing the 'cold start rattle', see our article MINI Cooper S Cold Start Rattle Gen2.
OEM Timing Chain Tensioner Bolt/Plunger N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Bolt/Plunger N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
OEM Timing Chain Tensioner Bolt/Plunger N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Bolt/Plunger N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
OEM Timing Chain Tensioner Bolt/Plunger N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2OEM Timing Chain Tensioner Bolt/Plunger N18 engine MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
Fits the follwoing Cooper S models with the N18 engine:
2011-2013 R56 Cooper S Hatchback
2011-2014 R55 Cooper S Clubman
2011-2015 R57 Cooper S Convertible
2012-2015 R58 Cooper S Coupe
2012-2015 R59 Cooper S Roadster
2011-2016 R60 Cooper S Countryman
2013-2016 R61 Cooper S Paceman
For Cooper non-S with the N12 or N16 engines, see MINI Cooper Timing Chain Tensioner N12 N16 OEM Gen2
For Cooper S with the N14 engine, see MINI Cooper Timing Chain Tensioner N14 OEM Gen2
Item: [4] Tensioner Bolt / Plunger
For a complete Timing Chain Repair Kit, see G2NMK3302.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
If your MINI is experiencing the 'cold start rattle', see our article MINI Cooper S Cold Start Rattle Gen2.
Fits the following Cooper S models with the N18 engine:
2011-2013 R56 Cooper S Hatchback
2011-2014 R55 Cooper S Clubman
2011-2015 R57 Cooper S Convertible
2012-2015 R58 Cooper S Coupe
2012-2015 R59 Cooper S Roadster
2011-2016 R60 Cooper S Countryman
2013-2016 R61 Cooper S Paceman
Item: [5] Gasket for Tensioner Bolt/Plunger
For a complete Timing Chain Repair Kit, see G2NMK3302.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
OEM Timing Chain Tensioner Bolt/Plunger Gasket N18 MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
OEM Timing Chain Tensioner Bolt/Plunger Gasket N18 MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
OEM Timing Chain Tensioner Bolt/Plunger Gasket N18 MINI Cooper S R55 R56 R57 R58 R59 R60 R61 Gen2
Fits the following Cooper S models with the N18 engine:
2011-2013 R56 Cooper S Hatchback
2011-2014 R55 Cooper S Clubman
2011-2015 R57 Cooper S Convertible
2012-2015 R58 Cooper S Coupe
2012-2015 R59 Cooper S Roadster
2011-2016 R60 Cooper S Countryman
2013-2016 R61 Cooper S Paceman
Item: [5] Gasket for Tensioner Bolt/Plunger
For a complete Timing Chain Repair Kit, see G2NMK3302.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
Fits the follwoing Cooper S models with the N18 engine:
2011-2013 R56 MINI Cooper S Hatchback
2011-2014 R55 MINI Cooper S Clubman
2011-2015 R57 MINI Cooper S Convertible
2011-2016 R60 MINI Cooper S Countryman
2012-2015 R58 MINI Cooper S Coupe
2012-2015 R59 MINI Cooper S Roadster
2013-2016 R61 MINI Cooper S Paceman
Choose from:
[1] Timing Chain
[2] Guide Rail
[3] Chain Tensioner Guide
[4] Chain Tensioner Bolt/Plunger
[5] Gasket for Bolt/Plunger
[6] Timing Chain Lower Sprocket
[9] Bolt for Adjustable Camshaft Sprocket
[10] Slide Rail for Timing Chain
[11] Hex Bolt for Slide Rail
[12] Bearing Bolt for upper Guide Rail
[13] Gasket for upper Guide Rail Bolt
[14] Bearing Bolt for lower Guide Rail and Tensioner (2 required)
[15] O-Ring for lower Bearing Bolt (2 required)
For a complete Timing Chain Repair Kit, see G2NMK3300-P.
For the Valve Cover Gasket Set, see G2NME3298.
For the Vibration Damper (Crank Pulley) Bolt, see G2NME3317.
MINI FACTORY TIMING CHAIN PARTS APPLICATION GUIDE
| GEN1 | YEARS | PARTS | KITS |
|
Hardtop |
2002-2006 | NME9602-P | NMK9600-P |
|
Convertible |
2005-2008 | ||
| GEN2 | YEARS | PARTS | KITS |
| Cooper non-S | 2007-2016 | G2NME3321-P | G2NMK3300-P |
| Cooper S | 2007-2010 | G2NME3301-P | |
| 2011-2016 | G2NME3358-P | ||
Tightening Torques
| Item | Engine | Thread | Tightening Specifications | Torque |
| Valve cover to cylinder head | N12, N14, N16, N18 | M6 x 30 | 10 Nm | |
| Guide rail to crankcase | N12, N14, N16, N18 | M8 x 1.25 | Replace sealing ring | 24 Nm |
| Guide rail to cylinder head | N12, N14, N16, N18 | M14 x 1.5 | Replace sealing ring | 20 Nm |
| Chain tensioner to cylinder head | N12, N14, N16, N18 | M22 x 1.5 | Do not retighten the chain tensioner | 80 Nm |
| Replace sealing ring | ||||
| VANOS to inlet and exhaust camshafts | N12, N16, N18 | M10 x 52 | Replace screw | |
| Jointing torque | 20 Nm | |||
| Angle of rotation | 180° | |||
| VANOS to inlet camshaft | N14 | M10 x 52 | Replace screw | |
| Jointing torque | 20 Nm | |||
| Angle of rotation | 180° | |||
| Sprocket wheel to exhaust camshafts | N14 | M10 x 30 | Replace screw | |
| Jointing torque | 20 Nm | |||
| Angle of rotation | 90° | |||
| Torsion damper (hub) to crankshaft | N12, N14, N16, N18 | M8 x 16 | 28 Nm |
-
G2NME3366 -
G2NME3370
-
G2NME3372
-
G2NME3369
-
G2NME3361
-
G2NME3371
-
G2NME3360
-
G2NME3359
-
G2NME3363
-
G2NME3367
Loading...
- Home
- Related Websites
- Products
- Information
- Social
- Visit us on:
-
Mini Mania
870 Gold Flat Rd.
Nevada City, CA 95959 USAOrders: 800.946-2642
Technical: 530.470.8300
Fax: 530.470.8388
Your Login Failed.
Your E-Mail and/or password are incorrect. Please try again.
Passwords are case-sentive.
If you continue to have problems click on the Help Icon for additional options.
Login with your E-Mail Address. If you would like your login information reset, click on the button below to request your login information to be reset.
